cnMatrix Ethernet Switches

Improve network performance while reducing the time and cost of provisioning and management

cnMatrix switches simplify network deployment and operation. When deployed with Cambium Networks access points and the cnMaestro management system, network operators have an affordable, feature-rich, high-quality unified wired/wireless enterprise-grade network. Optimize network performance and deliver exceptional end user experiences while maintaining a lean IT staff. Choose the indoor or ruggedized switch that fits your application.

Policy Based Automation (PBA) provides powerful and unique functionality in cnMatrix by simplifying configuration and installation through automation of moves, adds and changes.
• Zero-Touch Simplicity: Eliminate port-by-port configuration and the need to worry about what port to connect a device.
• Automated Security: Programmable device profiling, network segmentation and policy enforcement with automatic cleanup upon device disconnects.
• Error-free operations: Reduce time, effort and human mistakes by eliminating manual configuration.

Get more details on how to automate the configuration process in the Policy Based Automation solution paper.

cnMatrix Enterprise Switch Highlights

Policy Based Automation

Ability to profile devices and automatically configure the switch providing a zero-touch experience even when deploying, disconnecting or moving network devices

Auto Device Segmentation

Provides a secure environment for critical network resources by automatically placing devices in the appropriate network segment based on their profile

Auto Policy Wipe

Improves security by automatically removing all associated dynamic configuration when a device disconnects

Wireless Aware

Enables policy automation, easy monitoring, and troubleshooting of the unified wired /wireless network

Site Survivability

Uninterrupted operation even when connectivity to the cloud is lost

Cloud Management

cnMaestro’s free cloud-based management platform provides rich lifecycle management, configuration and control, and security services; which can also be made available with on-premise deployment options

EX2000 Series Products

cnMatrix EX2010, enterprise, switch, aggregation

cnMatrix EX2010 Switch

20 Gbps throughput, 8 10/100/1000 ports, 2 SFP Uplink ports, optional rack mount kit

enterprise, switch, aggregation, EX2010-P

cnMatrix EX2010-P Switch

20 Gbps throughput, 8 PoE enabled ports, 8 10/100/1000 ports, 2 SFP Uplink ports, optional rack mount kit

cnMatrix EX2016M-P Switch

86 Gbps throughput, 2 SFP+ Uplink ports, 6 100M/2.5G Ports, 8 10/100/1000 Mbps Ports, 14 PoE Enabled Ports (802.3af/at/bt – 8x30W, 6x60W)

enterprise, switch, aggregation

cnMatrix EX2028 Switch

128 Gbps throughput, 24 10/100/1000 ports, 4 SFP+ Uplink ports

cnMatrix EX2028-P, enterprise, switch, aggregation

cnMatrix EX2028-P Switch

128 Gbps throughput, 24 PoE enabled ports, 24 10/100/1000 ports, 4 SFP+ Uplink ports

cnMatrix EX2052 Switch

176 Gbps throughput, 4 SFP+ Uplink ports, 2 Internal Fans

cnMatrix EX2052-P Switch

176 Gbps throughput, 48 10/100/1000 Ports, 120 Forwarding Rate in Mpps (64 Byte Packets)

cnMatrix EX2052R-P Switch

176 Gbps throughputs, 48 10/100/1000 Ports, 120 Forwarding Rate in Mpps (64 Byte Packets), 4 SFP+ Uplink ports

EX1000 Series Products

cnMatrix EX1010 Switch

20 Gbps throughput, 8 10/100/1000 ports, 2 SFP Uplink ports

cnMatrix EX1010-P Switch

20 Gbps throughput, 8 PoE enabled ports, 8 10/100/1000 ports, 2 SFP Uplink ports

cnMatrix EX1028 Switch

56 Gbps throughput, 24 10/100/1000 ports, 4 SFP Uplink ports

cnMatrix EX1028-P Switch

56 Gbps throughput, 24 PoE enabled ports, 24 10/100/1000 ports, 4 SFP Uplink ports

TX2000 Series Products

cnMatrix TX2012R-P Switch

104 Gbps throughput, 8 PoE+ enabled ports, 8 10/100/1000 Mbps ports, 4 SFP+ Uplink ports

cnMatrix TX2020R-P Switch

112 Gbps throughput, 16 PoE+ enabled parts, 16 10/100/1000 Mbps ports, 4 SFP+ Uplink ports

cnMatrix TX2028RF-P Switch

128 Gbps throughput, 16 PoE+ enabled ports, 16 10/100/1000 Mbps ports, 8 1000 Mbps fiber ports, 4 SFP+ Uplink ports

TX1000 Series Products

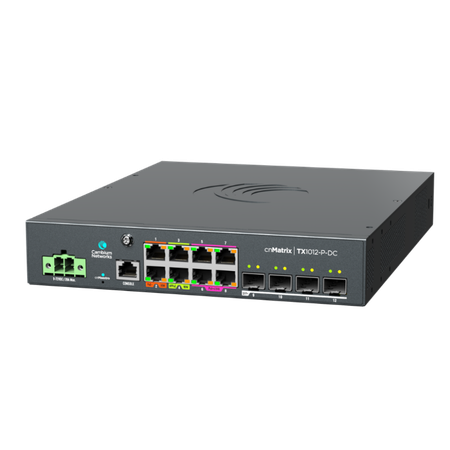

cnMatrix TX1012-P-DC Switch

96 Gbps throughput, 8 PoE+ enabled ports, 8 10/100/1000 Mbps ports, SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports

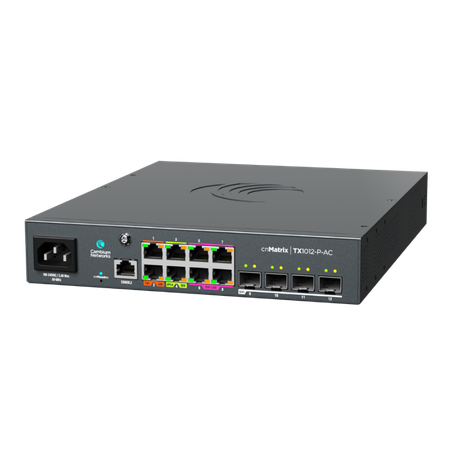

cnMatrix TX1012-P-AC Switch

96 Gbps throughput, 8 PoE+ enabled ports, 8 10/100/1000 Mbps ports, SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports
