cnReach
Narrowband Wireless

The cnReach Terminal Server delivers serial to Ethernet conversion enabling the addition or integration of serial connectivity to any wired or wireless TCP/IP network.

For outdoor critical infrastructure operations, cnReach™ transports process monitoring and control data from remote sensors or RTU/PLCs back to the operations center, supporting real-time automated decision making and ongoing analytics.

The cnReach N550 900 MHz radio can be configured for either licensed MAS or unlicensed ISM operation and with extensive I/O eases the migration to a reliable all-IP network. Adaptive modulation and access point synchronization reduce self-interference and enable scalability in dense environments.

For outdoor critical infrastructure operations, cnReach transports process monitoring and control data from the remote sensor back to the operations center supporting real-time automated decision making and on-going analytics.

The cnReach N550 220 MHz provides reliable licensed band connectivity with extensive I/O capabilities to ease migration to all-IP networks. With dual radio options, a 5 W output power and adaptive modulation the 220 MHz cnReach enables connectivity in the most diverse environments.

The cnReach N550 700 MHz (licensed upper A block: 757-758 MHz and 788-788 MHz) provides reliable licensed band connectivity with extensive I/O capabilities to ease migration to all-IP networks. With dual radio options, up to 250 kHz channels, 10 W output power and adaptive modulation the 700 MHz cnReach enables connectivity in a wide variety of applications.

The cnReach N550 450 MHz ETSI RED model provides reliable licensed band connectivity with extensive I/O capabilities to ease migration to all-IP networks. With dual radio options, an 8 W output power, wide 406-470 MHz coverage, and adaptive modulation cnReach enables connectivity in the most diverse environments. The ETSI RED model is fully compliant the the ETSI RED directives that went into place in 2017.

The cnReach N550 450 MHz FCC model provides reliable licensed band connectivity with extensive I/O capabilities to ease migration to all-IP networks. With dual radio options, a 5 W output power and adaptive modulation cnReach enables connectivity in the most diverse environments.

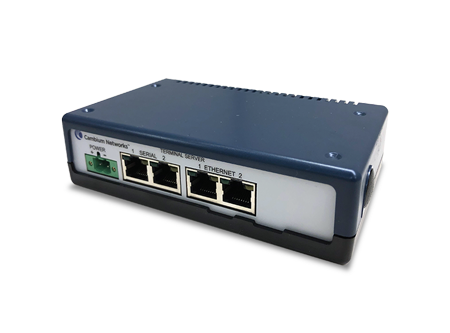

The cnReach IO Expander has a rich set of IO features (2 x Ethernet, 2 x Serial and 8 General-purpose IO pins) that increases the number of applications and data sources that can be served by wireless networks. Use the IO expander to add these capabilities to any layer 2 radios such as the PTP 650, PTP 450i and PMP 450i SM’s or to add additional IO expansion to cnReach networks.
