60 GHz cnWave
60 GHz cnWave V3000
V3000 is featured with a 44.5 dBi high-gain antenna with beamforming. The client nodes can support up to 7.6 Gbps with channel bonding for both PMP and PTP configurations.
60 GHz cnWave V5000
V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for PTP, PMP and mesh configurations.
Licensed Microwave Backhaul

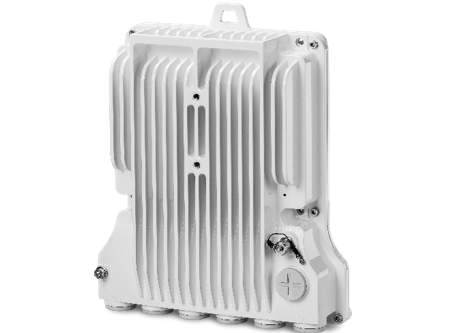

PTP 850E
All outdoor, 71-86 GHz, up to 10 Gbps
PTP 850C
PTP 850C is next generation all-outdoor, multi-core unit. The PTP 850C has dual-core functionality enabling the system to operate up to 4 Gbps and deliver gigabit-plus capacity.
PTP 850S
PTP 850S is next generation all-outdoor point-to-point licensed microwave unit for single core unit. PTP 850S can deliver up to 2 Gbps plus capacity.
PTP 820C
All outdoor, dual core, up to 1.2 Gbps

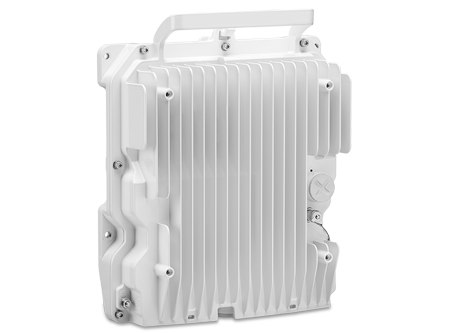

PTP 820C HP
All outdoor, dual core, High power 35 dBm, up to 1.2 Gbps
PTP 820S
All outdoor, single core, up to 600Mbps
PTP 820E
All outdoor, 71-86 GHz, up to 2.5 Gbps
PTP 820G
Split mount, multi-carrier, up to 1 Gbps
PTP 820F
Split Mount Aggregation Node, up to 2.5 GbpsPMP 450 Backhaul family
PTP 450i Fixed Wireless Backhaul
Fit to comprehensive network with dynamic interference filtering
PTP 450b
Backhaul links are the vital infrastructure that connects the network. You need confidence that your solution will work under heavy demand, regardless of the conditions. Licensed and unlicensed point-to-point (PTP) solutions from Cambium Networks perform reliably so that you can focus on your business. The PTP 450b features up to…
5 GHz PMP 450b High Gain Subscriber Module
Up to 300 Mbps in a 40 MHz channel. Frequency range is 4.9 – 5.925 GHz
PTP 450
Backhaul solution in 3.65 GHz lightly licensed and 3.5 GHz licensed bandsePMP Backhaul Family
ePMP Force 300-25
Cambium Networks’ ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
ePMP Force 425
Cambium Networks introduces the ePMP Force 425 point to point solution delivering up to 1 Gbps throughput at a breakthrough price point based on the latest 802.11ax standards.

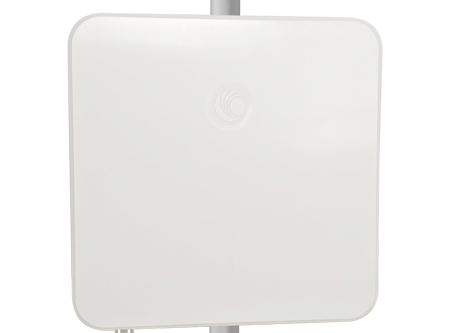

ePMP Force 300-19R
Combining the latest 802.llac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-19R delivers up to 600 Mbps of capacity. The Force 300-19R is a powerful yet affordable subscriber module compatible with the ePMP3000 Access Point and using the forward compatibility features also interoperates with…
Bridge-in-a-Box
Pre-paired plug-n-play PTP linkTower Switches
cnMatrix Switch TX2012R-P
Tower/WISP switch with Cambium Sync, Intelligent and flexible PoE, enterprise grade L2/L3 switching, 96 Gbps throughput, 120 Forwarding Rate in Mpps (64 Byte Packets), 8 10/100/1000 Mbps ports, 4 SFP+ Uplink ports
cnMatrix Switch TX2020R-P
Tower/WISP switch with Cambium Sync, Intelligent and flexible PoE, Dual removeable/redundant power supplies, enterprise grade L2/L3 switching, 112 Gbps throughput, 120 Forwarding Rate in Mpps (64 Byte Packets), 16 10/100/1000 Mbps ports, 4 SFP+ Uplink ports
Feature Comparison |
||||||
|
|
 |
 |
 |
 |
 |
 |
|
ATTRIBUTES |
||||||
| Max Throughput (up to) | 3.6 Gbps | 1.0 Gbps | 600 Mbps | 300 Mbps | 1.44 Gbps | 450 Mbps |
| Spectrum Efficiency (bits/HZ/s) | 1.67 | 12.5 | 7.5 | 7.5 | 9 | 10 |
| Frequency Range (GHz) | 57 to 66 | 4.910 to 6.135 | 4.9 to 5.9 | 4.9 to 5.9 | 5.1 – 5.9 | 4.9 to 6 |
| Channel BW MHz | 2.16 GHz | 20/40/80 | 20/40/80 | 5/10/15/20/30/40 | 2x 20/40/80 | 5/10/15/20/30/40/45 |
| Channel bonding | Roadmap | No | No | No | Yes | No |
| Top Modulation | 16 QAM | 1024 QAM | 256 QAM | 256 QAM | 256 QAM | 256 QAM |
| Packets Processed per Second | 80,000 | 80,000 | 50,000 | 120,000 | 850,000 | |
| Integrated Antenna | 40.5 or 44.5 dBi | 25 dBi | 13/16/19/25 dBi | 17/24 dBi | 23 dBi | 23 dBi |
| Latency | < 1 ms | 3-6 ms | 3-6 ms | 3-5 ms | 3-6 ms | 1-3 ms |
| Tx Power | 19 dBm beam-forming | 28 dBm | 27 dBm | 27 dBm | 26 dBm | 27 dBm |
| Jumbo Frame | 4000 bytes | 1700 bytes | 1700 Bytes | 1700 Bytes | 1700 Bytes | 9600 Bytes |
| Online Spectrum Analyzer | No | Yes | Yes | Standby | Yes | Yes |
| DSO | No | No | No | No | No | Yes |
| Encryption | 128 AES | 128 AES | 128 AES | 128 AES | 128 AES | 128 & 256 AES |
| 1588 Timing & SyncE | 1588 (Roadmap) | No | No | No | No | Yes |
| QOS | 4 level | 3 level | 3 Level | 4 Level | 3 Level | 8 Levels |
| PoE output | Yes | No | No | No | No | Yes |
| SFP Fiber Port | Yes | Yes | No | No | Yes | Yes |
| TDD Sync | Yes | No | Yes | Yes | Yes | Yes |
| TDM T1/E1 | No | No | No | No | No | Yes |
| IP Rating | IP67 | IP67 | IP55 (F300-19R=IP67) | IP67 | IP67 | IP67 |
| Power Consumption | 30 W | 28 W | 12 W | 12 W | < 30 W | <30 W |
