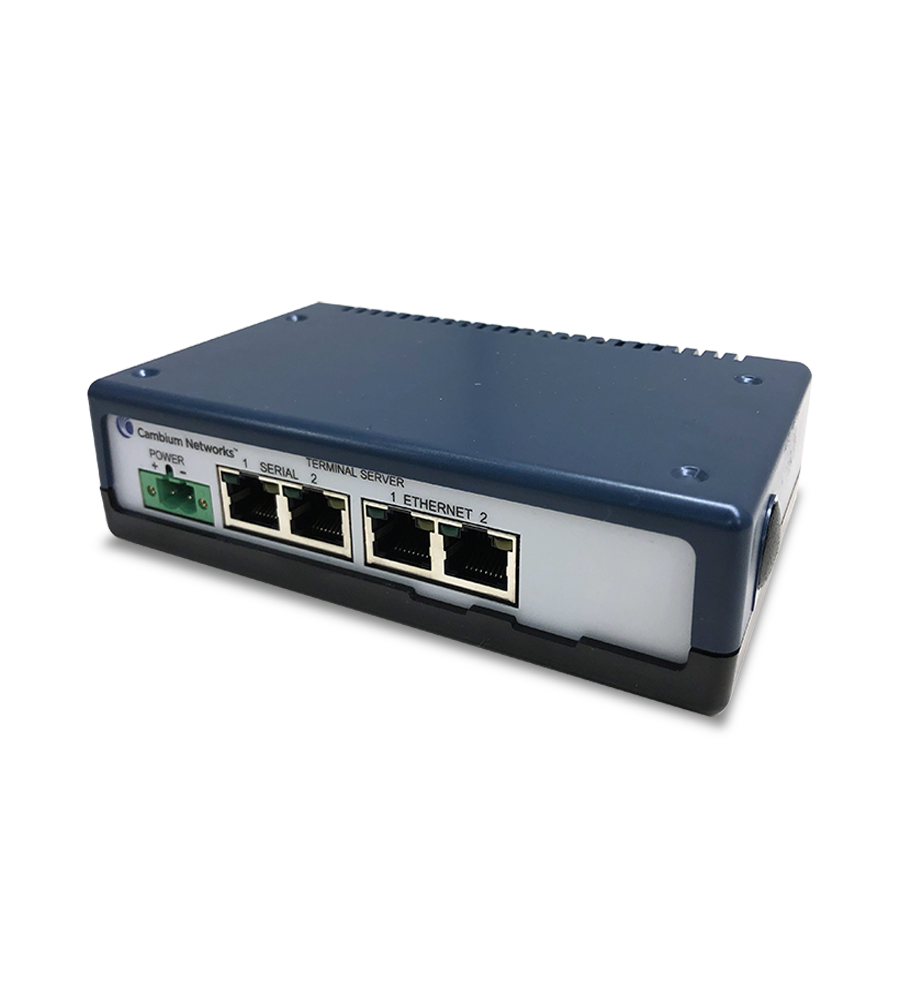

cnReach Terminal Server

The cnReach™ Terminal Server delivers serial to Ethernet conversion enabling the addition or integration of serial connectivity to any wired or wireless TCP/IP network.

In addition to serial connectivity, the terminal server supports MODBUS polling at the edge that can be published via MQTT. Finally, the cnReach Terminal Server is managed with cnMaestro™ providing single-pane-of-glass management across the network.

Key Features

  • Add serial to TCP/IP conversion on any wireless or wired broadband network
  • Single-pane-of-glass management with cnMaestro to monitor/configure devices remotely
  • Flexible configuration enabling integration with most serial-based devices in the field today
  • Integrated MODBUS TCP to MODBUS RTU conversion
  • Supports TCP or UDP traffic and server or client modes
  • Daisy-chain multiple units to add more serial ports
  • MQTT publish/subscribe integration
  • Reduce traffic by up to 90% vs traditional polling
  • Make data available across entire organization
  • Integrated local MODBUS polling at the edge
  • Data concentrator applications to reduce polling
  • PLC local logic to add intelligence at the edge

cnReach Terminal Server

Specifications

Web-based interface via HTTP/HTTPS
Remote management via SNMP
User login authentication using RADIUS
cnMaestro integration
Support for configuration files, remote software upgrades
Packet handling
Layer 2 bridge and/or layer 3 static routes VLAN support
Modes
TCP terminal server, TCP terminal client, UDP Tterminal, multicast terminal
Other
MODBUS bridge (MODBUS TCP to MODBUS RTU conversion)
Data concentrator (converges data from multiple MODBUS sources into single polling MODBUS map)
MQTT (publish/subscribe data); Sparkplug B compliant
Ethernet Interfaces
2 x RJ-45
10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
Serial Interfaces
2 x RJ-45 RS-232/422/485, up to 230.4 kbps
Dimensions
140 x 89 x 38 mm (5.5 x 3.5 x 1.5 in)
Weight
0.25 kg (0.55 lb)
DIN Rail Mount
Included
Operating Temperature
-40 C to +85 C (-40 F to 185 F)
Humidity
95% operating humidity @ 40C non-condensing
HAZLOC
Pending Approval to UL Class 1 / Div 2
