Switching Accessories
Transceivers
Cambium offers a complete solution of Short and Long reach Optical and Copper Transceivers!
| Part # | Description |
|---|---|
| SFP-1G-SX | 1G SFP MMF Transceiver, 100m -40°C to 85°C |
| SFP-1G-LX | 1G SFP SMF Transceiver, 10km -40°C to 85°C |
| SFP-10G-SR | 10G SFP+ MMF Transceiver, 300m -40C to 85C |
| SFP-10G-LR | 10G SFP+ SMF LR Transceiver, 10km -40C to 85C |
| SFP-25G-SR | 25G SFP28 MMF Transceiver, 100m -40°C to 85°C |
| SFP-25G-LR | 25G SFP28 SMF Transceiver, 10km -40°C to 85°C |
| SFP-1G-Copper | 1000Base-T (RJ45) SFP Transceiver, 100m -40C to 85C |
| SFP-10G-Copper | 10G Base-T (RJ45) SFP Transceiver, 30m 0C to 70C |
Rack Mount Kits
MX-EXTXFULLA-1
Rack mount ears for the EX1028 / EX2028 / EX2052 / EX2016M-P / TX2020R-P / TX2028RF-P family of Switches
MX-EXTXHALFA-0
Rack mount ears for the EX1010 / EX1010-P / EX2010 / EX2010-P Switches

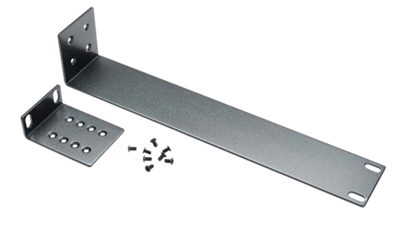

MX-Rack-TX2K-0
Rack mount ears for the TX2012R-P Switch
MX-Rack-TX1K-0
Rack mount ears for the TX1012-P-AC / TX1012-P-DC Switches
MX-DIN-TX1K-0
DIN mount kit for the TX1012-P-AC / TX1012-P-DC Switches
Power Supplies
CRPS – (Common Removable Power Supply)
- Power supply for the following cnMatrix switches:
– EX2052R-P
– TX2012R-P
– TX2020R-P
– TX2020RF-P - 6 CRPS Options
– 3 AC versions & 3 DC versions
– 3m power cable included with DC models
– AC power cord not included
| Part # | Description | AC or DC | Total Power | POE Budget |
|---|---|---|---|---|
| MXCRPSAC600A0 | CRPS – AC – 600W total Power, no power cord | AC | 600 watts | 500 watts |
| MXCRPSAC930A0 | CRPS – AC – 930W total Power, no power cord | AC | 930 watts | 840 watts |
| MXCRPSAC1200A0 | CRPS – AC – 1200W total Power, no power cord | AC | 1200 watts | 1000 watts |
| MXCRPSDC600A0 | CRPS – DC – 600W total Power, 37v-72v, no power cord | DC (36v-72v) | 600 watts | 500 watts |
| MXCRPSDC930A0 | CRPS – DC – 930W total Power, 37v-72v, no power cord | DC (36v-72v) | 930 watts | 840 watts |
| MXCRPSDC1200A0 | CRPS – DC – 1200W total Power, 37v-72v, no power cord | DC (36v-72v) | 1200 watts | 1000 watts |
CRPS Units (see table) are removable power supplies that are used in some of the cnMatrix switches.
| Part # – New | Description |
|---|---|
| MXCRPSAC600A0 | CRPS – AC – 600W total Power, no power cord |
| MXCRPSAC930A0 | CRPS – AC – 930W total Power, no power cord |
| MXCRPSAC1200A0 | CRPS – AC – 1200W total Power, no power cord |
| MXCRPSDC600A0 | CRPS – DC – 600W total Power, 37v-60v, includes 3m cable connector |
| MXCRPSDC930A0 | CRPS – DC – 930W total Power, 37v-60v, includes 3m cable connector |
| MXCRPSDC1200A0 | CRPS – DC – 1200W total Power, 37v-60v, includes 3m cable connector |
Cambium branded SFP and SFP+ transceivers are available as follows:
| Part # | Description |
|---|---|
| SFP-1G-SX | 1G SFP MMF Transceiver, 100m -40°C to 85°C |
| SFP-1G-LX | 1G SFP SMF Transceiver, 10km -40°C to 85°C |
| SFP-10G-SR | 10G SFP+ MMF Transceiver, 300m -40C to 85C |
| SFP-10G-LR | 10G SFP+ SMF LR Transceiver, 10km -40C to 85C |
| SFP-25G-SR | 25G SFP28 MMF Transceiver, 100m -40°C to 85°C |
| SFP-25G-LR | 25G SFP28 SMF Transceiver, 10km -40°C to 85°C |
| SFP-1G-Copper | 1000Base-T (RJ45) SFP Transceiver, 100m -40C to 85C |
| SFP-10G-Copper | 10G Base-T (RJ45) SFP Transceiver, 30m 0C to 70C |
| Transceiver Part Numbers | ||||||||
| SFP-1G-SX | SFP-1G-LX | SFP-1G-Copper | SFP-10G-SR | SFP-10G-LR | SFP-10G-Copper | SFP-25G-SR | SFP-25G-LR | |
| EX1010 | Yes | Yes | Yes | No | No | No | No | No |
| EX1010-P | Yes | Yes | Yes | No | No | No | No | No |
| EX1028 | Yes | Yes | Yes | No | No | No | No | No |
| EX1028-P | Yes | Yes | Yes | No | No | No | No | No |
| EX2010 | Yes | Yes | Yes | No | No | No | No | No |
| EX2010-P | Yes | Yes | Yes | No | No | No | No | No |
| EX2028 | Yes | Yes | Yes | yes | yes | yes | No | No |
| EX2028-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| EX2016M-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| EX2052 | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| EX2052-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| EX2052R-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| TX2012R-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| TX2020R-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| TX2028R-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| TX1012-P-AC | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| TX1012-P-DC | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| EX3028R-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| EX3052R-P | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| EX3028RM-P | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| EX3052RM-P | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| EX3024F | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
Rack mount ears can be used for rack mounting or wall mounting as follows:
| Switch Model | Family | Port Configuration | Includes Rack mount ears | Part Number | |||||
| MX-EXTXHALFA-0 | MX-EXTXFULLA-1 | MX-Rack-TX2K-0 | MX-Rack-TX1K-0 (Black) |
MX-Rack-TX1K-1 (Grey) |
MX-DIN-TX1K-0 | ||||
| cnMatrix | EX1010 | Enterprise | 8 Port non PoE | No | 19″ Rack | Wall | NA | NA | NA | NA |
| cnMatrix | EX1010-P | Enterprise | 8 Port PoE | No | 19″ Rack | Wall | NA | NA | NA | NA |
| cnMatrix | EX1028 | Enterprise | 24 Port non PoE | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | EX1028-P | Enterprise | 24 Port PoE | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | EX2010 | Enterprise | 8 Port non PoE | No | 19″ Rack | Wall | NA | NA | NA | NA |
| cnMatrix | EX2010-P | Enterprise | 8 Port PoE | No | 19″ Rack | Wall | NA | NA | NA | NA |
| cnMatrix | EX2028 | Enterprise | 24 Port non PoE | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | EX2028-P | Enterprise | 24 Port PoE | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | EX2016M-P | Enterprise | 16 Port PoE – 6×2.5G | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | EX2052 | Enterprise | 48 Port Non PoE | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | EX2052-P | Enterprise | 48 Port PoE – fixed 520 | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | EX2052R-P | Enterprise | 48 Port PoE – CRPS | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | TX2012R-P | WISP/Tower | 8 Port PoE – CRPS | No | NA | Wall | 19″ Rack | NA | NA | NA |
| cnMatrix | TX2020R-P | WISP/Tower | 16 Port PoE – CRPS | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | TX2028RF-P | WISP/Tower | 16 Port PoE – CRPS | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | TX1012-P-AC | WISP/Tower | 8 Port PoE | No | NA | Wall | NA | 19″ Rack | 19″ Rack | DIN Rail Mount |
| cnMatrix | TX1012-P-DC | WISP/Tower | 8 Port PoE | No | NA | Wall | NA | 19″ Rack | 19″ Rack | DIN Rail Mount |
| cnMatrix | EX3028R-P | WISP/Tower | 24 Port PoE | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
| cnMatrix | EX3028R-P | WISP/Tower | 48 Port PoE | Yes | NA | 19″ Rack or Wall | NA | NA | NA | NA |
