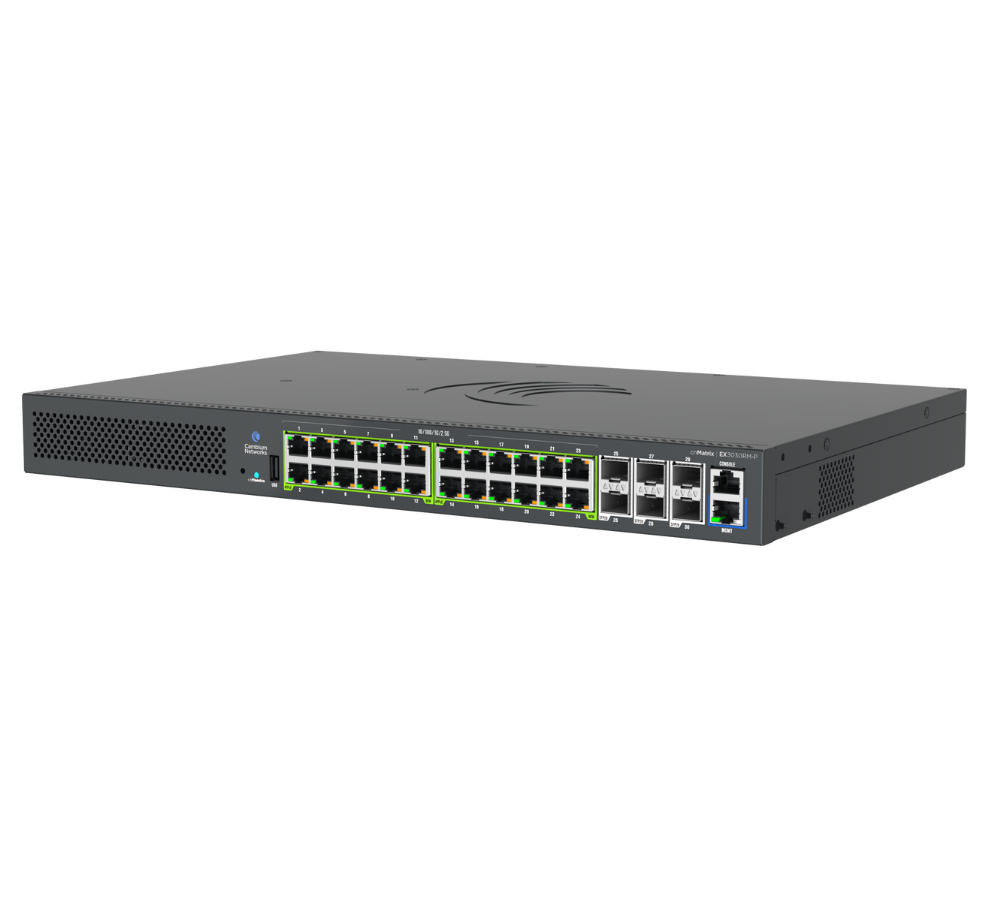

cnMatrix EX3030RM-P

The cnMatrix™ series of fully managed Ethernet switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3030RM-P offers 24 2.5G/1G access ports with 6 x 25G SFP28 uplink ports. The EX3030RM-P switch also feature up to 90W of PoE max power per port. These switches come with a 5-Year limited lifetime warranty.

cnMatrix EX3030RM-P Ethernet Switch

The cnMatrix platform of switches provides:

  • Non-blocking, line-rate architecture with fully-featured profiling and segmentation
  • Simple and scalable cloud (or on premise) control with cnMaestro™ Network Management
  • Zero-touch deployment that makes installation plug-and-play easy
  • Policy-based automation eliminating manual and time-consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Unified wired, wireless, security, SD-WAN, and fiber solution as part of Cambium’s ONE Network

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX3000 Series offers SFP+ (10 Gbps) or SFP-28 (25 Gbps) fiber uplink ports. The series also comes with dual removable power supplies and features up to 90W of PoE per port. These switches come with a 5-Year Limited Lifetime Warranty

cnMatrix EX3030RM-P

Specifications

Features

Throughput
420 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
2.5G / 1G Ports
24
PoE+ Enabled Ports 802.3af/at/bt (90W)
24

Hardware

Power Supply
CRPS dependant
Max Switch Power (with Traffic)
69.5W
MTBF (Hours)
276,875.99
Weight
5.06 kg (11.16 lb)
Dimensions
4.4 x 28 x 44 cm
CPU Speed
1.2 GHz
LEDs Per Port
Link/Activity, PoE
PoE+ Power Budget
CRPS
