The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3028R-P series offers 24 10/100/1000 Mbps access ports with 4 SFP+ (10 Gbps) fiber uplink ports. The EX3028R-P switch also offers dual removable power supplies and features up to 60W of PoE per port. These switches come with a 5-Year Limited Lifetime Warranty
The cnMatrix platform of switches provides:

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3000 series offers SFP+ (10 Gbps) fiber uplink ports. The EX3000 series also offers dual remove-able power supplies and features up to 60W of PoE per port. These switches come with a 5-Year Limited Lifetime Warranty

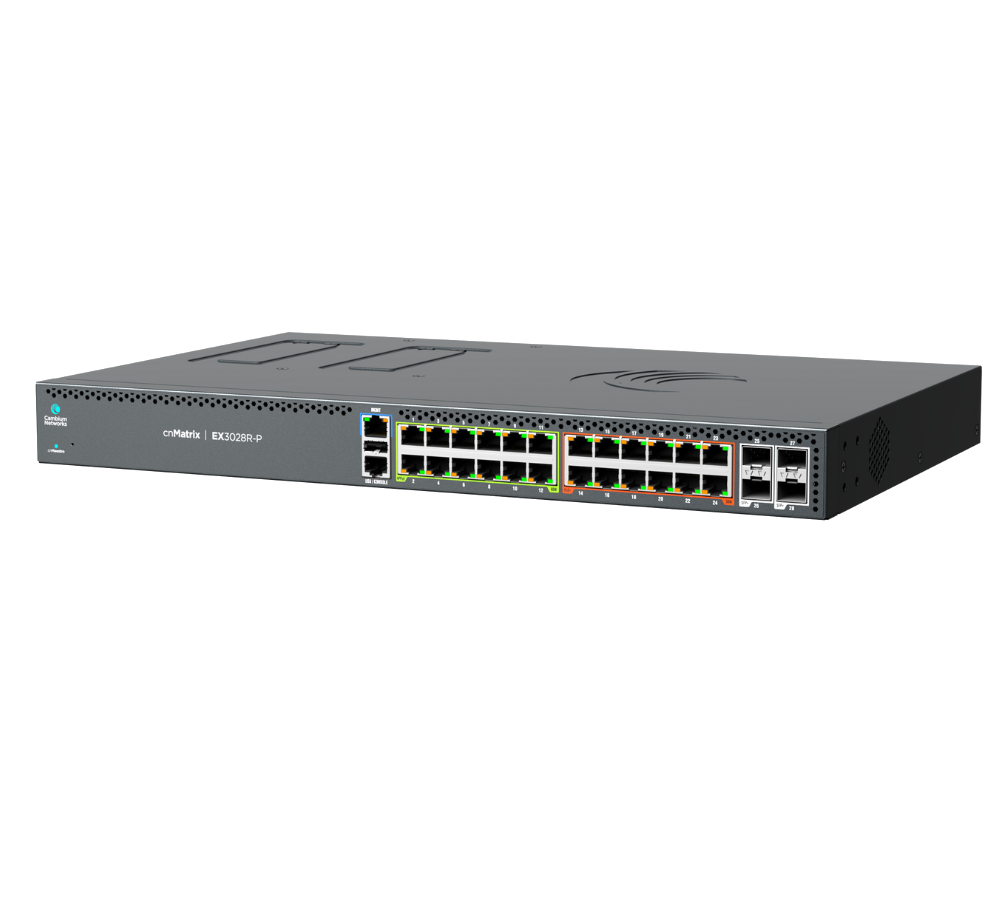

cnMatrix EX3028R-P
Specifications
Throughput
128 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
10/100/1000 Ports
24
2.5 G Ports
n/a
PoE+ Enabled Ports 802.3af/at/bt (30W)
12
PoE+ Enabled Ports 802.3af/at/bt (60W)
12
Power Supply
CRPS dependant
Max Switch Power (with traffic)
61W
MTBF (Hours)
547.054
Weight
3.679 Kg (8.11 lbs)
Dimensions
4.4 x 28 x 44.15 cm (1.73 x 11.02 x 17.38 in)
CPU Speed
800 MHz
LEDs Per Port
Link/Activity, PoE
PoE+ Power Budget
CRPS dependant
