The cnMatrix platform of switches provides:

  • Full Line Rate, non-blocking architecture
  • Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
  • Zero-touch deployment of switches makes installation easy
  • Policy Based Automation eliminates manual and time consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution

* Feature to be included in a future release.

The cnMatrix TX Series of Switches provides the following addition functionality:

Cambium Sync

  • Redundant Input Sync sources Internal GPS module (with external antenna) cnPulse
  • Full per-port control with stats available

Comprehensive/Intelligent PoE solution

  • 802.3af/at/bt – up to 90W
  • 24V Passive PoE – up to 15W
  • 54V Passive PoE – up to 90W

Supports AC and DC removeable power supply:

  • 600W, 930W, & 1200W options

DC supplies

  • Fully Isolated – Supports positive/negative input voltages
  • 36V–72V
  • 600W, 930W, & 1200W options
  • Grounding lug nut located on front panel

Video: How to Simplify Tower Deployments with Integrated Ethernet Switching

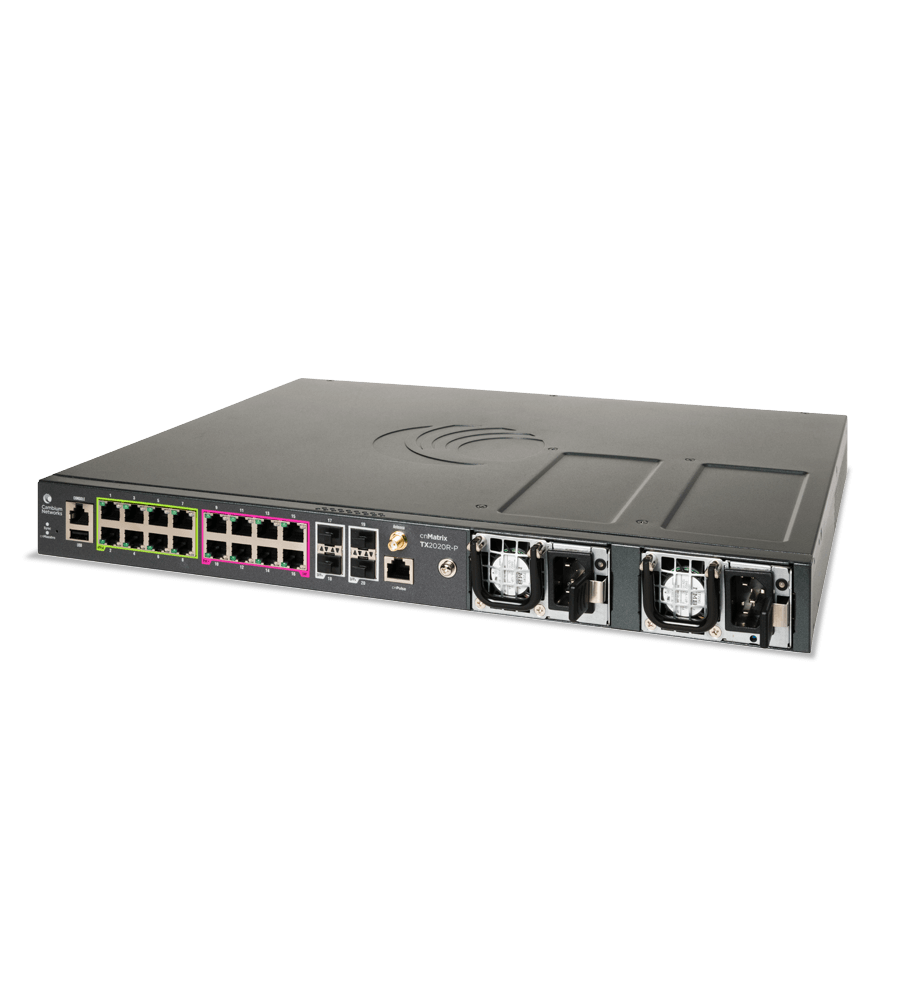

cnMatrix Switch TX2020R-P

Specifications

GENERAL SPECIFICATIONS

Throughput
112 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
10/100/1000 Mbps RJ45 Ports
16
10 Gbps Fiber SFP+ Ports
4
PoE+ Enabled Ports 802.3af/at/bt
16
Low Voltage Passive PoE (24 V)
8
Cambium Sync (via RJ45 ports)
16

HARDWARE SPECIFICATIONS

Power Supply
CRPS dependent
PoE Power Budget
CRPS dependent
802.3af/at/bt PoE (54V)
Ports 1–16
24V Passive PoE - up to 15W
Ports 9–16
54V Passive PoE - up to 90W
Ports 1–8
54V Passive PoE - up to 30W
Ports 9–16
Rack Mountable
Yes 1U
Wall Mountable
Yes
Temperature Ranges
-10°C up to 65°C

MANAGEMENT

cnMaestro cloud management
XMS* cloud management
Industry standard Command Line Interface (CLI)
DHCP Client
Embedded web management (HTTP/HTTPS)
Embedded DHCP server
USB file management and storage
Out-of-Band Ethernet Management
SSH / SSH v2
SNMP v1/v2/v3

LAYER 2 FEATURE SET

802.1s multiple spanning tree
VLAN, Port, Protocol, 802.1q
802.1d
802.1x authentication
Auto MDI/MDIX
BPDU Guard, Root Guard

LAYER 3 FEATURE SET

Inter-VLAN Routing
Static ARPs
Static Routes
DHCP Relay
Dynamic Routing – RIPv1/v2
Dynamic Routing – OSPFv2
Route Redistribution

QUALITY OF SERVICE

ACL mapping and marking of ToS/DSCP (COS)
ACL mapping to priority queue
ACL mapping marking of 802.1p
Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP

TRAFFIC MANAGEMENT

ACL-based inbound rate limiting policies
Inbound rate limiting per port
Broadcast, multicast and unknown unicast rate limiting
Outbound rate limiting per port/queue

SECURITY

Source/Destination IP address
TCP/UDP Source/Destination port
IP Protocol Type
Type of Service (ToS) or differentiated services (DSCP) field
Source/Destination MAC address
