Designed For High-speed and High-density Deployments

Cambium Networks’ cnWave 60 GHz solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

Cloud and On-Premise Management

cnWave 60 GHz operates with Cambium Networks’ cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.

cnWave 60 GHz V1000 modules connect video surveillance cameras outside Albert Hall in London

Pentanet Deploys 60 GHz cnWave to Offer Gigabit Speeds in Perth, Australia

Tizeti Network Ltd in Nigeria demonstrates the throughput speed of 60 GHz cnWave

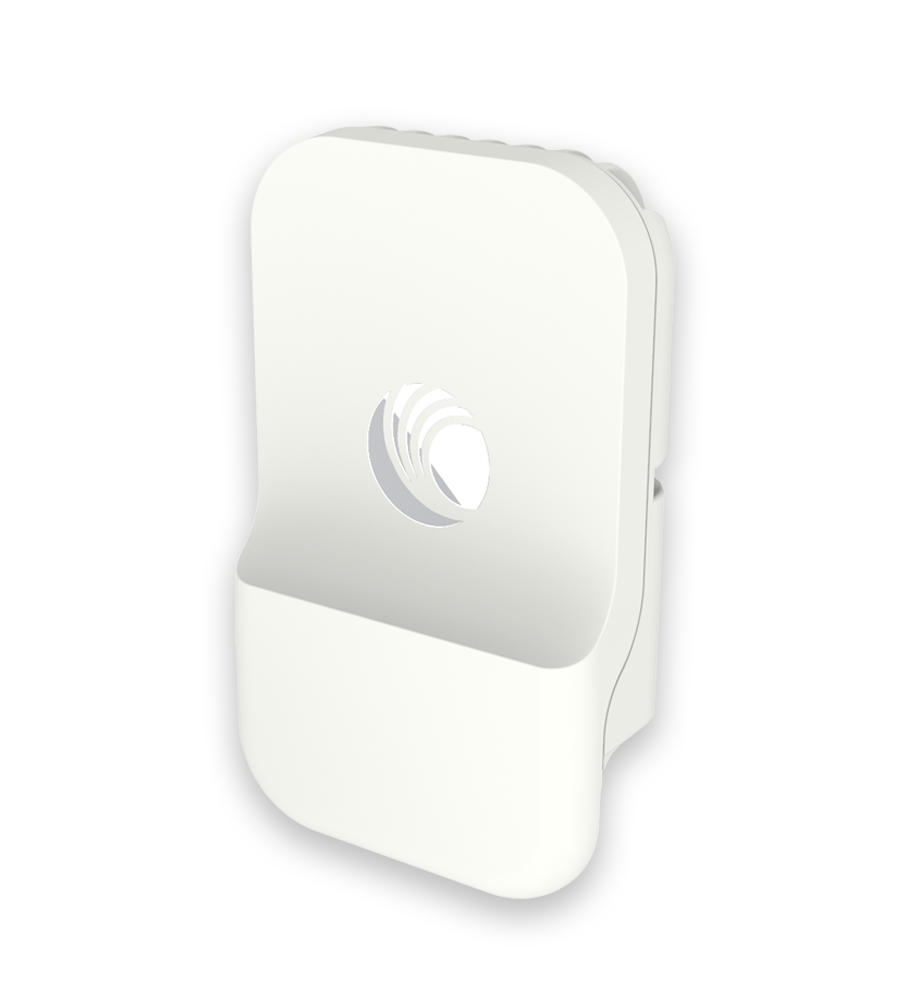

cnWave 60 GHz V1000

Specifications

SPECTRUM

Frequency Range
57 to 66 GHz in a single SKU
Channel Width
2.16 GHz, 4.32 GHz*
Carrier Bonding*
Up to 2 adjacent channels
Mode of Operation
PMP or Mesh, PTP

INTERFACE

Channel Access
TDMA/TDD
Ethernet Interface
1 x 100/1000 BaseT with PoE In

PERFORMANCE

Modulation & Coding Schemes
MCS-0 (BPSK) to MCS-12 (16-QAM)
Latency
< 1 ms
Maximum EIRP
38 dBm

SECURITY

Encryption
128-bit AES
Firmware Security
Signed Firmware Images
