The PMP 450m Access Point is most scalable, highest capacity, and most spectrally efficient AP in the industry. cnMedusa is a first-of-its-kind technology in a fixed wireless broadband access platform. The 450m utilizes massive Multi-User MIMO technology in a cost-effective solution. The implementation of MU-MIMO coupled with beamforming technology delivers ground-breaking spectral efficiency and outstanding performance in high interference environments.
Video: Maximize Your ROI from 3 GHz, CBRS and 5 GHz Spectrum

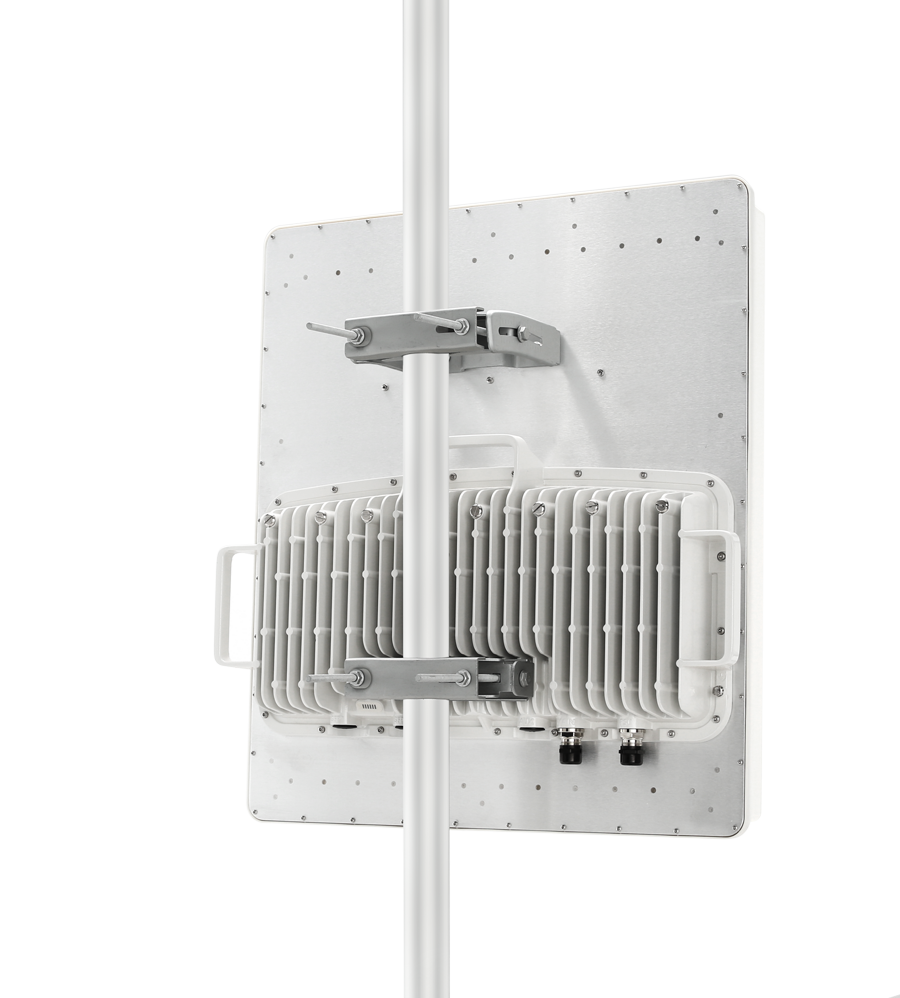

5 GHz PMP 450m Fixed Wireless Access Point
PMP 450m Massive 14 x 14 Multi-user MIMO System Features Adaptive Beamforming
cnMedusa Massive MU-MIMO
Combining Adaptive Beamforming and multiple RF chains can result in more than 4X total capacity compared to the standard 2x2 450i access point.
Integrated 90° sector antenna array
Leading Edge antenna innovation brings Smart Beamforming to the 450 platform, ZERO RF cables to connect or weatherproof
Multiple RF chains
14 x 14 Multi-user MIMO system on the 5 GHz model allows simultaneous communication to up to seven SMs. 8 x 8 Multi-user MIMO system on the 3 GHz model allows simultaneous communication to up to four SMs
INDUSTRY-LEADING SPECTRAL EFFICIENCY
PMP 450m 5 GHz delivers >500 Mbps actual throughput in a 20 MHz channel (20+ bps/Hz, and over 40 bps/Hz when deployed in frequency re-use configurations).
Wideband radio
5 GHz PMP 450b High Gain Subscriber Module
Resources
Documentation
- End-to-End QoS for Video Across the Cambium Wireless Fabric
- Cambium Networks Fortifies its Wireless Fabric with Emerging Standards 5G and 802.11ax
- 3 GHz PMP 450 Platform and LTE co-location guide
- Disaster Recovery – Interview with Kix Internet
- cnMedusa™ MU-MIMO Solution Paper
- Smart Highways Solution Paper
- The Wireless Niche in your Network
- A Comparison- PMP 450 and LTE in 3 GHz
- Wireless Mining Operations
- Wireless Video Surveillance Solutions
- PMP 450m Demonstration
Webformix Internet Delivers High Speed Wireless Connectivity that Satisfies Demanding Customers
Maximize Your ROI from 3 GHz, CBRS and 5 GHz Spectrum
ePMP AX (5 GHz and 6 GHz) Technical Update
PMP 450m Update
cnMedusa for Service Providers
Cambium Innovation and Connectivity
PMP 450 450i 450m Capacity Planner
How Does MU-MIMO Work?
5 GHz PMP 450m Fixed Wireless Access Point
Specifications
Physical Layer
14x14 Multi-User MIMO OFDM
Ethernet Interface
100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant), SFP support up to 2.5NBase-T
Protocols Used
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
Subscriber Per Sector
Up to 238
ARQ
Yes
Maximum Deployment Range
Up to 40 miles (64 km)
Weight
Approx. 14.2 kg (31 bs)
Dimensions (HxWxD)
52 x 65 x 11 cm (20.3” x 25.7” x 4.4”)
Environmental
IP67, IP66
Encryption
FIPS-197 128-bit AES , Option 256-bit AES
What 450m can do for you
More connectivity, faster
The PMP 450m Access Point (AP) with cnMedusa™ Massive MU-MIMO technology enables network operators to rapidly provide more and faster Internet connections to people, places, and things.
A powerful tool that can change the commercial wireless broadband industry.
The PMP 450m AP with cnMedusa MU-MIMO router technology features integrated 90° sector beamforming antenna array, single cable connection integrated radio, and increased capacity – The PMP 450m can provide more than 400 Mbps actual usable throughput per sector, and communicate with up to seven Subscriber Modules simultaneously.
Industry-leading spectral efficiency
PMP 450m delivers >400 Mbps actual throughput in a 20 MHz channel (20+ bps/Hz, and over 40 bps/Hz when deployed in frequency re-use configurations).
Investment protection
PMP 450m is fully compatible with PMP 450 Subscriber Modules (SM) in an existing network.
