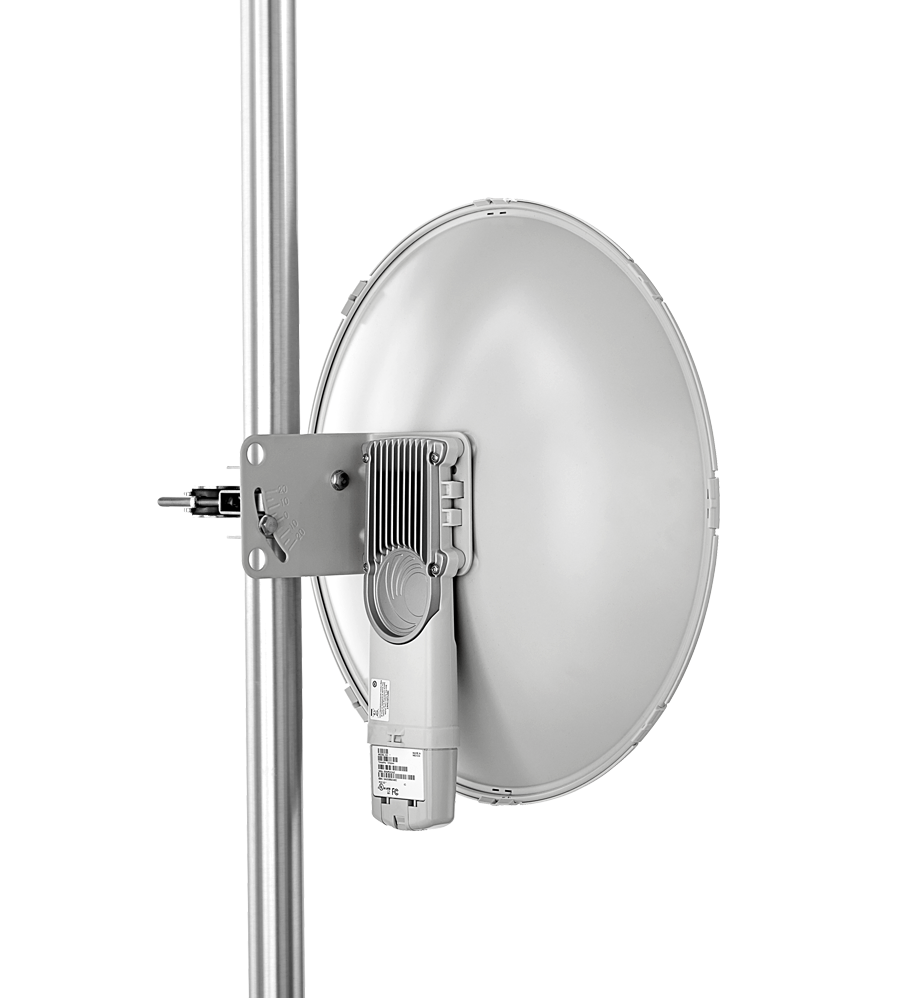

PMP 450d Integrated Subscriber Module Dish

Specifications

SPECTRUM

FREQUENCY RANGE
5470 - 5875 MHz
CHANNEL WIDTH
5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
CHANNEL SPACING
Selectable on 2.5 MHz increments

INTERFACE

PHYSICAL LAYER
2x2 MIMO OFDM
ETHERNET INTERFACE
10/100/BaseT, half/full duplex, rate auto negotiated (802.3 compliant)
PROTOCOLS USED
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP

PERFORMANCE

ARQ
YES
MAXIMUM DEPLOYMENT RANGE
Up to 40 miles
LATENCY
3 - 5 ms, typical

LINK BUDGET

ANTENNA SPECIFICIATIONS
7° azimuth , 7° elevation , >30 dB front-to-back isolation
INTEGRATED DISH GAIN
25 dBi
TRANSMIT POWER RANGE
-30 TO +22 dBm (combined, to EIRP limit by region) (1 dB interval)

PHYSICAL

ANTENNA CONNECTION
Integrated dish antenna
ENVIRONMENTAL
IP55
TEMPERATURE
-40°C TO +60°C (-40°F TO 140°F), 0-95% non-condesnsing
WEIGHT
3.5 kg (7.7 lbs)
DIMENSIONS
Dish diameter – 47 cm (18.5 inches with Radome) Depth - 17 cm (6.6 inches)

SECURITY

ENCRYPTION
56-bit DES, FIPS-197 128-bit AES
