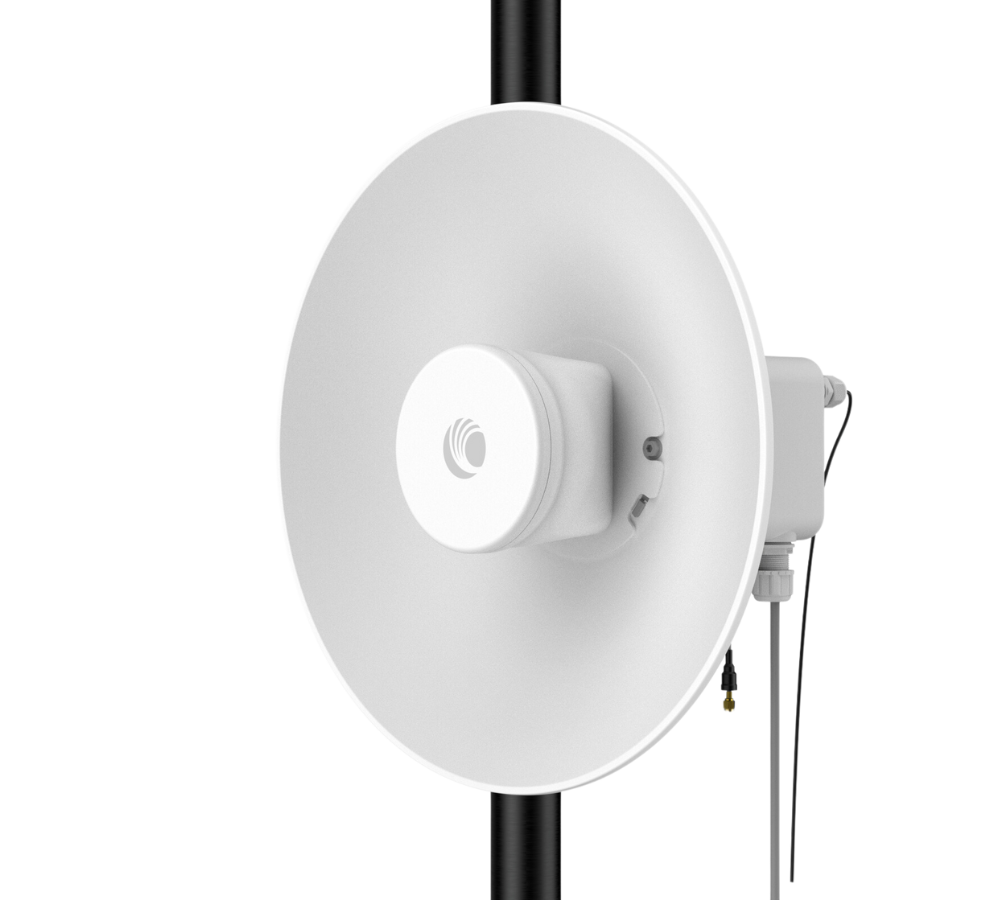

PMP 450v 2×2 Fixed Wireless Subscriber Module and PTP Backhaul

Deliver higher performance to business and residential locations. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth. Broadband service providers seeking to increase capacity and service levels can use the PMP 450v to easily upgrade an existing PMP 450 network by leveraging the higher capacity of the 6 GHz spectrum.

Video: Expand Service to 6 GHz Efficiently with PMP 450v

PMP 450v 2×2 Fixed Wireless Subscriber Module and PTP Backhaul

PMP 450v

Operates from 5.15 to 7.125 GHz

5 GHz to 7 GHz Support in Same Hardware: Easily stock and maintain a single SKU

Ultra-Wide-band support (up to 3 x 40 MHz channels)

Achieve a total capacity increase with more bandwidth to offer

Physical Layer

2x2 MIMO OFDM

Ethernet Interface

100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)

Protocols Used

IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Packets Per Second

100,000

ARQ

Yes

Maximum Deployment Range

Up to 40 miles (64 km), in PMP mode, up to 124 miles (200 km) in PTP mode

Weight

1.2 kg (2.6 lb) radio only; 4.0 kg (8.8 lb) with dish & bracket

Dimensions (Dia x Depth)

469 mm diameter x 365 mm depth (18.5 in x 14.3 in)

Encryption

FIPS-197 128-bit AES , 256-bit AES (requires optional license)
