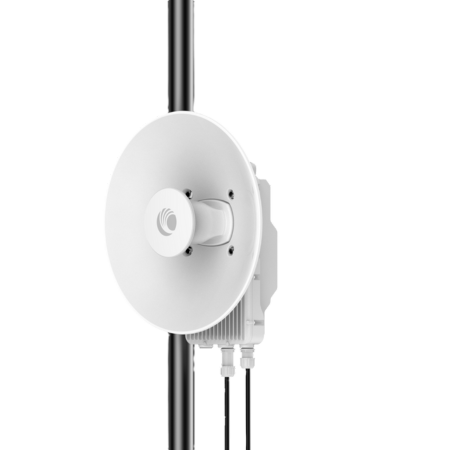

PMP 450v 4x4 Fixed Wireless Subscriber Module and PTP Backhaul

Deliver higher performance to business and residential locations while extending the life of deployed PMP 450 gear. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth. Broadband service providers seeking to increase capacity and service levels can use the PMP 450v to easily upgrade an existing PMP 450 network by leveraging the higher capacity of the 6 GHz spectrum.

Video: Expand Service to 6 GHz Efficiently with PMP 450v

PMP 450v 4×4 Fixed Wireless Subscriber Module and PTP Backhaul

PMP 450v

Operates from 5.15 to 7.125 GHz

Easily stock and maintain a single SKU, maintain existing 5 GHz deployment and expand into 6 GHz

Ultra-Wide-band support (up to 2x100 MHz channels)

Achieve a total capacity increase with more bandwidth to offer

Physical Layer

2x2 MIMO OFDM

Ethernet Interface

100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)

Protocols Used

IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Packets Per Second

100,000

ARQ

Yes

Maximum Deployment Range

Up to 40 miles (64 km), in PMP mode, up to 124 miles (200 km) in PTP mode

Weight

4.5 kg (9.9 lbs), 6.5 kg (14.3 lbs) with bracket

Dimensions (Dia x Depth)

462 mm (diameter) x 264 mm (18.1" diameter x 10.4" depth)

Encryption

FIPS-197 128-bit AES , 256-bit AES (Requires Optional License)
