PTP 550 is a Point to Point Gigabit throughput solution based on 802.11ac Wave 2 operating in 5 GHz wireless space, addressing the gigabit capacity needs for high speed backhaul solutions in short range and middle range applications provides up to 1.36 Gbps throughput with ARQ and asymmetric non-contiguous channel aggregation across 5 GHz band. The PTP 550 solution draws its attributes from Cambium Networks’ Point to Point products such as PTP 650/670 and PTP 450i. Each PTP 550 radio is enclosed in a rugged IP66/67 rated metal enclosure, which protects the radio from extreme conditions and solar radiation.
PTP 550
PTP 550 Features Dynamic Channel Selection (DCS), AES, Carrier Aggregation & 1.4 Gbit Capacity
Frequency
5.15 GHz to 5.96 GHz
Throughput
Up to 1.36 Gbps
Latency
2.2-6 msec
asymmetric non-contiguous channel aggregation
5 GHz spectrum, AES 128 Encryption
Industry Standards
This product is FCC approved
Dynamic Channel Selection (DCS)
With Dynamic Channel Selection, 550 systems constantly optimize the channel of operation to maximize link reliability and performance. Responding to the radio interference environment, PTP 550 will search for the clearest spectrum and move to it seamlessly. The customer benefits from best available throughput with limited spectrum in the most challenging environments.
RF Bands
Wide-band operation 5.170 to 5.980 GHz (Allowable frequencies and bands are dictated by individual country regulations)
Channel Bonding
Each channel can have independent channel bandwidth that provides for flexibility in channel selection, band selection and address throughput requirements. Using two 80 MHz channel and achieves 1.36 Gbps.
PTP 550
Specifications
RF BANDS
Wide-band operation 5.170 to 5.980 GHz (Allowable frequencies and bands are dictated by individual country regulations)
CHANNEL SIZES
Dual independent channels, each channel configurable as 20, 40 & 80 MHz
SPECTRAL EFFICIENCY
8.5 bps/Hz maximum
CHANNEL SELECTION
Fixed frequency or Dynamic Channel Selection (DCS)*
PROTOCOL
IEEE 802.3
LATENCY
1-3 milliseconds one direction
PACKET CLASSIFICATION
Layer 2 and Layer 3 IEEE 802.1p, Ethernet priority
NETWORK MANAGEMENT
T In-band management
SYSTEM MANAGEMENT
IPv6/IPv4 dual-stack management support SNMPv2c, https, WPA2-PSK Online spectrum analyzer (no impact on payload traffic)
DIMENSIONS

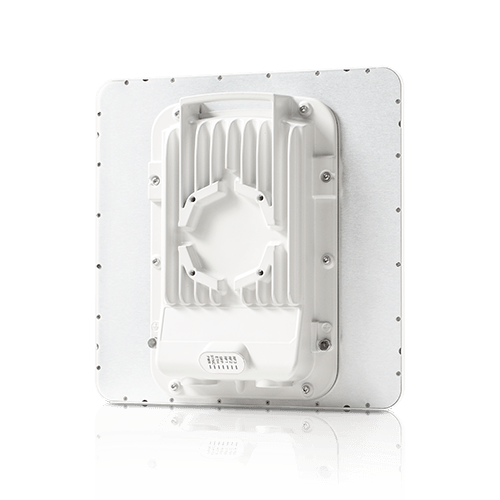

Integrated Outdoor Unit (ODU): Width 305mm (12”), Height 305mm (12”), Depth 56mm (2.2") Connectorized Outdoor Unit (ODU): Width 177mm (7”), Height 280mm (11”), Depth 89mm (3.5”)
WEIGHT
Integrated Outdoor Unit (ODU): 2.2 kg (4.85 lbs) including bracket Connectorized Outdoor Unit (ODU): 1.6 kg (3.5 lbs) including bracket
DUST- WATER INTRUSION PROTECTION
IP66 and IP67
