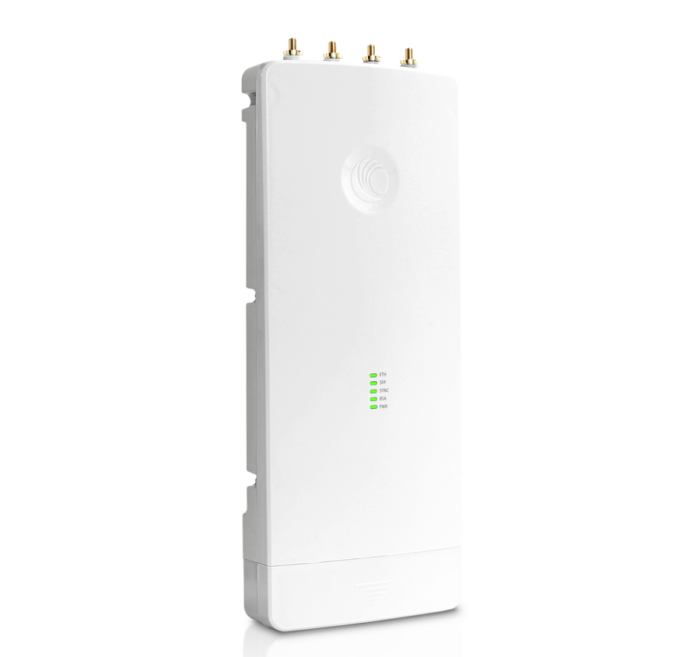

ePMP 3000

Cambium Networks’ ePMP™ product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO). The ePMP 3000 is a 4×4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.

Key Features

Frequency Reuse

Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.

Unmatched Performance and Scalability

With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.

Industry-Leading Interference Tolerance

The intelligent filtering capability on the receive side makes ePMP 3000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.

Industry-Leading Spectral Efficiency

MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.

Channel Spacing

Configurable on 5 MHz increments

Frequency Range

4910–5980 MHz (exact frequencies as allowed by local regulations)

Channel Width

10 | 20 | 40 | 80 MHz (NOTE: 10 MHz bandwidth is supported only with Force 300-19R SM. Also note that 11n SM's can connect and operate in 10MHz)

MAC (Media Access Control) Layer

Cambium Proprietary

Physical Layer

4x4 MUMIMO/OFDM

Ethernet Interfaced

100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port

Powering Methods Supported

56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter

Protocols Used

IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

Network Management

HTTPs, SNMPv2c, SSH

VLAN

802.1Q with 802.1p priority

Subscribers per Sector

Up to 120

ARQ

Yes

Nominal Receive Sensitivity (w/FEC) @20 MHz Channel

MCS 0 , -92 MCS 8 supported by Wi-Fi -68

Nominal Receive Sensitivity (w/FEC) @40 MHz Channel

MCS0, -89 MCS9, -64

Nominal Receive Sensitivity (w/FEC) @80 MHz Channel

MCS0, -86, MCS9 - 61

Modulation Levels (Adaptive)

MCS0 (BPSK) to MCS 9 (256 QAM 5/6)

GPS Synchronization

Yes, via Internal GPS or Cambium Sync (Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna)

Quality of Service

Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support*

DSO*

Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel

Fast DFS*

Change to alternate radar free channel with background availability check
