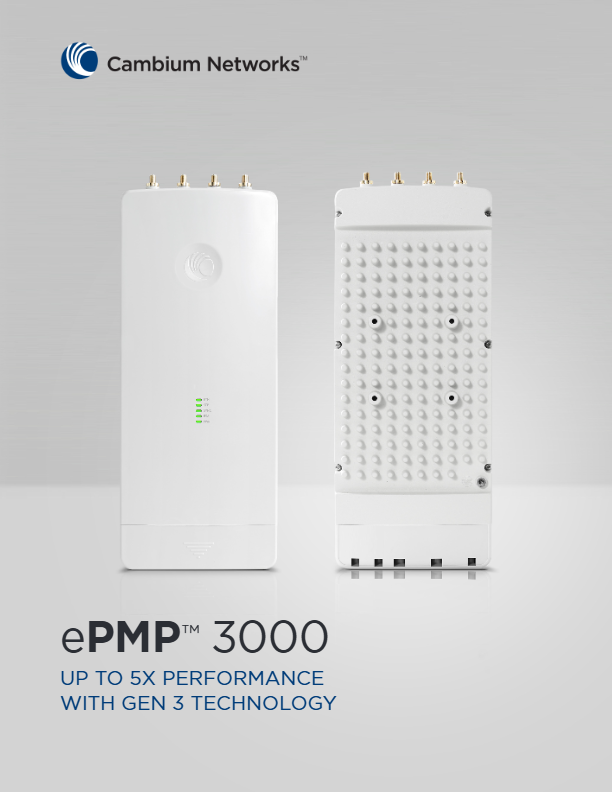

In continuing tradition of affordable performance without compromise, the ePMP3000 Access point and subscriber portfolio brings the combined feature set of ePMP1000/2000 and adds industry leading throughput with the ePMP3000.
In continuing tradition of affordable performance without compromise, the ePMP3000 Access point and subscriber portfolio brings the combined feature set of ePMP1000/2000 and adds industry leading throughput with the ePMP3000.
Cambium is happy to be at your service!
XR-320Dual radio wall mount AP with 4 port Gigabit Ethernet switch.
|
X2-120Value-driven dual radio 802.11ac AP.
|
XD2-230High performance 802.11ac Wave 2 APs with MU-MIMO technology.
|
XD2-240High performance 802.11ac Wave 2 APs with MU-MIMO technology.
|
XD4-130Extreme density, 4-radio 802.11ac Wave1/Wave2 APs with 100s of client support on a single unit.
|
XD4-240Extreme density, 4-radio 802.11ac Wave1/Wave2 APs with 100s of client support on a single unit.
|
XA4-240Plenum rated extreme density 4-radio 802.11ac Wave2 AP with external antennas.
|
|
|---|---|---|---|---|---|---|---|
| Wi-Fi Radios | 2 | 2 | 2 | 2 | 4 | 4 | 4 |
| BLE Radio | No | No | Yes | Yes | No | Yes | No |
| Total Radios | 2 | 2 | 3 | 3 | 4 | 5 | 4 |
| Wi-Fi Technology | 2×2 802.11ac Wave1 | 2×2 802.11ac Wave1 | 3×3 802.11ac Wave2 | 4×4 802.11ac Wave2 | 3×3 802.11ac Wave1 | 4×4 802.11ac Wave2 | 4×4 802.11ac Wave2 |
| Antennas | Internal | Internal | Internal | Internal | Internal | Internal | External |
| Software Defined Radios | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Controller | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated |
| Uplinks | 1–1GbE | 1–1GbE | 2-1GbE | 2-1GbE | 2-1GbE | 1-2.5GbE + 1-1GbE | 1-2.5GbE + 1-1GbE |
| Max Number of Clients | 512 | 512 | 480 | 480 | 780 | 780 | 960 |
| Total Wi-Fi Bandwidth | 1.2Gbps | 1.2Gbps | 3.9Gbps | 6.9Gbps | 5.2Gbps | 13.8Gbps | 13.8Gbps |
| Example Uses | Hotel/Dorms/ Offices | Hotel/Dorms/ Retail | Offices/Classrooms/Hospitals/ Retail |
Offices/Classrooms/Hospitals/ Retail |
Dense Offices/Classrooms/Conference rooms | Dense Offices/Classrooms/Conference rooms | Convention Centers/Airports/Train Stations |
XH2-120Ruggedized dual radio 802.11ac AP for harsh outdoor environments
|
XH2-240High performance Wi-Fi for harsh environments
|
Outdoor EnclosuresHatdened enclosure to convert indoor AP for outdoor use. |
|
|---|---|---|---|
| WiFi Radios | 2 | 2 | Up to 4 |
| BLE Radios | No | Yes | Varies |
| Total Radios | 2 | 3 | Up to 5 |
| WiFi Technology | 2×2 802.11ac Wave1 | 4×4:4, 802.11ac Wave 2 | 802.11ac Wave 1/Wave2 |
| Antennas | External | External | Internal |
| Software Defined Radios | Yes | Yes | Varies |
| Controller | Integrated | Integrated | Integrated |
| Uplinks | 1-2GbE | 1-2GbE | Up to 3.5GbE |
| Max Number of Clients | 512 | 512 | Up to 780 |
| Total Wi-Fi Bandwidth | 1.7Gbps | 6.9Gbps | Up to 13.8Gbps |
| Example Uses | General outdoors/Stadiums/Arenas | General outdoors/Freezers/Arenas | General outdoors/Stadiums/Arenas |
