Wi-Fi 6 for Hospitality, MDUs and Dormitories

Cambium Networks Wi-Fi 6 wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box.
• Wallplate 802.11ax, 2×2
• 3 x GbE Ethernet, one with PoE out
• RJ45 electrical pass-through ports
• BLE/Zigbee/Thread/Matter
• Limited Lifetime Warranty

Video: Unboxing the XV2-22H

Sneak Peek at the XV2-22H

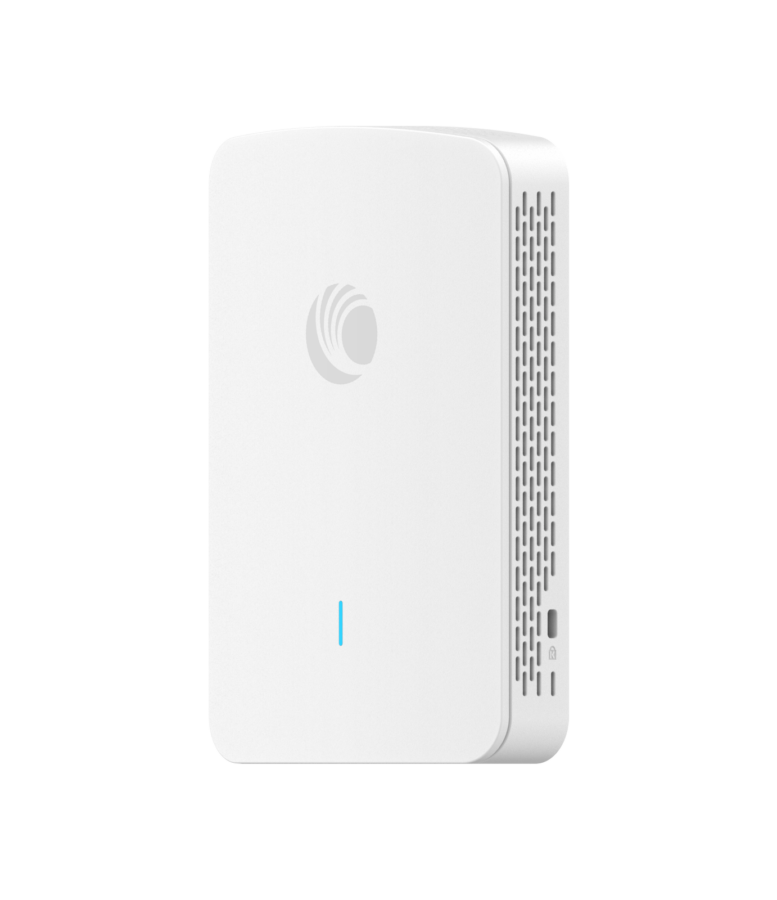

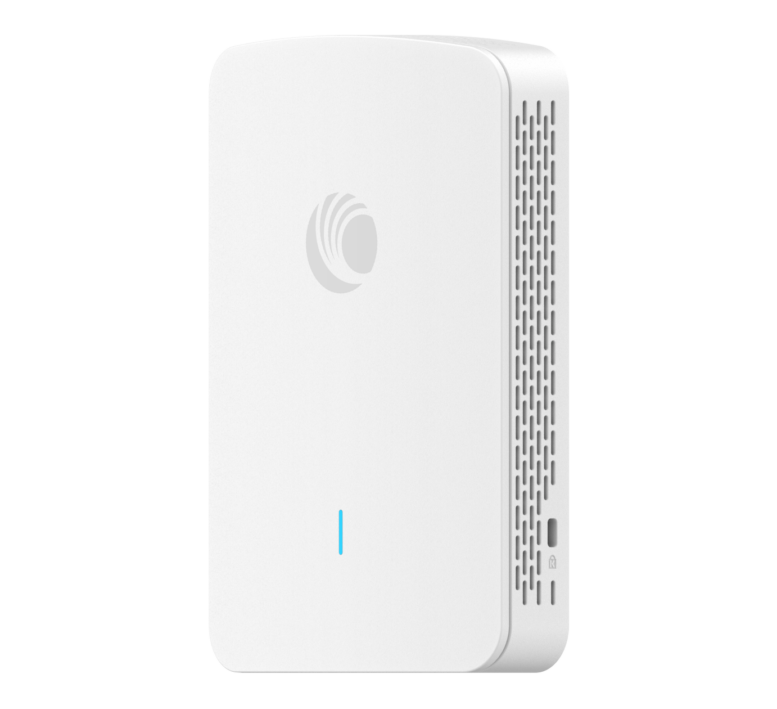

XV2-22H Wi-Fi 6 Wall Plate Access Point

Specifications

Access Point Specs

Radios
1 x 5 GHz radio (802.11ax Wi-Fi 6), 2x2:2
1 x 2.4 GHz 802.11ax Wi-Fi 6), 2x2:2
1 x 802.15.4 or 1 x 802.15.1 IoT transceiver, multi-protocol
Wi-Fi
802.11ax Wi-Fi 6
SSID Security
WPA3-SAE, WPA3-Enterprise, WPA2 (802.11i), WPA2 AES, WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Antenna
Internal omni-directional 2.4 GHz: 4.47 dBi 5 GHz: 5.56 dBi IoT Antenna Gain: 5.18 dBi

Network Specs

WLAN
16 WLAN profiles per radio
128 clients per radio
Authentication Encryption
802.1x EAP-SIM/AKA/AKA’/FAST, EAP-PEAP, EAP-TTLS, EAP-TLS/MSCHAPv2, PEAPv0/ PEAPv1 MAC authentication to local database (on AP, on Controller) or external RADIUS. MAC auth fallback to guest portal
Subscriber QoS
802.11e/WMM QoS. DSCP/ToS mapping
Fast Roaming
802.11r, OKC, cnMaestro assisted roam
