Cloud and On-Premises Management

X7-53X Wi-Fi 7 AP operates using Cambium’s cnMaestro™ Network Management, accessible on both cloud and on-premises platforms. Aligned with Cambium’s ONE Network, cnMaestro facilitates the management of all devices through a user-friendly interface, streamlining control from backhaul to edge devices. This enables you to start managing your network right away, reducing training and troubleshooting time.

Fast Installation

The X7-53X Wi-Fi 7 AP streamlines installation, saving you time and money. Its multi-functional mounting system easily installs the access point over multiple telecom and electrical junction boxes, on a suspended drop ceiling system, or to any flat surface. The recessed Ethernet port and trim mounting bracket enables an aesthetically pleasing installation and final finish. Plus, the new Wi-Fi 7 junction box bracket is backwards compatible with the XV3-8, XE3-4, and XV2-2X.

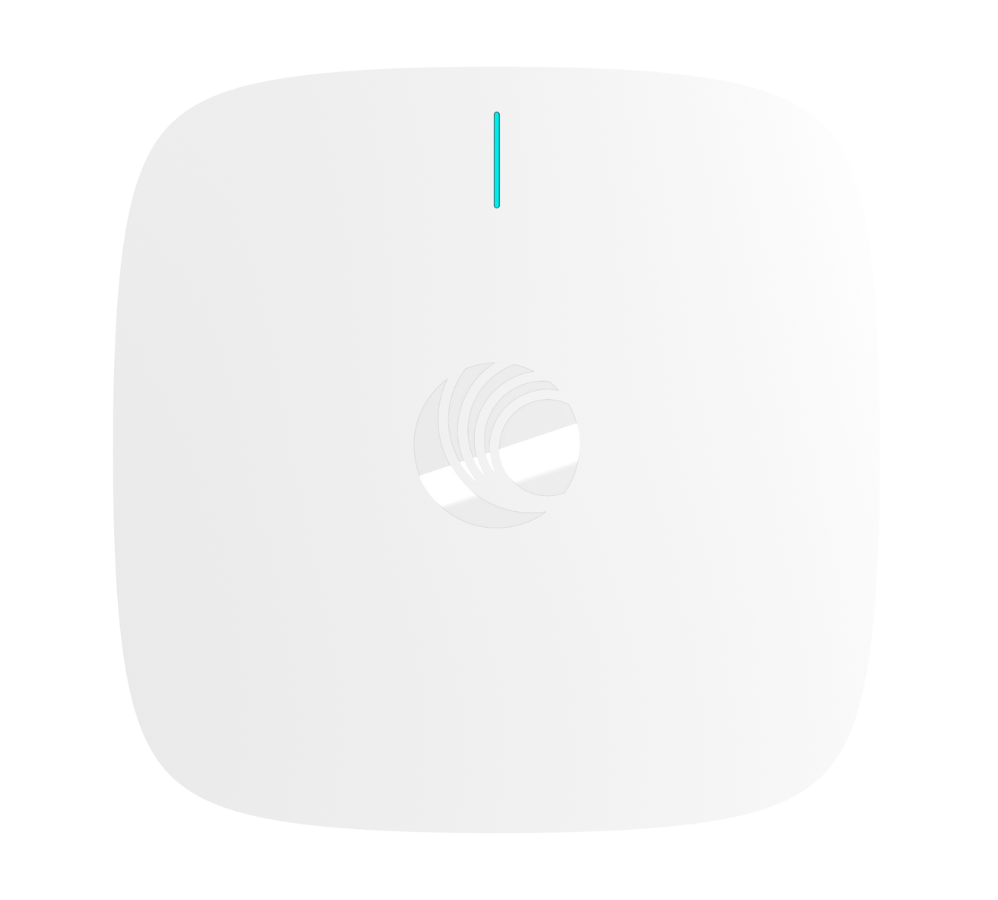

X7-53X Wi-Fi 7 Indoor Access Point

Specifications

Access Point Specs

Radios
2.4 GHz 2x2:2 with 802.11 b/g/n/ax/be
5 GHz 4x4:4 with 802.11 a/n/ac/ax/be
IoT Radio
Built-in BLE or 802.15.4 radio
Max transmit power 20 dBm with the integrated 3 dBi omnidirectional antenna gain
Zigbee, Matter, and Thread support
Supported Data Rates
802.11be: 7.3 to 5,764 Mbps
802.11ax: 7.3 to 4,804 Mbps
802.11ac: 6.5 to 3,466 Mbps
802.11n: 6.5 to 600 Mbps
802.11a/g and a: 6 to 54 Mbps
802.11b: 1 to 11 Mbps

Network Specs

Security & Authentication
Open, WPA-TKIP, WPA2-AES with PSK, ePSK and Enterprise, WPA3 with PSK (WPA3-SAE), ePSK, Enterprise, Enterprise-CNSA, OWE (Enhanced Open), OSEN and PMF (802.11 W), MAC authentication with local database or external database using RADIUS protocol, 802.1X with EAP-TTLS, EAP-TLS / MSCHAPv2, PEAPv0 / PEAPv1 / EAP-PEAP / EAP-SIM/AKA/AKA’/FAST, MAC auth fallback to guest portal, Hotspot WEB authentication
SSID
16 SSIDs per radio, 32 SSIDs per AP
SSID scheduling
Client Capacity
768 clients per AP, 256 on 2.4 GHz and 512 on 5 GHz
Max client connections limit per SSID / radio / device
