The cnMatrix platform of switches provides:

  • Non-blocking, line-rate architecture with fully-featured profiling and segmentation
  • Simple and scalable cloud (or on premise) control with cnMaestro™ Network Management
  • Zero-touch deployment that makes installation plug-and-play easy
  • Policy-based automation eliminating manual and time-consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Unified wired, wireless, security, SD-WAN, and fiber solution as part of Cambium’s ONE Network

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX3000 Series offers SFP+ (10 Gbps) or SFP-28 (25 Gbps) fiber uplink ports. The series also comes with dual removable power supplies and features up to 90W of PoE per port. These switches come with a 5-Year Limited Lifetime Warranty

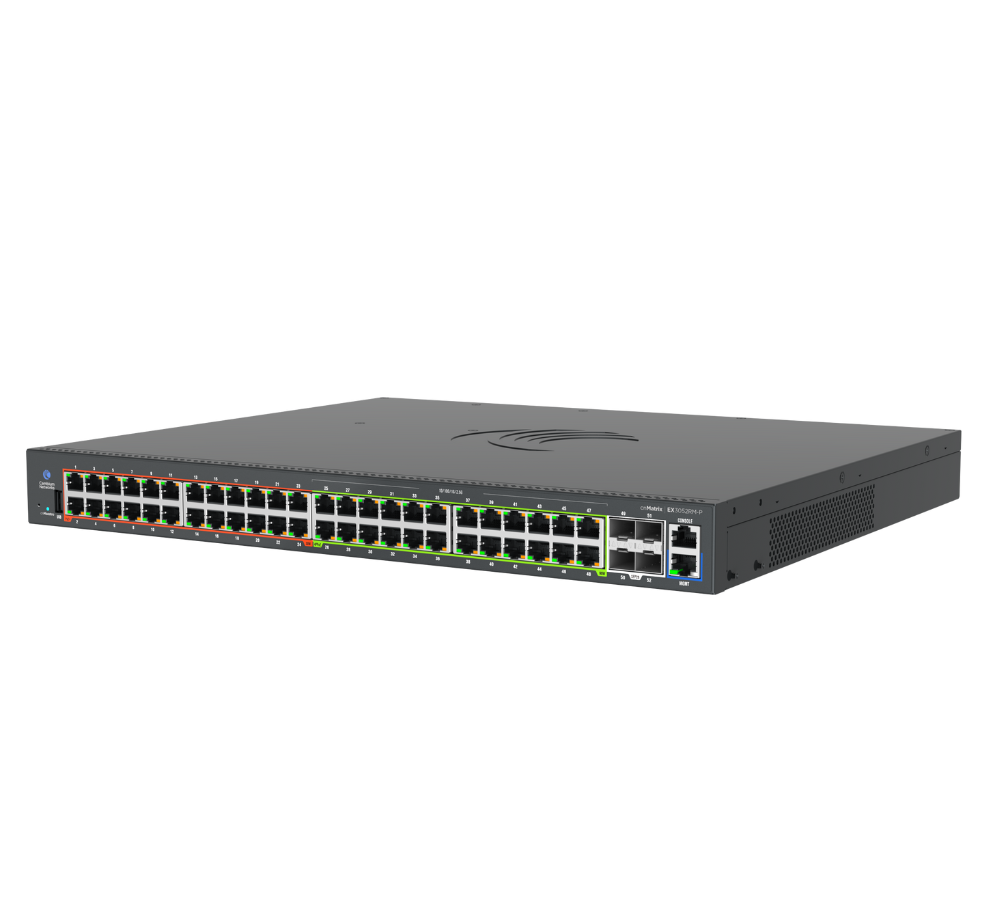

cnMatrix EX3052RM-P

Specifications

Features

Throughput
368 Gbps
Forwarding Rate in Mpps (64 Byte Packets)
120
10 / 100 / 1000 Ports
24
2.5G / 1G Ports
24
PoE+ Enabled Ports 802.3af/at/bt (30W)
24
PoE+ Enabled Ports 802.3af/at/bt (90W)
24

Hardware

Power Supply
CRPS dependant
Max Switch Power (with Traffic)
85.6W
MTBF (Hours)
361,265.17
Weight
6.656 kg (14.67 lb)
Dimensions
4.4 x 37 x 44 cm
CPU Speed
1.2 GHz
LEDs Per Port
Link/Activity, PoE
PoE+ Power Budget
CRPS
