Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4600 series of subscriber modules (SM) meets this demand offering high performance and low latency across both PMP and PTP deployments.

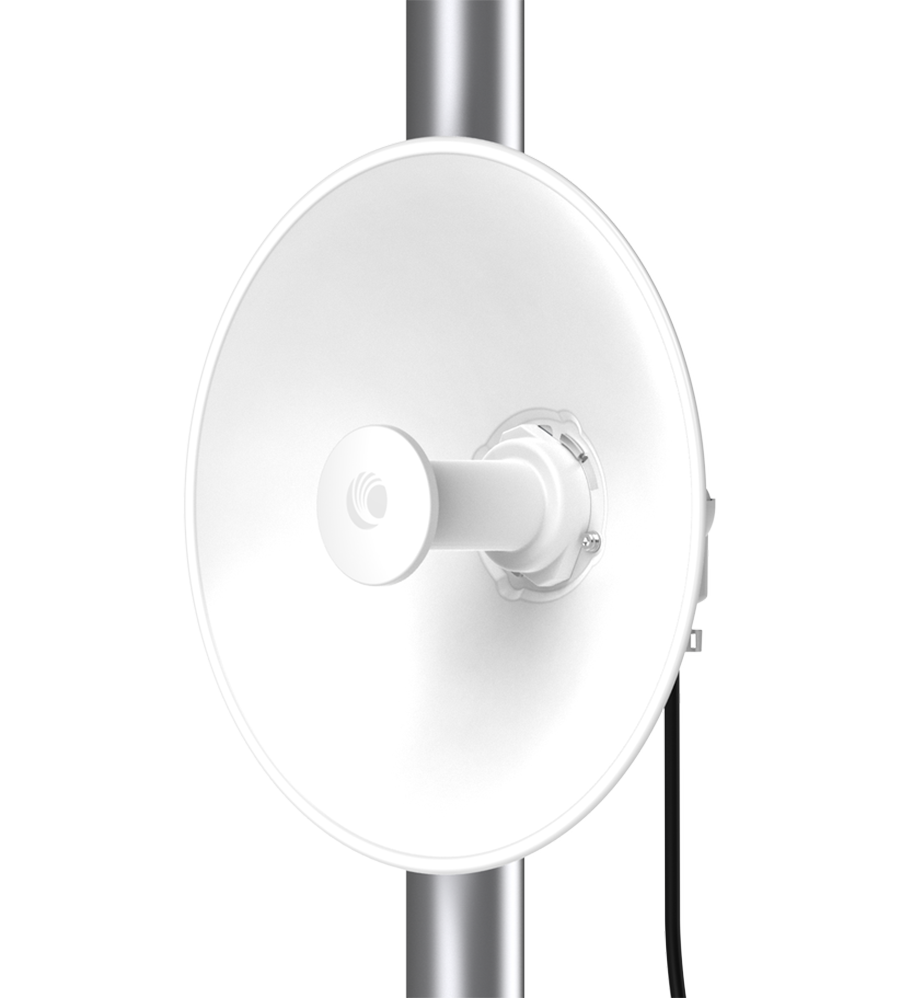

ePMP 6 GHz Force 4625 Subscriber Module
The Force 4600 Series of SM’s is available in two form factors: the Force 4600C connectorized and the Force 4625 with integrated antenna.
Both models include the following:
- High capacity and latencies less than 5 ms when using ePTP technology.
Proven air interface on top of 802.11ax technology - Interoperability with the ePMP 4600 Series AP which uses MU-MIMO to achieve more than 4 Gbps per sector by transmitting to two ePMP 4600 Series SMs simultaneously.
- Security features meeting the requirements of enterprise, industrial, government and service provider users.
Management by Cambium Networks cnMaestro™ management system for easy provisioning, monitoring and upgrades. - Network planning with LINKPlanner and cnHeat.
- 3-year hardware warranty and support from Cambium Networks.
- Each SM comes with a Power over Ethernet injector and pole mount hardware included.
Quick Look:
- Broad selection of high-performance subscriber modules (SM) for point-to-point (PTP) and point-to-multipoint (PMP) fixed wireless broadband applications
- Gbps capacity leveraging 160 MHz channels
- SM in PMP applications interoperates with ePMP 4600 Access Points
- 3-year hardware warranty
Video: ePMP 4600 6 GHz Fixed Wireless Access Point
Gigabit 6 GHz Fixed Wireless is a Reality
“We are on a mission to provide high-quality internet access everywhere we serve. This gives us another tool in the toolkit to do just that,” said Bill Baker, Founder and CEO of Nextlink Internet.
Read the Press Release
6 GHz fixed wireless & Wi-Fi 6E access blanket an outdoor area in São Paulo
Service providers discuss 6 GHz deployment plans and opportunities for Gbps services
What's in the Box and How to Install
ePMP 6 GHz Force 4625 Fixed Wireless Subscriber Module
Specifications
SPECTRUM
Channel Width MHz
20 | 40 | 80 | 160
Proprietary Physical Layer
ePMP air interface with 2x2 MIMO/OFDMA based on 802.11ax underlying technology
Channel Spacing
Configurable in 5 MHz increments
Frequency Range
Wide Band Operation 5925–7125 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) Operation under AFC (Automatic frequency coordination) control in FCC jurisdictions.
PERFORMANCE
ARQ
Yes
Maximum Capacity
1 Gbps
Latency
< 5 ms
Transmit Power Range
+3 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
Ethernet Interface
100/1000 BaseT, rate auto negotiated, 802.3at compliant
Surge Supression*
1 Joule Integrated
Environmental
IP55
Power Consumption
13 W
