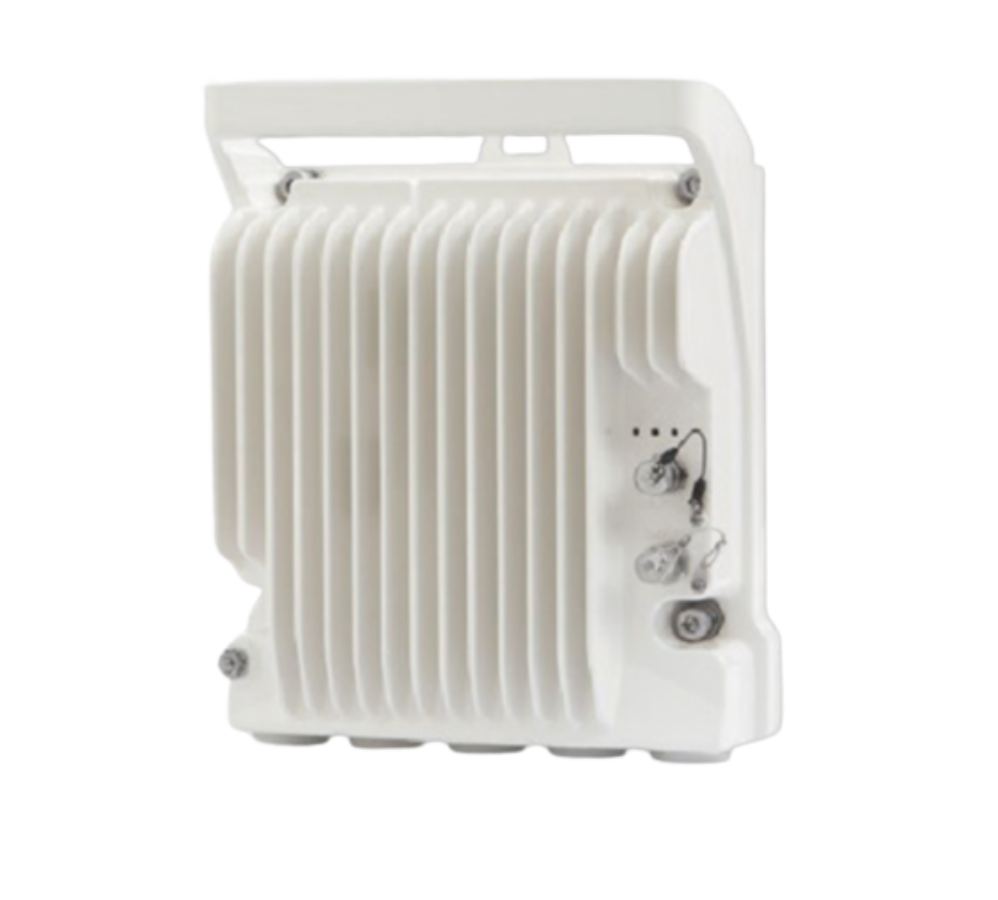

PTP 850CX is a next-generation ultra-high capacity microwave radio designed to meet the increasing demands for reliable, scalable wireless backhaul. As a compact all-outdoor solution, the PTP 850CX delivers multi-gigabit throughput with low latency and high spectral efficiency, enabling wireless ISPs, municipality, public safety, and enterprises to build resilient networks with simplified architecture.
Upgrade from PTP 820C or PTP 820S to PTP 850CX
PTP820C to PTP 850CX
PTP820S to PTP 850CX
PTP 850CX
Specifications
RADIO
Radio Specs
6-42 GHz
1+0 up to 4+0 single/dual polarization, 1+1/2+2 HSB, 2+0 XPIC, 2x2+0 east/west single/dual polarization*
4+0 layer aggregation
Enhanced multi-carrier ABC (up to 2+0)
Channel bandwidth: 14 to 224 MHz
ETHERNET
Ethernet Interfaces
Port 1: DC port
Port 2: RJ45 - Electric 100 Mbps/1 Gbps traffic/PoE
Port 3: SFP+ - 1/2.5/10 traffic
Port 4: SFP28 - 1/10/25G traffic
Port 5: RJ-45 - Management/protection/100 Base-T
Ethernet Features
MTU – 9,612 Bytes
Up to 1024 Ethernet services plus one pre-defined management service
VLAN add/remove
Y.1731 Ethernet OAM; Y1.731 Ethernet bandwidth notification
TECHNICAL SPECIFICATIONS
Mechanical
270 mm x 230 mm x 98 mm
5.3 kg
Environmental
-33°C to +55° ( -27°F to +131°F)
Power Input Specifications
Standard Input: -48 VDC, PoE
DC Input range: -40.5 to -60 VDC
