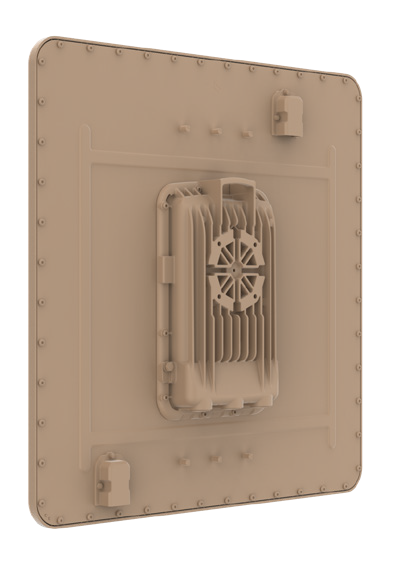

The PTP 45700 Beam Steering ODU with integrated Smart Antenna provides electronic beamforming that allows for easy tactical installation and best-in-class interference mitigation in addition to the industry-leading spectral efficiency and processing capabilities of the PTP 700 family of products.
PTP 45700 Beam Steering ODU
The PTP 700 Beam Steering outdoor unit (ODU) with integrated smart antenna enables rapid antenna alignment and provides secure communications in hostile environments.
Frequency
4.4 GHz to 5.875 GHz wideband radio
High-gain antenna
up to 22 dBi at boresight
Antenna pattern
Wide 120° azimuth and 30° elevation antenna, allowing for quick, tactical installation by pointing in the general direction of the desired radio.
Efficient
Reduced system cost (30% savings) and weight (60% lighter) without mechanical positioner
Industry Standards
Rugged design, tested to MIL-STD-810H and IP66/67 environmental specifications
High Performance
Dynamic Spectrum Optimization
The Beam Steering ODU significantly reduces link setup time by automatically and precisely steering the antenna radiation pattern.
Rapid Antenna Alignment
Antenna alignment can now be completed in a matter of seconds instead of the minutes required when using manual alignment or electromechanical positioners. Beam steering combines the ease of sector antenna deployments with the performance of highly directional antennas. The PTP 700 beam steering capabilities can also steer RF nulls at interferers, increasing the signal to noise ratio (SNR) and improving communications performance.
Dynamic Spectrum Optimization™(DSO)
The challenging nature and complexity of these missions requires flexibility from systems that allow spectrum managers, network operators and implementation managers to negotiate changing program landscapes while staying within budgetary parameters. Dynamic Spectrum Optimization™ (DSO) is a unique capability offered by Cambium Networks that enables optimization of link performance by automatically sampling and changing channels to avoid interference without affecting link service. See the DSO White Paper for full details.
PTP 45700 Beam Steering ODU
Specifications
RF BANDS
Wide-band operation 4.400 to 5.875 GHz
CHANNEL SIZES
5, 10, 15, 20, 30, 40, and 45 MHz channels
SPECTRAL EFFICIENCY
10 bps/Hz maximum
CHANNEL SELECTION
By Dynamic Spectrum Optimization™ (DSO) or manual intervention; automatic selection on start-up and continual self-optimization to avoid interference
MAXIMUM TRANSMIT POWER
29 dBm
SYSTEM GAIN
Up to 166 dB
MODULATION / ERROR CORRECTION
Fast Preemptive Adaptive Modulation featuring 13 modulation / FEC coding levels ranging from BPSK to 256 QAM dual payload MIMO
ANTENNA
Integrated flat panel Boresight gain (dBi): 21.4 @ 4.4, 22.1 @ 5.0, 21.0 @ 5.875 GHz + 60 / - 60º gain (dBi): 14-16 dBi
SECURITY
128/256-bit AES Encryption (optional) HTTPS and SNMPv3, user authentication and RADIUS support Identity-based user accounts Configurable password rules Event logging and management; optional logging via syslog disaster recovery and vulnerability management FIPS-197 compliant
PROTOCOL
IEEE 802.3
LATENCY
1 – 3 ms one-direction latency
QoS
Extensive QoS supporting up to 8 Queues (PTP mode) and 4 Queues (HCMP mode)
PACKET CLASSIFICATION
Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority
PACKET PERFORMANCE
Line rate ( >850K packets per second)
TIMING TRANSPORT
Synchronous Ethernet; IEEE 1588v2
NETWORK MANAGEMENT
In-band and out-of-band management (OOBM)
SYSTEM MANAGEMENT
IPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS SNMP v1, v2c and v3, MIB-II and proprietary PTP MIB Online spectrum analyzer (no impact on payload traffic or network operation)
INSTALLATION
Built-in audio and graphical assistance for link optimization (when automatic beam steering is disabled)
DIMENSIONS
581 x 595 x 84 mm (22.9 x 23.4 x 3.3 in)
WEIGHT
9.1 kg (20.1 lbs)
OPERATING TEMPERATURE
-40° to 60°C (-40° to 140°F)
SHOCK, VIBRATION, TEMPERATURE, HUMIDITY
MIL-STD-810H
DUST-WATER INTRUSION PROTECTION
IP66 and IP67
REGULATORY PROTECTION AND SAFETY
UL60950-1 and -22; IEC60950-1 and -22; EN60950-1 and -22; CSA-C22.2 No. 60950-1; CSA-C22 No. 60950-22-7; CB approval for Global
RADIO
4.9 GHz: FCC Part 90Y, RSS-111 5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 247 Issue 1; EN 302 502; EN 301 893; EN 302 625; Eire ComReg 02/71R1, UK Approval to IR2007
EMC
Europe – EN 301 489-1 and -17; FCC Part 15B Class B
