Lightning Protection Unit

Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment, especially when mounted as high as 300m.

The Cambium Networks Lightning Protection Unit designed for the PTP 650 Series are ruggedized to operate in the toughest environments.

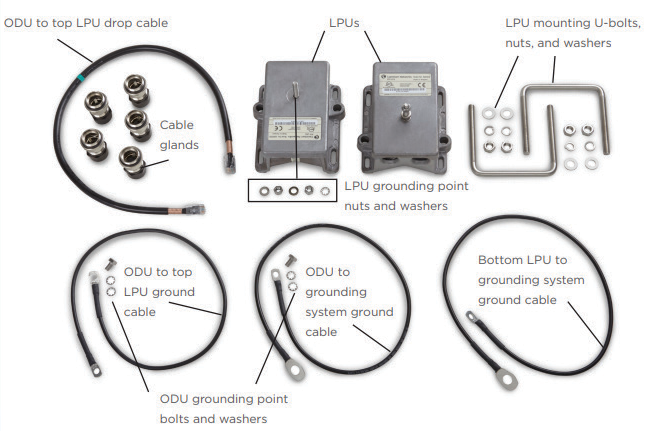

Lightning Protection Unit

Specifications

Transfer Rate
1000 Base T
Connectors
RJ 45
Protection Mode
Line-to-line and line-to-ground
Response Time
5 nanoseconds typical
Mounting
Pole mount 1-3” (25-75 mm) or wall mount
Dimensions (Including Glands)
6.3” Length (16 cm), 4” (10 cm) Width, 3.5” (9 cm) Height
Weight
1.5 lbs (700 g)
Wing Loading
150 mph (242 kph)
Operating Temperature
-40° F (-40° C) to +140° F (+60° C)
Humidity
100% condensing
Surge Rating
10/1000us 150 Amps min, 8/20us 1500 Amps min
Environmental Rating
IP66/ IP67 (Dust and Water Intrusion Protection)
