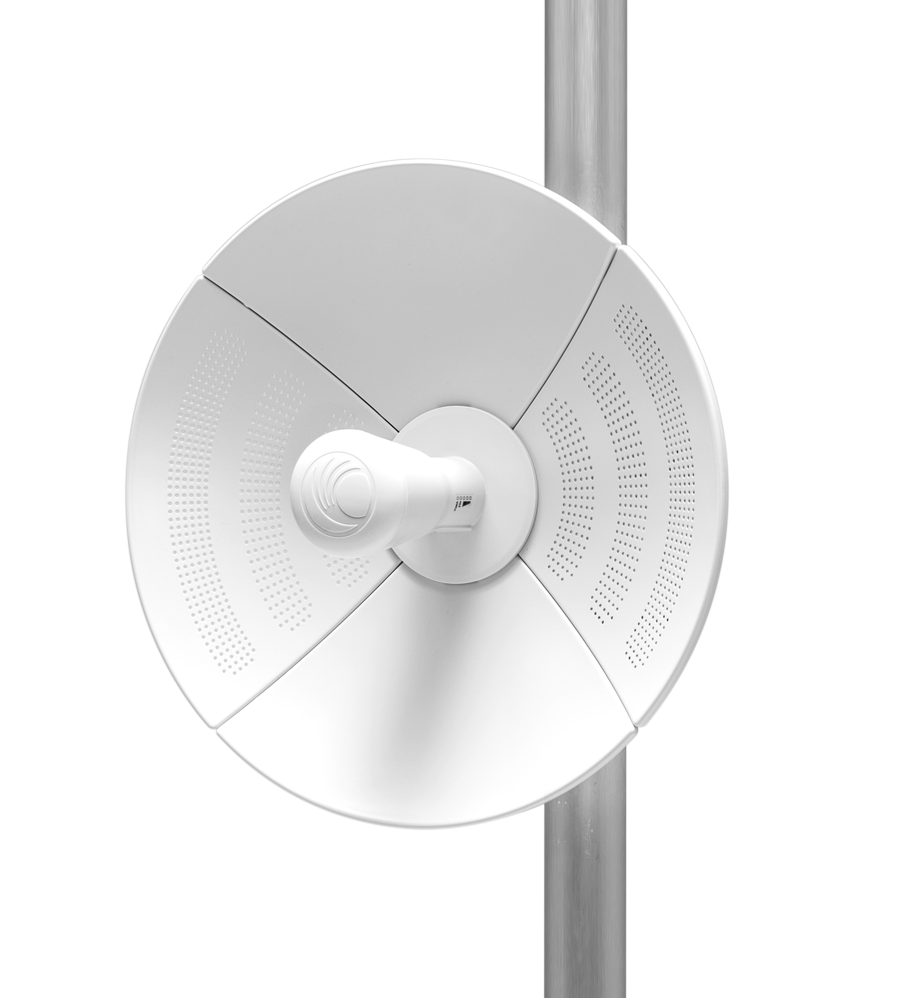

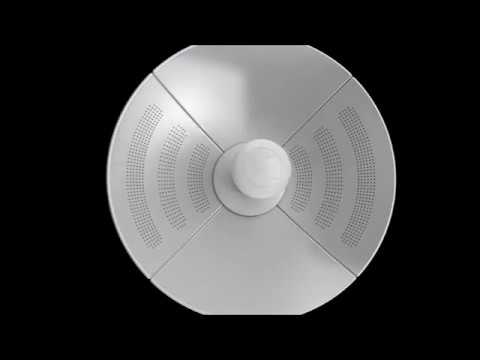

The ePMP™ Force 190 provides up to 200 Mbps throughput and low latency with a high gain antenna in a compact design.
ePMP Force 190
Specifications
SPECTRUM
Channel Spacing
Configurable on 5 MHz increments
Frequency Range
4910 - 5970 MHz, 4.9 only for ROW
Channel Width
5 | 10 | 20 | 40 MHz
INTERFACE
MAC (Media Access Control) Layer
Cambium Proprietary
Physical Layer
2x2 MIMO/OFDM
Ethernet Interface
10/100 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN
802.1Q with 802.1p priority
PERFORMANCE
ARQ
Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel
MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel
MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range
-15 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Gain
22dBi
PHYSICAL
Surge Suppression
1 Joule Integrated
Environmental
IP55
Temperature
30°C to +50°C (-22°F to +122°F)
Weight
1.0 kg (2.2 lbs)
Wind Survival
125 km/hour (78 mi/hour)
Dimensions (Dia x Depth)
35cmx28cm(13.5inx11.2in)
Pole Diameter Range
3.8 cm – 6.4 cm (1.5 in – 2.5 in)
Power Consumption
8 W Maximum, 5 W Typical
Input Voltage
12 to 30 V
SECURITY
Encryption
128-bitAES(CCMPmode)
CERTIFICATIONS
FCCID
Z8H80FT0031
Industry Canada Cert
109W-0031
CE
5.4 GHz EN 301 893 V2.1.1 5.8 GHz EN 302 502 V2.1.1
