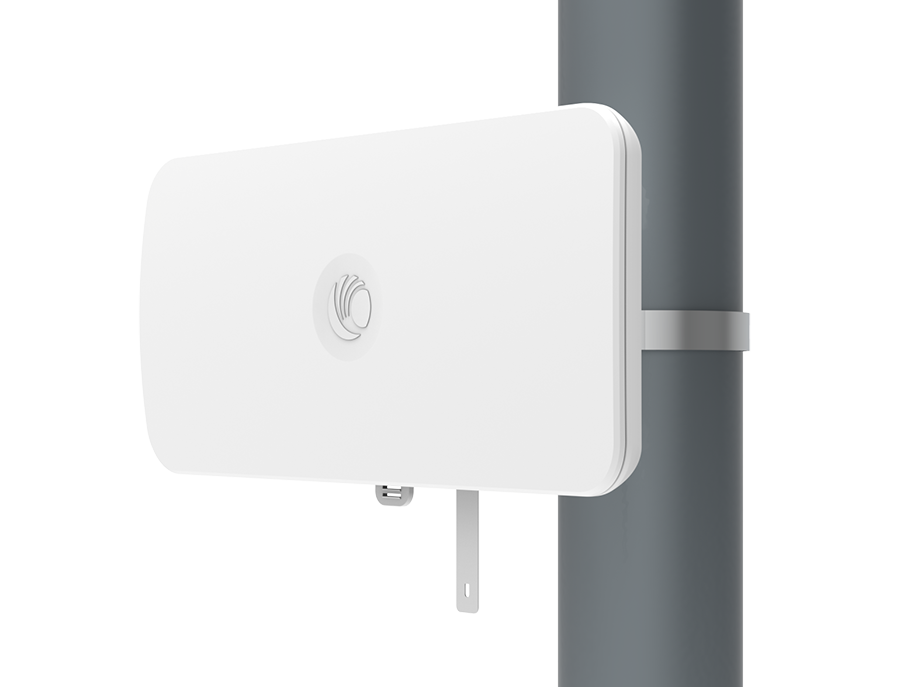

ePMP 6 GHz Force 4616 Series Subscriber Module

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. Cambium Networks ePMP™ Force 4616 Subscriber Modules (SM) meet this demand offering high performance and low latency across both point-to-multipoint (PMP) and point-to-point (PTP) deployments.

ePMP 6 GHz Force 4616 Subscriber Module

Features:

  • Offers high capacity and latencies of less than 5 ms when using ePTP technology
  • Interoperable with ePMP 4600 Series Access Points (AP)
  • Provides 1 Gbps capacity in PTP applications, meeting the requirements of enterprise, industrial, government, and service provider users
  • Managed by Cambium Networks cnMaestro™ Network Management System for easy provisioning, monitoring, and upgrades
  • Network planning with LINKPlanner and cnHeat
  • Cambium Networks’ 3-year hardware warranty and support
  • Includes a power over Ethernet (PoE) injector and pole mount hardware
  • The Force 4616 SM is offered with a 16 dBi integrated dish antenna.


ePMP 4616 SM Quick Look:

  • High-performance subscriber modules for
    PTP and PMP fixed wireless broadband
    applications
  • 1 Gbps capacity leveraging 160 MHz
    channels
  • Interoperates in PMP applications with
    ePMP 4600 APs
  • 3-year hardware warranty

Video: ePMP 4600 6 GHz Fixed Wireless Access Point

Gigabit 6 GHz Fixed Wireless is a Reality

“We are on a mission to provide high-quality internet access everywhere we serve. This gives us another tool in the toolkit to do just that,” said Bill Baker, Founder and CEO of Nextlink Internet.
Read the Press Release

6 GHz fixed wireless & Wi-Fi 6E access blanket an outdoor area in São Paulo

Read the Press Release

Service providers discuss 6 GHz deployment plans and opportunities for Gbps services

Join the Conversation

ePMP 6 GHz Force 4616 Series Subscriber Module

Specifications

SPECTRUM

Channel Width MHz
20 | 40 | 80 | 160 MHz
Proprietary Physical Layer
ePMP air interface with 2x2 MIMO/OFDMA
Channel Spacing
Configurable in 5 MHz increments
Frequency Range
Force 4616: 5925–7125 MHz*

PERFORMANCE

ARQ
Yes
Geolocation
Built-in or external USB GPS receiver (optional)
Transmit Power Range
+3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
QoS (Quality of Service)
Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast, and station priority

PHYSICAL

Surge Supression
1 Joule Integrated
Environmental
IP55
Temperature
-30°C to 55°C (-22°F to 131°F)
Power Consumption
13W (up to 15W in extreme cold temperatures when heater is activated)
Antenna
16 dBi Integrated Dish

*Allowable frequencies and bands are dictated by individual country regulations. Operation under AFC (Automatic Frequency Coordination) control in FCC jurisdictions.
