Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. The ePMP 4600 Access Point series is the fourth generation based on 802.11ax technology. ePMP 4600 Access Points series interoperate with Force 4600 Subscriber Modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP 4600 Access Point series to deliver consistently high-quality service plans to a large number of end users.

Key Specifications

  • High-performance, scalable and reliable access points for fixed wireless broadband
  • Features MU-MIMO for up to 4 Gbps in 6 GHz
  • Low TCO with three-year hardware warranty
  • Interoperable with all Force 4600 radios
  • Cloud or on-premises network management with cnMaestro

Plan for New Spectrum with the Free 6 GHz Playbook – click here

Cambium Networks Delivers Industry’s First 6 GHz Full Spectrum Solution Expanding Fixed Wireless Broadband with Gbps Subscriber Speeds to Cost Effectively Bridge the Digital Divide

Video: 6 GHz Fixed Wireless Deployment with System Integrator Rat River Technologies

Video: ePMP 4600 6 GHz Fixed Wireless Access Point

6 GHz fixed wireless & Wi-Fi 6E access blanket an outdoor area in São Paulo
“São Paulo is always at the forefront of technology. We embarked on this project to bring consumers this innovative experience in connectivity,” says Manuel Coelho, president of Associação Campo Belo Gastronomia.
Read the Press Release

Gigabit 6 GHz Fixed Wireless is a Reality
“We are on a mission to provide high-quality internet access everywhere we serve. This gives us another tool in the toolkit to do just that,” said Bill Baker, Founder and CEO of Nextlink Internet.
Read the Press Release

Learn how to file for a 6 GHz OET Experimental License with the FCC

Attend the 6 GHz ePMP Solutions webinar on January 24, 2023 at 10AM US Central time

Service providers discuss 6 GHz deployment plans and opportunities for Gbps services

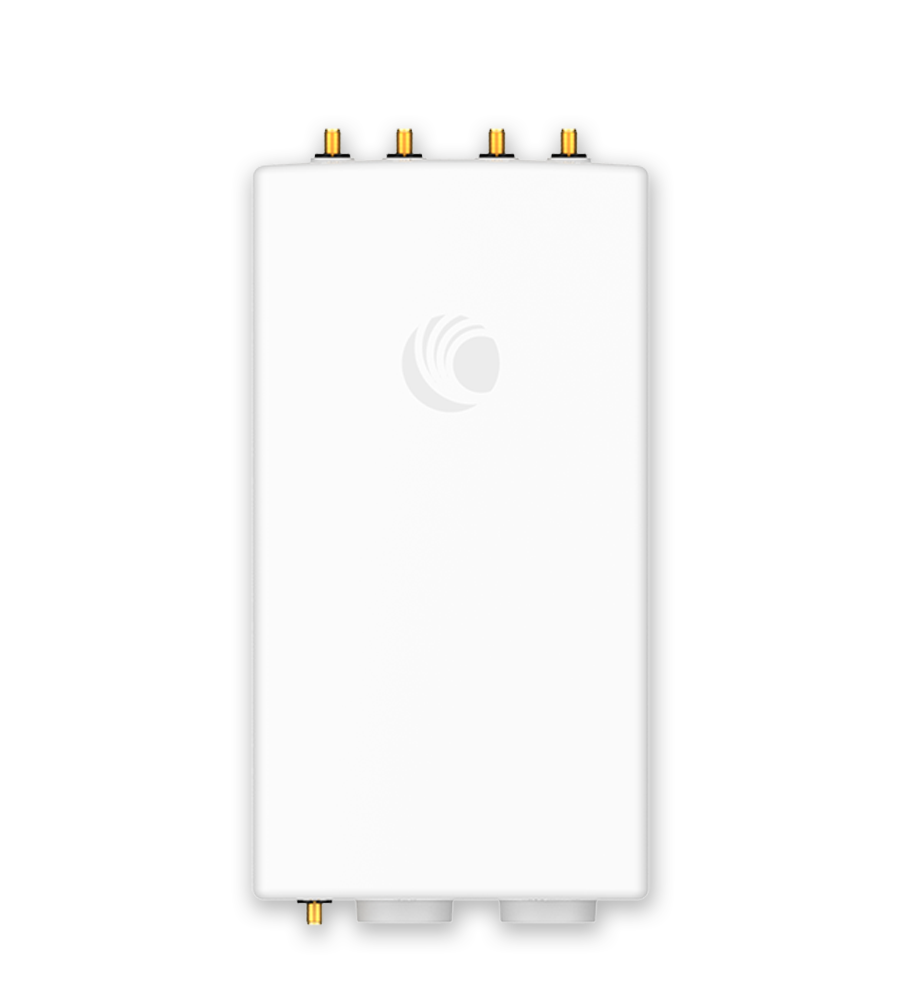

ePMP 4600 6 GHz Fixed Wireless Access Point

Specifications

Spectrum

Channel Spacing
Configurable on 5 MHz increments
Frequency Range
Wide Band Operation 5925–7125 MHz
Channel Width
20 | 40 | 80 | 160 MHz

Interface

MAC (Media Access Control) Layer
Cambium Proprietary
Proprietary Physical Layer
4x4 MU-MIMO/OFDMA based on 802.11ax underlying technology

Performance

ARQ
Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel
MCS 0 = -92 dBm to MCS 13 (4096 QAM-5/6) = -54 dBm (per chain
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel
MCS 0 = -89 dBm to MCS 13 (4096 QAM-5/6) = -50 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel
MCS 0 = -86 dBm to MCS 13 (4096 QAM-5/6) = -46 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @160 MHz Channel
MCS 0 = -83 dBm to MCS 13 (4096 QAM-5/6) = -43 dBm (per chain)
