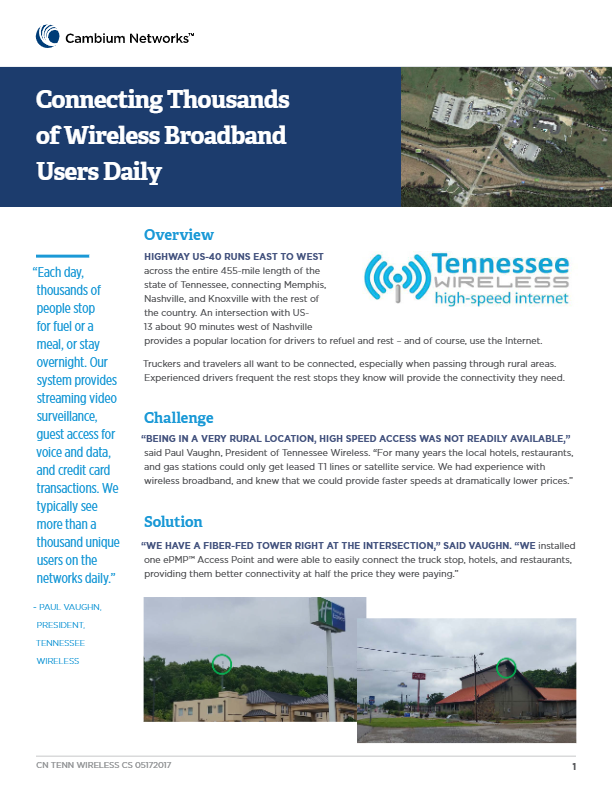

A service provider connects a highway intersection in a remote location and creates a popular rest stop with connected gas stations, hotels, and restaurants.
A service provider connects a highway intersection in a remote location and creates a popular rest stop with connected gas stations, hotels, and restaurants.
Cambium is happy to be at your service!
XR-320Dual radio wall mount AP with 4 port Gigabit Ethernet switch.
|
X2-120Value-driven dual radio 802.11ac AP.
|
XD2-230High performance 802.11ac Wave 2 APs with MU-MIMO technology.
|
XD2-240High performance 802.11ac Wave 2 APs with MU-MIMO technology.
|
XD4-130Extreme density, 4-radio 802.11ac Wave1/Wave2 APs with 100s of client support on a single unit.
|
XD4-240Extreme density, 4-radio 802.11ac Wave1/Wave2 APs with 100s of client support on a single unit.
|
XA4-240Plenum rated extreme density 4-radio 802.11ac Wave2 AP with external antennas.
|
|
|---|---|---|---|---|---|---|---|
| Wi-Fi Radios | 2 | 2 | 2 | 2 | 4 | 4 | 4 |
| BLE Radio | No | No | Yes | Yes | No | Yes | No |
| Total Radios | 2 | 2 | 3 | 3 | 4 | 5 | 4 |
| Wi-Fi Technology | 2×2 802.11ac Wave1 | 2×2 802.11ac Wave1 | 3×3 802.11ac Wave2 | 4×4 802.11ac Wave2 | 3×3 802.11ac Wave1 | 4×4 802.11ac Wave2 | 4×4 802.11ac Wave2 |
| Antennas | Internal | Internal | Internal | Internal | Internal | Internal | External |
| Software Defined Radios | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Controller | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated |
| Uplinks | 1–1GbE | 1–1GbE | 2-1GbE | 2-1GbE | 2-1GbE | 1-2.5GbE + 1-1GbE | 1-2.5GbE + 1-1GbE |
| Max Number of Clients | 512 | 512 | 480 | 480 | 780 | 780 | 960 |
| Total Wi-Fi Bandwidth | 1.2Gbps | 1.2Gbps | 3.9Gbps | 6.9Gbps | 5.2Gbps | 13.8Gbps | 13.8Gbps |
| Example Uses | Hotel/Dorms/ Offices | Hotel/Dorms/ Retail | Offices/Classrooms/Hospitals/ Retail |
Offices/Classrooms/Hospitals/ Retail |
Dense Offices/Classrooms/Conference rooms | Dense Offices/Classrooms/Conference rooms | Convention Centers/Airports/Train Stations |
XH2-120Ruggedized dual radio 802.11ac AP for harsh outdoor environments
|
XH2-240High performance Wi-Fi for harsh environments
|
Outdoor EnclosuresHatdened enclosure to convert indoor AP for outdoor use. |
|
|---|---|---|---|
| WiFi Radios | 2 | 2 | Up to 4 |
| BLE Radios | No | Yes | Varies |
| Total Radios | 2 | 3 | Up to 5 |
| WiFi Technology | 2×2 802.11ac Wave1 | 4×4:4, 802.11ac Wave 2 | 802.11ac Wave 1/Wave2 |
| Antennas | External | External | Internal |
| Software Defined Radios | Yes | Yes | Varies |
| Controller | Integrated | Integrated | Integrated |
| Uplinks | 1-2GbE | 1-2GbE | Up to 3.5GbE |
| Max Number of Clients | 512 | 512 | Up to 780 |
| Total Wi-Fi Bandwidth | 1.7Gbps | 6.9Gbps | Up to 13.8Gbps |
| Example Uses | General outdoors/Stadiums/Arenas | General outdoors/Freezers/Arenas | General outdoors/Stadiums/Arenas |
