High-density architecture reduces equipment required while leveraging automation to deliver SLA. XV3-8 Wi-Fi 6 indoor enterprise wireless AP includes seamless roaming, fast roaming, automatic RF optimization, and interference avoidance to automatically optimize performance to specific local needs. This Software-Defined 8×8 Multi-Radio AP is equipped with dedicated scanning radio and BLE, WPA3 secure public access, application control, and 802.3bz Ethernet optimized for high-density deployments.
Designed for High Density and Edge Services
The XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4×4 plus one 2.4 GHz 4×4, or the two 5 GHz radios can be combined into a single 5 GHz 8×8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.
Optimized Wi-Fi for All Client Devices
For networks dominated by legacy 802.11ac client devices, the dual 5 GHz 4×4 mode will double network capacity to maintain high-bitrate services as density increases. As the devices migrate to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR can be quickly converted into full 8×8 operating mode via a simple configuration change. No firmware change is required to support this mode.
Cloud and On-Premises Management
XV3-8 operates with either the Cambium XMS cloud management or cnMaestroTM cloud and on-premises. Choose the cloud management system that best fits your business and use the latest technology from Cambium Networks.
Highest Wi-Fi 6 Performance
Tolly Report: Cambium Wi-Fi 6 Solutions Provide Highest Performance Among Major Brands

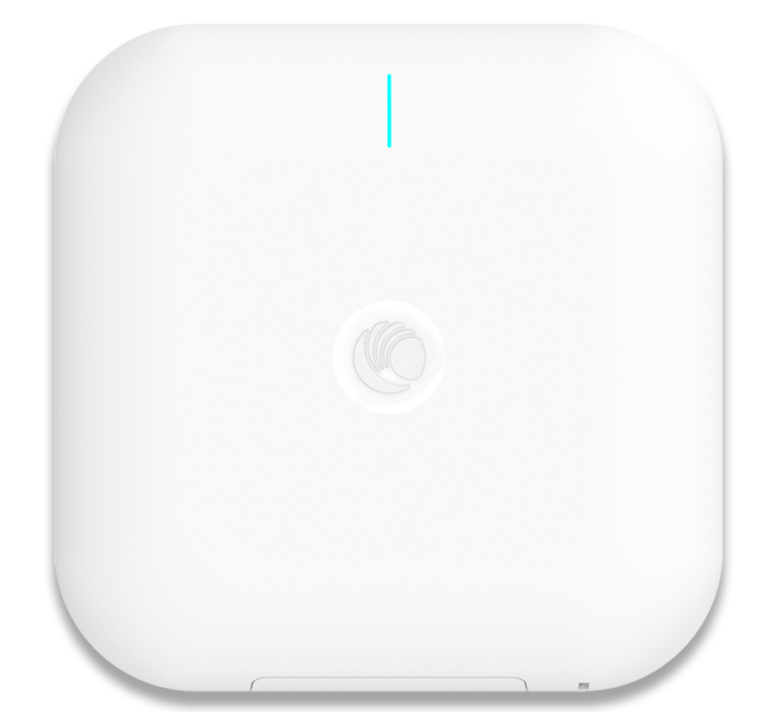

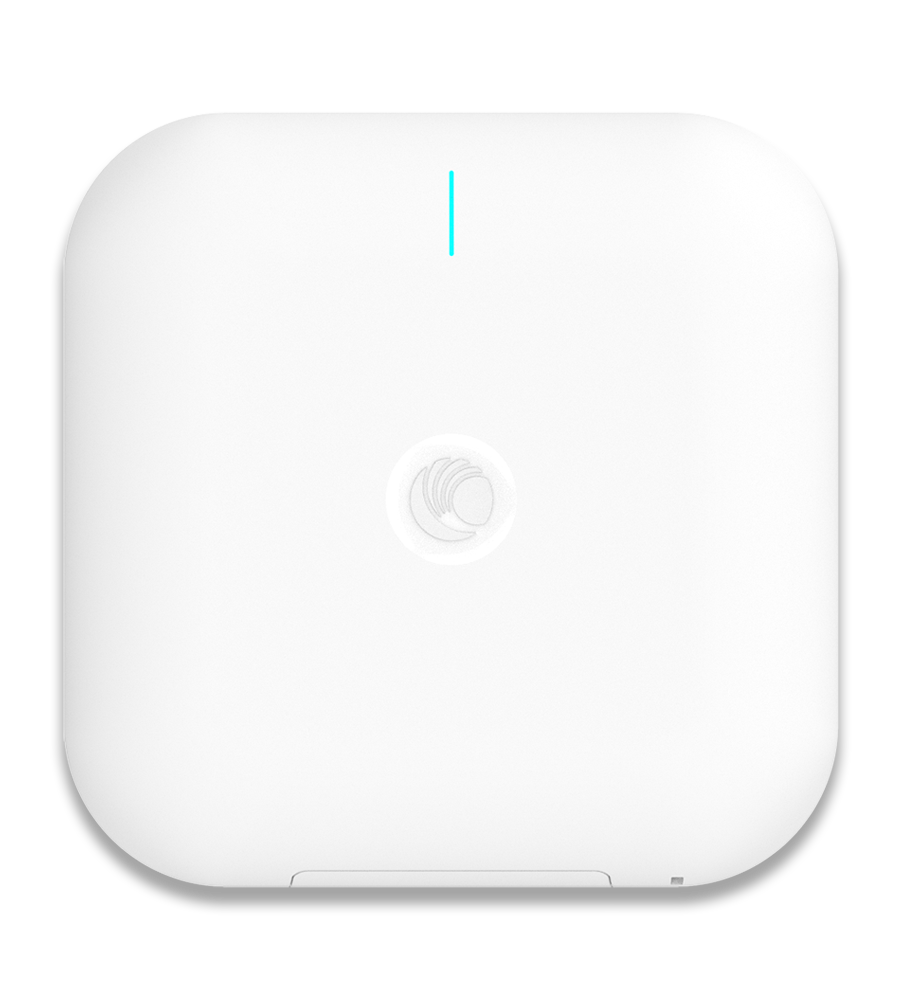

XV3-8 Wi-Fi 6 Indoor Enterprise Wireless Access Point
Specifications
Radios
5 GHz radio (802.11a/n/ac Wave 2/ax), 8x8 (or configure as 2 x 5 GHz 4x4)<br>2.4 GHz (802.11b/g/n/ax), 4x4 Dual-band scan radio, 1x1 BLE 4.1
Wi-Fi
802.11a/b/g/n/ac Wave 2/ax
SSID Security
WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open
Antenna
5 dBi (2.4 GHz) 6.7 dBi (5 GHz), Omni dual - band sensor antenna, 5 dBi (2.4 GHz) / 6.3 dBi (5 GHz) BLE antenna, 5 dBi
WLAN
1,024 clients, 16 SSIDs WPA3, WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
Authentication Encryption
802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS
QoS
WMM, 802.11e
VLAN
802.11q
