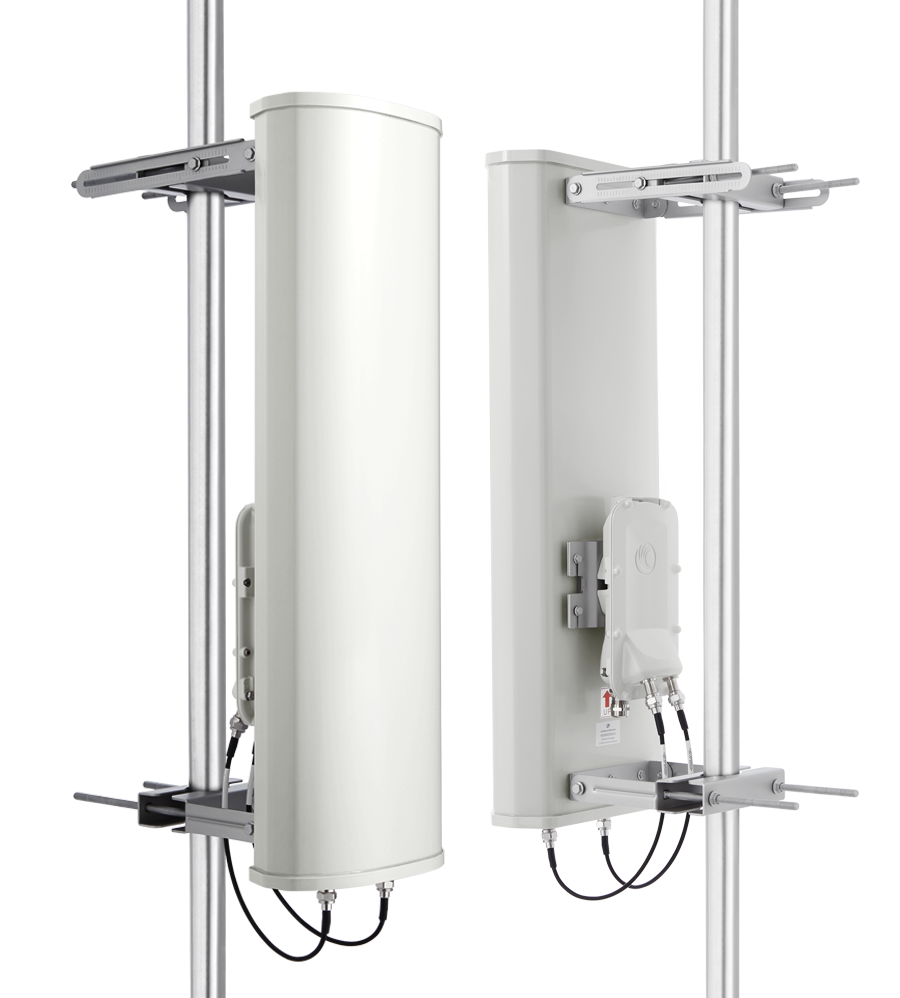

900 MHz Sector Antenna

Specifications

ELECTRICAL DATA

Frequency
900-930 MHz
Gain
13 dBi
VSWR
<1.7:1
Polarization
Dual slant, ±45°
Horizontal Beamwidth
65°
Vertical Beamwidth
23°
Max Input Power
100W

MECHANICAL DATA

Connector
2*N Female
Connector Position
Bottom
Dimensions
880*288*132mm
Length / Width / Height
34.6*11.3*5.2in
Weight
8.5kg/18.7lb

900 MHz Sector Antenna

Documentation

No Brochures currently available.
