PMP 450i 900 MHz allows for deep frequency propagation that suits the needs of rural broadband deployments, SCADA and sensor data backhaul, and even video surveillance applications.
For product documentation, log in to Cambium Support.

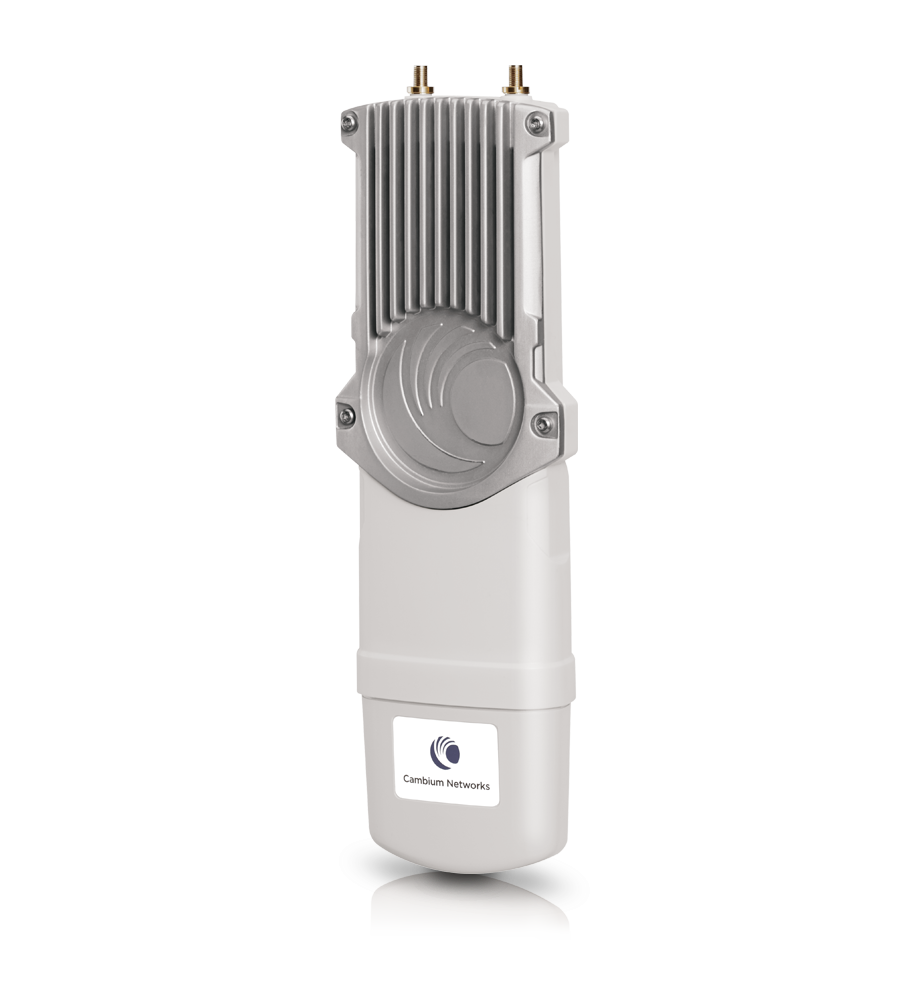

900 MHz PMP 450i Connectorized Fixed Wireless Subscriber Module
Specifications
SPECTRUM
Channel Spacing
g Configurable on 0.5 MHz increments
Frequency Range
902 - 928 MHz
Channel Width
5 MHz, 7 MHz, 10 MHz, 15 MHz or 20 MHz
INTERFACE
Physical Layer
2x2 MIMO OFDM
Ethernet Interfaced
100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant (SM is 10/100BaseT only)
Protocols Used
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
PERFORMANCE
Subscribers Per Sector
238
Maximum Deployment Range
Up to 120 miles (190 km)
GPS Synchronization
n Yes, via Autosync (CMM4 or UGPS)
SECURITY
Encryption
56-bit DES, FIPS-197 128-bit AES
PHYSICAL
Environmental
AP: IP 66, 67 SM: IP55
Weight
Access Point: 1.8 kg (4 lbs.) Subscriber Module: 0.45 kg (1 lb.)
Dimensions (h x w x d)
Access Point: 26 x 13.4 x 6.4 cm (10.3” x 5.3” x 3.3”) Subscriber Module: 30 x 9 x 5 cm (11” x 3.5” x 2”)
