Cambium Networks industry-leading 450 platform with options for 3 GHz Subscriber Modules (SMs). The 450 platform is the most scalable industrial-grade wireless broadband solution available.
For product documentation, log in to Cambium Support.

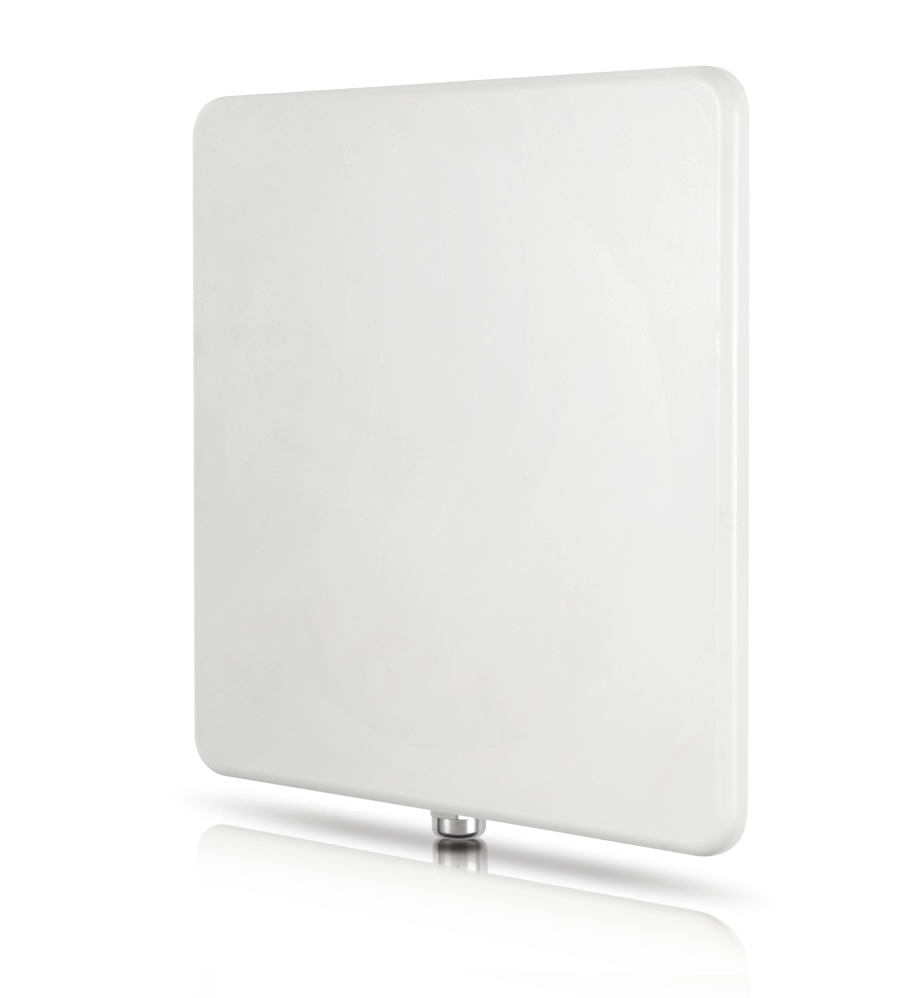

3 GHz PMP 450 Flat Panel Subscriber Module
Specifications
SPECTRUM
Channel Spacing
Configurable to 50 KHz
Frequency Range
3300 - 3600 MHz
3550 – 3800 MHz
3550 – 3800 MHz
Channel Width
5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
INTERFACE
MAC (Media Access Control) Layer
Cambium Networks proprietary
Physical Layer
2x2 MIMO OFDM
Ethernet Interface
10/100BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols Used
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
LINK BUDGET
Antenna Beam Width
10° azimuth for 19 dBi integrated antenna
Antenna Gain
+19 dBi H+V, integrated
Transmit Power Range
40 dB dynamic range (to EIRP limit by region) (1 dB step)
Maximum Transmit Power
+25 dBm combined output
