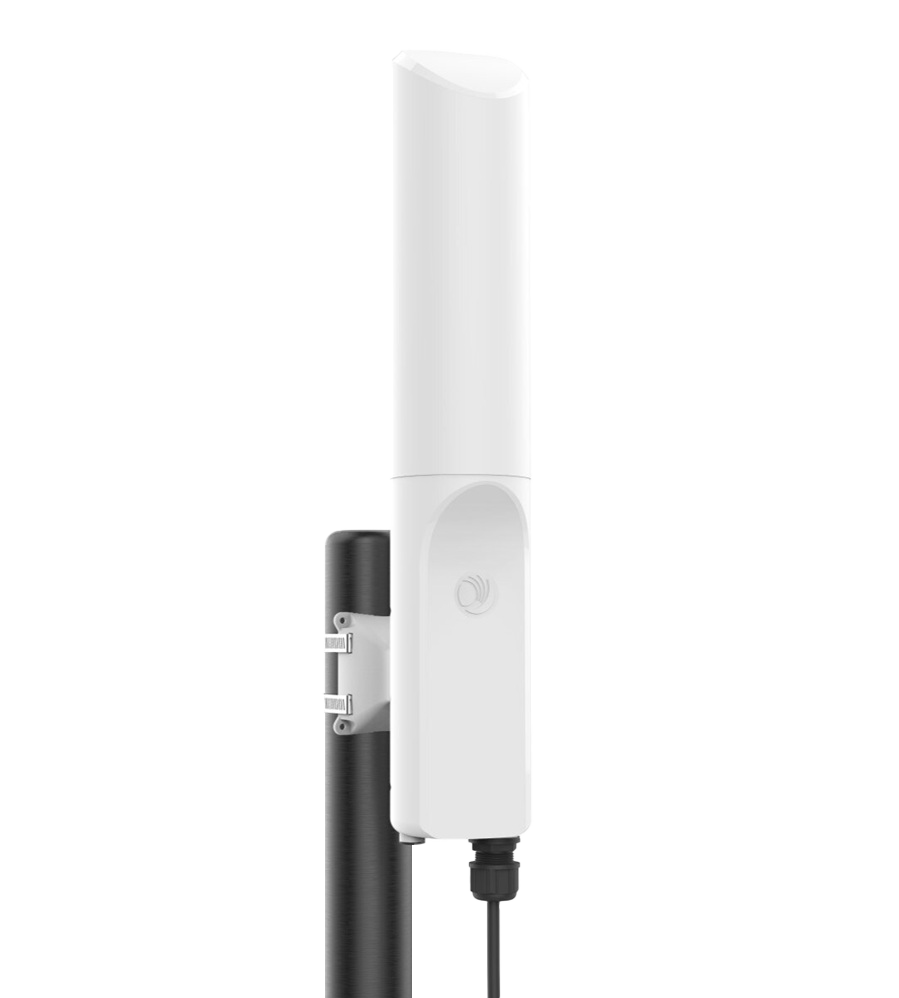

PMP 450b Omnidirectional Fixed Wireless Subscriber Module

Up to 300 Mbps aggregate in a 40 MHz channel. Frequency range is 4.9 – 5.925 GHz.

Key Features

Software-defined, purpose-built technology.
Gigabit Ethernet interface provides the maximum transfer rates to the device.
New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the original 450 hardware.
Integrates seamlessly and affordably with existing 450 platform devices to extend coverage to obstructed or hard-to-reach areas.
Centralized cloud management using cnMaestro™.
Features fully scheduled deterministic TDD, with low and consistent latency to perform under load.
Available with omnidirectional antenna.

Channel Spacing

Configurable on 2.5 MHz increments

Frequency Range

4900 - 5925 MHz

Channel Width

5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz

MAC (Media Access Control) Layer

Cambium Networks proprietary

Physical Layer

2x2 MIMO OFDM

Ethernet Interface

100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant

Protocols Used

IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Network Management

IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro

MTU

1700 bytes

VLAN

802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Encryption

FIPS-197 128-bit AES, 256-bit AES (optional)
