What is Bridge-in-a-Box 5 GHz ePMP™ Force 4518 Subscriber Module?

Each Bridge-in-a-Box comes with two wireless radio modules and related accessories that can be used to easily connect point A to point B at Gigabit speed.

For those places you couldn’t connect before, Bridge-in-a-Box will get you there today.

How are people using Bridge-in-a-Box?

  • Extending internet connectivity
  • Connecting remote Wi-Fi hotspots
  • Remote camera or CCTV video feeds

What are people connecting with Bridge-in-a-Box?

  • Machine shops / garages / storage sheds / docks / boat ramps
  • Any remote or outlying buildings
  • Remote parking lots
  • Campus buildings
  • Cabins and lodges
  • Construction sites
  • Concerts, farmers markets, festivals
  • Athletic fields and events

Bridge-in-a-Box 5 GHz Specifications Overview

  • Uses the 5 GHz frequency band
  • Up to 1 Gbps total throughput
  • Range up to 50 kilometers (3 miles)
  • Supports NLOS
  • 3-year warranty

Have questions, need install advice or would like to help?

Visit the Cambium Community!

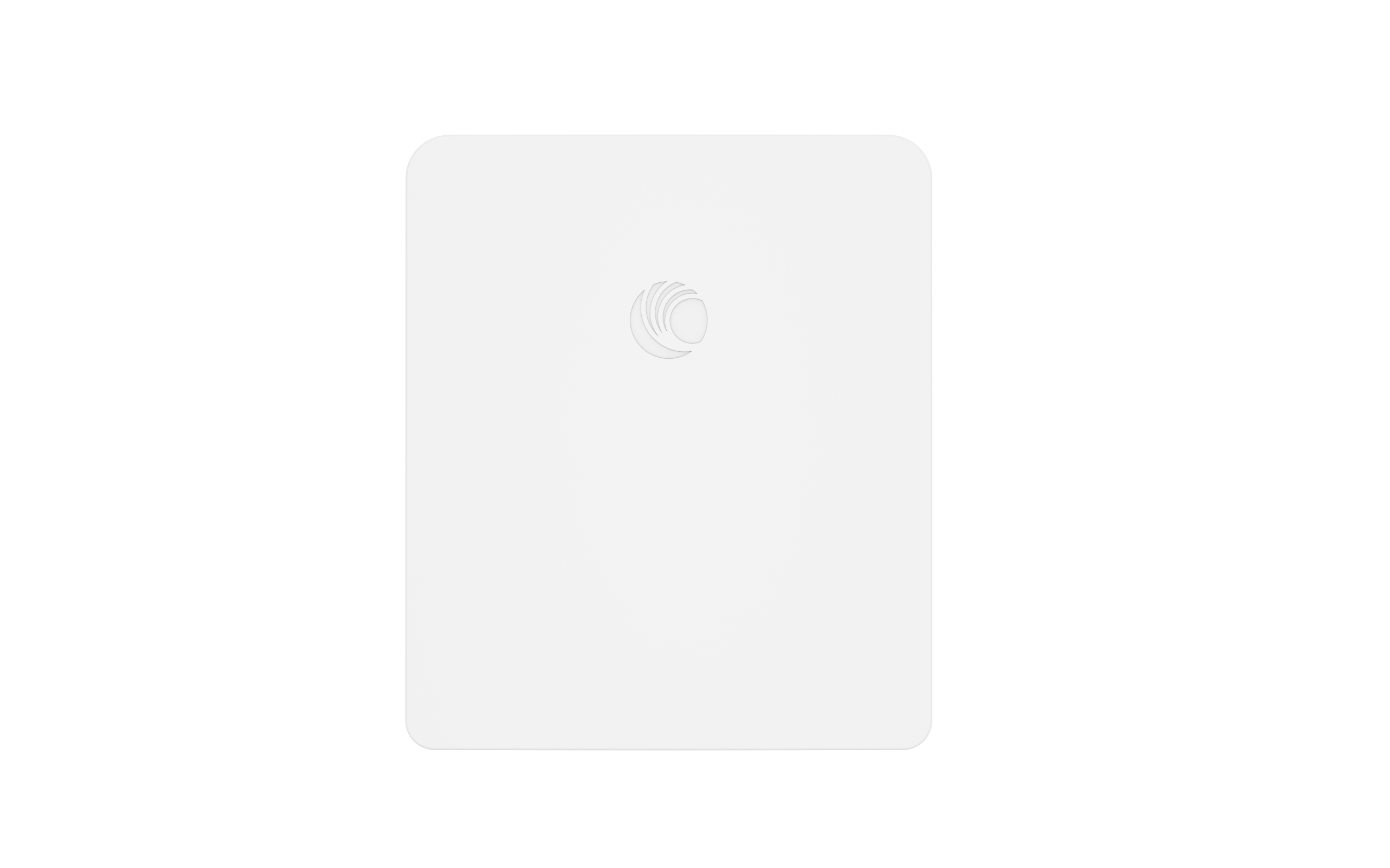

Bridge-in-a-Box 5 GHz ePMP Force 4518 Subscriber Module

Specifications

Features

Wireless Standard
ePTP proprietary protocol supporting lower latencies, longer ranges, and higher reliability

Spectrum

Frequency Range
5450–5920 MHz (exact frequencies as allowed by local regulations)
Channel Bandwidth
20 | 40 | 80 MHz

Performance

Ethernet Interface
10/100/1000 Base T, compatible with Cambium PoE & standard PoE pinouts
Modulation Levels
MCS-0 (BPSK) to MCS-11 (1024 QAM-5/6)

Physical

Weight
2.76 kg (6.1 lb) with mounting bracket
Dimensions (h x w x d)
180 mm x 210 mm x 39 mm (7 in x 8.2 in x 1.5 in) without mounting bracket
Wind Survival
180 km/h (112 mi/h)
