PTP 650

Specifications

RADIO TECHNOLOGY

RF BANDS1
Wide-band operation 4.9 to 6.05 GHz (Allowable frequencies and bands are dictated by individual country regulations. The most common bands are listed here.) 4.940 – 4.990 GHZ (Public Safety) 5.15 – 5.25 GHZ 5.25 – 5.35 GHZ 5.470 – 5.725 GHZ 5.725 – 5.850 GHZ 5.825 – 6.050 GHZ
CHANNEL SIZES
5, 10, 15, 20, 30, 40, and 45 MHz channels Channel sizes depend on individual country regulations
SPECTRAL EFFICIENCY
10 bps/Hz maximum
CHANNEL SELECTION
By Dynamic Spectrum Optimization or manual intervention; automatic selection on start-up and continual self-optimization to avoid interference
MAXIMUM TRANSMIT POWER
Up to 27 dBm at BPSK; up to 23 dBm at 256 QAM
RANGE
Up to 124 miles (200 km)
SECURITY
FIPS-197 compliant 128/256-bit AES Encryption (optional) HTTPS and SNMPv33 Identity-based user accounts Configurable password rules User authentication and RADIUS support Event logging and management; optional logging via syslog Disaster recovery and vulnerability management

ETHERNET BRIDGING

PROTOCOL
IEEE 802.3
USER DATA THROUGHPUT
Dynamically variable up to 450 Mbps Maximum conditions – 2x2, 45 MHz channel1 , 256 QAM Flexible spectral efficiency / capacity licensing model: Lite Capacity: Up to 125 Mbps Mid Capacity: Up to 250 Mbps Full Capacity: Up to 450 Mbps Also available with licenses limiting maximum channel bandwidth
LATENCY
1 – 3 ms one-direction latency
QoS
8 Queues

MANAGEMENT & INSTALLATION

NETWORK MANAGEMENT
In-band and out-of-band management (OOBM)
SYSTEM MANAGEMENT
IIPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS3 SNMP v1, v2c and v3, MIB-II and proprietary PTP MIB Cambium Wireless Manager, WM 4.0/SP4 or higher Online spectrum analyzer (no impact on payload traffic or network operation)

PHYSICAL

DIMENSIONS

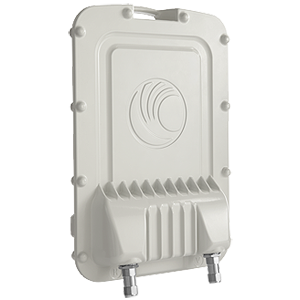

Integrated Outdoor Unit (ODU): Width 371mm (14.6”), Height 371mm (14.6”), Depth 81mm (3.2”) Connectorized ODU: Width 204mm (8.0”), Height 318mm (12.5”), Depth 90mm (3.5”)
WEIGHT
Integrated ODU: 4.1 kg (8.95 lbs) including bracket Connectorized ODU: 3.1 kg (6.8 lbs) including bracket
OPERATING TEMPERATURE
-40° to +140° F (-40° to +60° C), including solar radiation
DUST-WATER INTRUSION PROTECTION
IP66 and IP67
