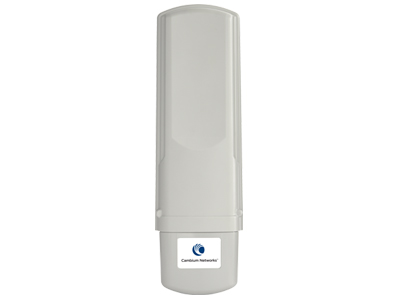

PTP 230

For small to medium organizations that want an affordable, medium-throughput solution for paths with minimal interference and minor obstructions, the PTP 230 is a perfect Point-to-Point solution. Features: GPS Synchronization | Based on popular PMP 430 platform | Fast installation and ROI Up to 80 miles (129 km) with a reflector | Up to 18 miles (29 km) with a LENS | Up to 4.5 miles (7 km) with integrated antenna

For product documentation, log in to Cambium Support.

PTP 230

Specifications

SPECTRUM

CHANNEL SPACING
Configurable on 5 MHz increments
FREQUENCY RANGE
5.4 GHz: 5.470 GHz – 5.725 GHz 5.8 GHz: 5.725 GHz – 5.875 GHz
CHANNEL WIDTH
Configurable to 10 or 20 MHz

INTERFACE

PHYSICAL LAYER
OFDM 256FFT
MAC (MEDIA ACCESS CONTROL) LAYER
Cambium Proprietary
ETHERNET INTERFACE
10/100 Base T (RJ-45)
PROTOCOLS USED
Proprietary OFDM
NETWORK MANAGEMENT
HTTP, Telnet, FTP, SNMPv2c; Wireless Manager, version 3.0 or higher
VLAN
802.1ad (DVLAN Q-in-Q), 802.1Q with 802.1p priority, dynamic port VID

PERFORMANCE

ARQ
Yes
CYCLIC PREFIX
1/4, 1/8, or 1/16 fixed
MAXIMUM DEPLOYMENT RANGE
Base unit: 5 km (3.1 mi.) with LENS: 19 km (12 mi.) with Reflector dish: 50 km (31 mi.)
MAXIMUM AGGREGATE THROUGHPUT
50 Mbps
MODULATION LEVELS (ADAPTIVE)
1X=QPSK, 2X=16-QAM, 3X=64-QAM
LATENCY
5 to 7 ms round trip
FORWARD ERROR CORRECTION
3/4 Reed-Solomon block coding
GPS SYNCHRONIZATION
Yes, via CMM3, CMM4 or UGPS (The PTP230 can also provide the UGPS with power)
QUALITY OF SERVICE
DiffServ QoS
ACCESS METHOD
Time Division Duplexing(TDD)

LINK BUDGET

ANTENNA BEAM WIDTH
55° azimuth, and 55° elevation (can be narrowed using lens or reflector dish)
TRANSMIT POWER
-30 to +19 dBm to EIRP limit by region (1 dBm interval)
ANTENNA GAIN
Integrated - 10 dBi
MAXIMUM TRANSMIT POWER
19 dBm
EIRP
Up to 44 dBm (with reflector dishes), subject to regulatory limits
SENSITIVITY (dBm typical)
Up to -86 dBm (with FEC)
REFLECTOR GAIN
+15 dBi
LENS GAIN
+6 dBi

PHYSICAL

WIND LOADING
90 lbs
MEAN TIME BETWEEN FAILURE
>90 Years
ENVIRONMENTAL
IP55
TEMPERATURE
-40° to +131° F (-40° to +55° C)
WEIGHT
0.45 kg (1 lb.)
WIND SURVIVAL
118 mph (190 kph)
DIMENSIONS (HxWxD)
30 x 9 x 9 cm (11.75" x 3.4" x 3.4")
MAXIMUM POWER CONSUMPTION
10W
INPUT VOLTAGE
24 to 30V

SECURITY

ENCRYPTION
56-bit DES, 128-bit AES Optional

CERTIFICATIONS

INDUSTRY CANADA CERT
5.4 GHz: 109W-5490G 5.8 GHz: 109W-5790
FCC ID
5.4 GHz: Z8H89FT7638 5.8 GHz: Z8H89FT7634
CE
5.4 GHz: EN301 893 v1.6.1 5.8 GHz: EN302 502 v1.2.1
