XA4-240 Access Point provides measurable benefits

Lower Costs

Just one high density Wave 2 AP replaces up to four standard units. Less hardware, cabling, and power consumption saves money and fewer devices to manage lightens the load on IT staff.

Connected Experience

The XA4 AP delivers robust connectivity even in challenging locations by using external antennas to direct radio frequency (RF) signals. Support constantly changing environments and always-on connectivity for any kind of Wi-Fi device.

Valuable Insight

Intelligent user analytics including location data allow venue operators to engage more meaningfully and offer value-added services such as wayfinding. Deliver differentiated services with rich brand experiences and targeted interaction.

Superior Wi-Fi for challenging indoor environment

With 802.11ac Wave 2 becoming the Wi-Fi operational standard, large venues can now take advantage of the improved performance multi-user MIMO (MU-MIMO) technology brings to high-density environments.

Xirrus XA4 Wave 2 high-density access points (APs) provide high Wi-Fi capacity in locations like convention centers, airports, train stations, and arenas. The plenum-rated XA4 AP features external antennas for custom coverage in structures with high ceilings, long hallways, or wide-open spaces.

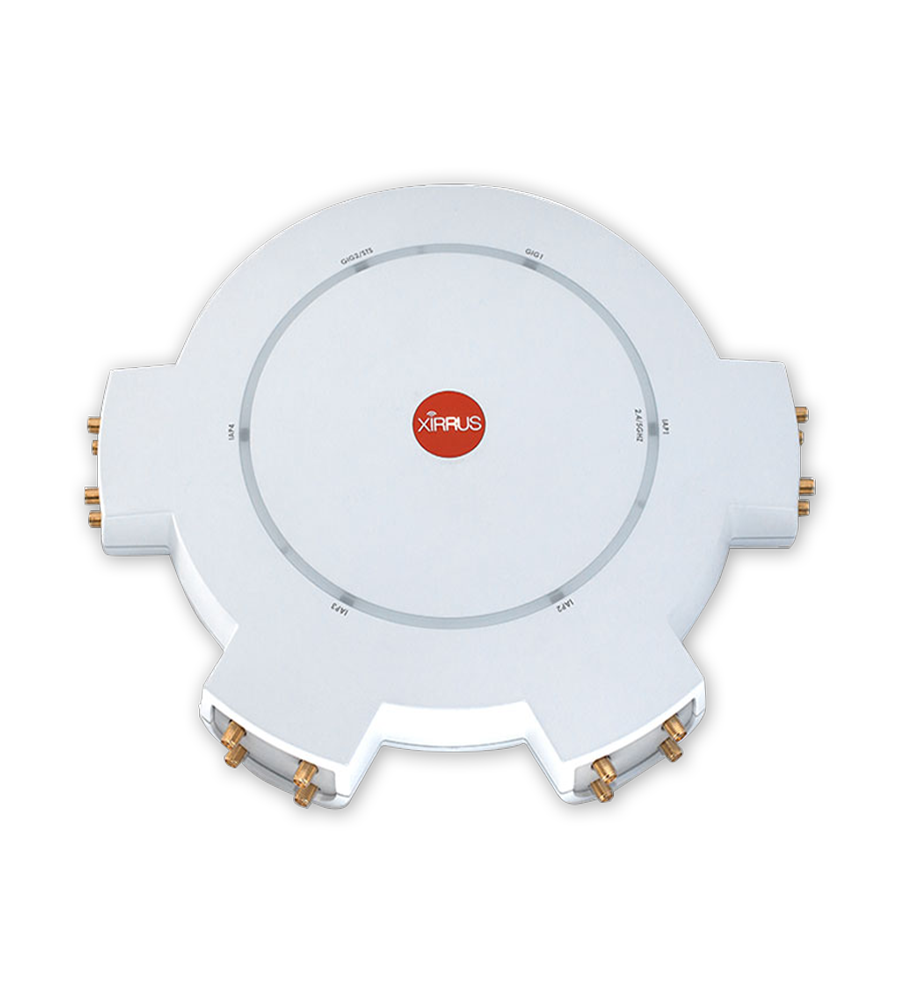

Xirrus XA4-240 Wi-Fi Access Point


Technical Specs

Supported Standards
802.11a/b/g/n/ac (Wave 2)
Radio Technology
4x4 MU-MIMO, 11ac, 3.47Gbps, 3 - 5GHz radios, 1 -Software Defined Radio
Max Wi-Fi Bandwidth
Max Associated Devices
Max Power Consumption
4x4 MU-MIMO - 46W

Configuration Specs

Chassis Dimensions
Supported Standards
802.11 a/b/g/n/ac (Wave 2)
Total Number of Radios
4 total: 3 - 5GHz , 1 - 2.4GHz / 5GHz software programmable
Radio Type
4x4 11ac 3.47Gbps
MIMO Technology
MU-MIMO: 16 streams
Channel Bonding
up to 160MHz
Maximum Wi-Fi Bandwidth
