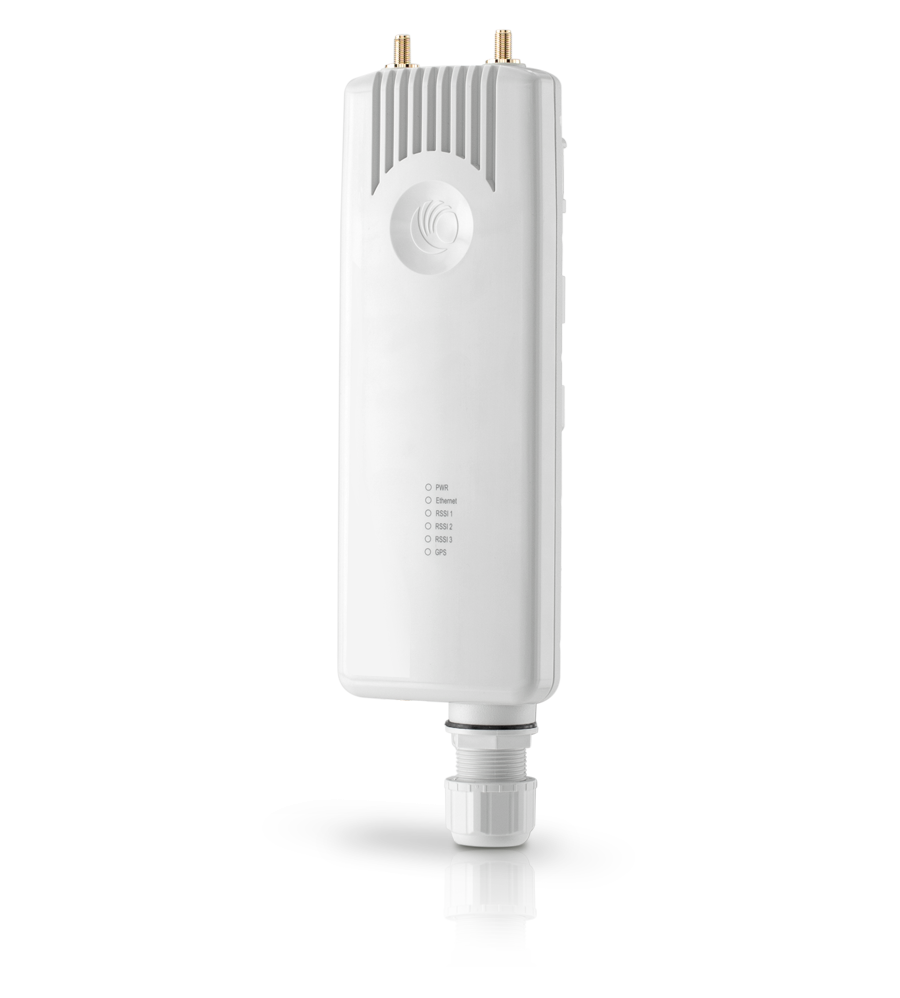

ePMP Force 300 CSM Connectorized Subscriber Module

Specifications

INTERFACE

MAC (Media Access Control) Layer
Cambium Proprietary
Physical Layer
2x2 MIMO/OFDM
Ethernet Interfaced
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™
VLAN
802.1Q with 802.1p priority

PERFORMANCE

ARQ
Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel
MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel
MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel
MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Modulation Levels (Adaptive)
MCS0(BPSK)to MCS9 (256QAM5/6)
Transmit Power Range
0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)

PHYSICAL

Surge Suppression
1 Joule Integrated; Optional 30V Surge Suppressor (C000000L065A)
Environmental
IP67
Temperature
-22°F to +140°F (-30°C to +60°C)
Weight
0.46 kg (1.0 lbs.)
Wind Survival
180 km/hour (112 mi/hour)
