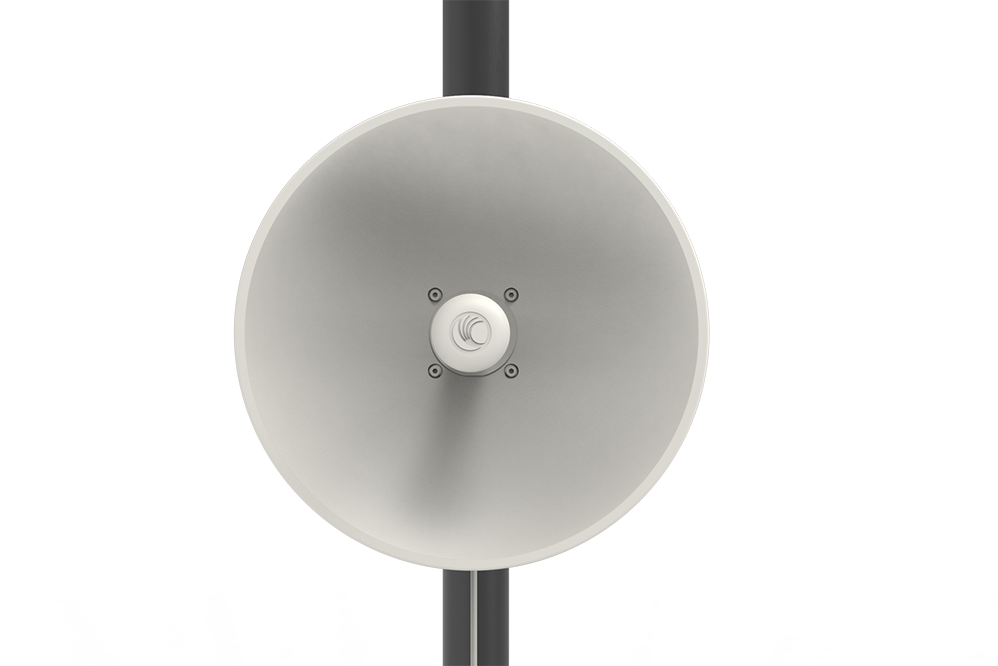

ePMP Force 200L

Specifications

SPECTRUM

Channel Spacing
Configurable on 5 MHz increments
Frequency Range
Wide Band Operation 4910–5970 MHz
Channel Width MHz
5 | 10 | 20 | 40

PERFORMANCE

ARQ
Yes
Nominal Receive Sensitivity (w/FEC) @200MHz Channel
MCS0 -88 dBm; MCS7 = -70 dBm
Nominal Receive Sensitivity (w/FEC) @40MHz Channel
MCS0 = -86 dBm; MCS7 = -68 dBm
Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS7 (64QAM 5/6)
Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range
+3 to 28 dBm (combined, to regional EIRP limit) (1 dB interval)

PHYSICAL

Surge Suppression
1 Joule Integrated
Environmental
IP55
Temperature
-30°C to 55°C (-22°F to 122°F)
Weight
1.6 kg (3.5 lbs)
Wind Survival
200 km/h (124 mph)
Pole Diameter Range
2.5 - 7.5 cm (1.0 to 3.0 in)
Power Consumption
8 W Maximum, 5 W Typical
Input Voltage
30 V Passive PoE (14-30 V DC input)

SECURITY

Encryption
128-bit AES (CCMP mode)

CERTIFICATIONS

FCC
Not Available in North America
Industry Canada
Not Available in North America
CE
DoC available on cambiumnetworks.com
