Now with the Dual-Horn MU-MIMO sector, operators can combine the interference mitigation advantages of a horn antenna pattern with the high data rates and performance of 4×4 MU-MIMO.
MU-MIMO Performance in a Horn antenna pattern
Optimized for use with the 4x4 MU-MIMO ePMP 3000 Access Point with a high gain and small side lobes
Channel Flexibility
Consistent gain from 5.1 to 6.1 GHz allows the operator to
select a channel anywhere in band to achieve the expected performance
Predictable Performance
Integrated into Cambium Networks LINKPlanner with
a precise 3D model showing gain across all elevations and across the azimuth.
Designed for the Installer
Small Form-Factor and Convenient mounting for ease
of deployment in tower as well as small-cell applications

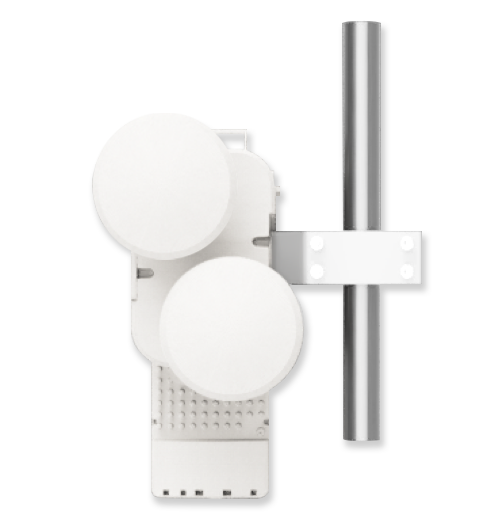

ePMP™ 3000 Dual Horn MU-MIMO Antenna
Specifications
What’s Included
Dual Horn MU-MIMO Antenna assembly<br>Pole-mount bracket<br>Four Cables for connecting antenna to the ePMP 3000 AP (RP-SMA to RP-SMA)
Frequency Range
5.1 GHz to 6.1 GHz
Gain
12 dBi
6 dB Beamwidth - Azimuth
60 degrees
Polarization
2X Horizontal, 2X Vertical
