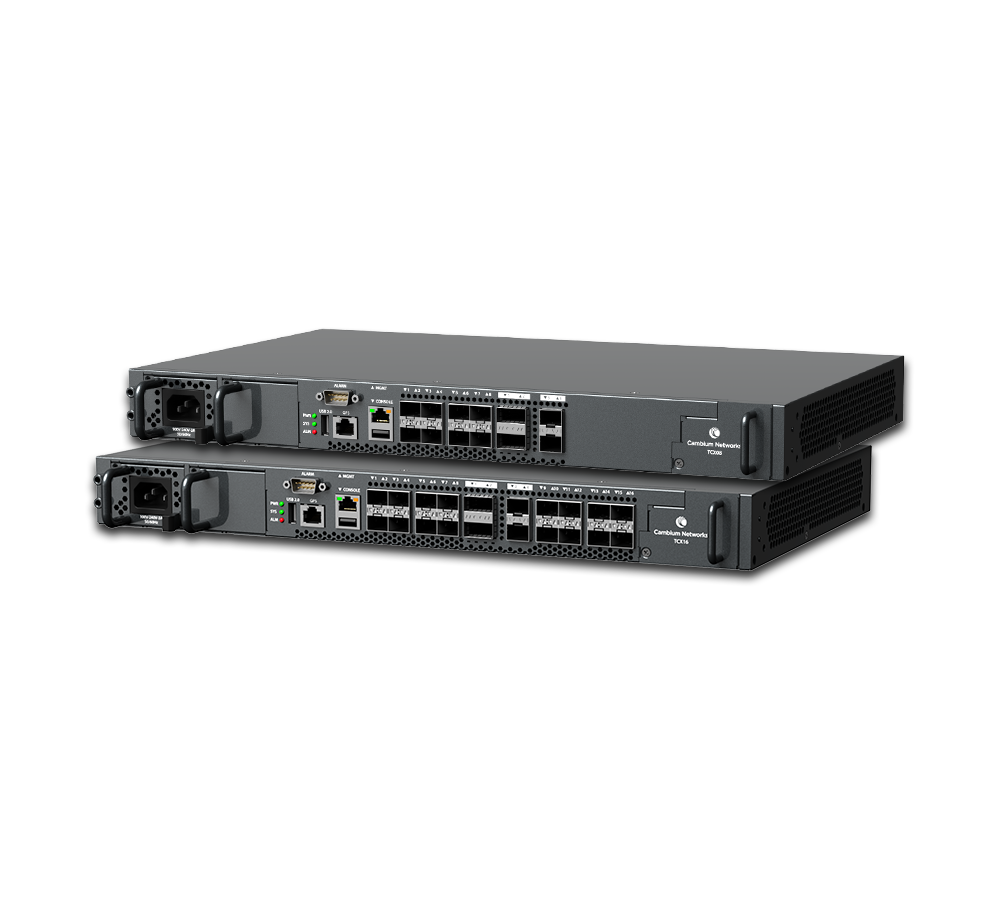

Featuring a compact design, 8- or 16-port Combo PON with GPON, XGS-PON, and Combo G/XGS-PON support, as well as dual 100G/40G QSFP28 and 2x SFP28 / SFP+ uplink ports, the Combo PON OLT simplifies fiber deployment.

With support for multiple subscribers, the 1RU PON OLT enables service providers to meet rapid growth in demand.

FEATURES AND BENEFITS

  • Zero-touch installations with Cloud and on-premise pre-configuration
  • Multi-gigabit symmetric customer speeds for fast and reliable connections
  • Dual AC/DC power supplies for added reliability and minimal downtime.

Add Future-Proof Fiber to Your Network

Leverage the optimal combination of fixed wireless and fiber to best fit your business. Deliver multi-gigabit symmetrical services in a Combo (GPON/XGS-PON) OLT managed with a single pane of glass.

Video: Unboxing the Fiber Combo PON OLT

See what Mike Dano of Light Reading says about Cambium Fiber Combo PON

Simplify the ordering, deployment, & management, of carrier-grade FTTx technology.

8- or 16-Port Combo PON OLT

Specifications

Interfaces

Uplink
2x QSFP28 (supporting 100GE or 40GE or 4x25GE) and 2x SFP28/SFP+ (supporting 25GbE or 10GbE)
PON
8- or 16-port PON supporting PON: GPON, XGS-PON, or Combo PON maximum split ratios: XGS-PON 1:256, GPON 1:128 (ITU-T G.9807.1, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4)
Management
Console ports: USB 2.0, D-SUB 9-pin, 1x RJ-45 out-of-band management (100/1000-BaseT) in-band and out-of-band IPv4 & IPv6 management

Features

Networking
DHCP relay, option 82 support IGMP V2/V3 multicast support VLAN tagging, support IEEE 802.1Q, SVLAN, CVLAN, Q-in-Q IEEE 802.1p QoS service prioritization support
Single Management Interface
8- or 16-port PON downlink interfaces and 4 uplink interfaces
Dimensions
4.15 x 4.15 x 1.3 in (105 x 105 x 33mm)
Management
cnMaestro management with support for Netconf/Yang SNMP v2c & v3, Syslog, CLI, API, and cnMaestro RSTP rogue ONT detection, AES encryption, FEC dynamic bandwidth allocation (DBA): NSR status reporting (SR), traffic monitoring (TM) DBA

Hardware

Performance
Non-blocking switching capacity: 300Gb/s; jumbo frames: 9K; MAC address: 16K; VLAN number: 4K
Environmental
4+1 left-to-right airflow fan modules (SDA FAN) operating temperature: -40°F to 149°F (-40°C to +65°C) relative humidity: 5% to 95%
Power
Hot swappable redundant power modules (AC is a priority when AC and DC are present) SDA AC: Universal 250W AC (100~240VAC, 50Hz to 60Hz) SDA DC: -48VDC 250W (-72~-38.4VDC)

Regulatory

Certifications
FCC, ICES, EN, IEC, CAN/CSA, ETSI, ANSI/UL, AS/NZS (details in product documentation)
