Cambium Networks has expanded its enterprise Wi-Fi 7 portfolio with the X7-56X, a directional-coverage, tri-band access point designed for high-capacity use cases in dense client areas and difficult RF environments. With tri-band Wi-Fi 7 performance, an integrated high-gain directional antenna, flexible mounting, and cnMaestro cloud management, the X7-56X helps enterprises and MSPs deliver capacity where standard omni-directional APs are not the right fit.
Wi-Fi 7 has already reset expectations for enterprise wireless: higher throughput, higher density, lower latency, and more predictable performance for the cloud apps, video, and IoT traffic modern networks carry. Cambium’s X7 series delivers on those expectations with the X7-35X for mainstream deployments, and the X7-53X and X7-55X for mid-market enterprises and MSPs that need Wi-Fi 7 without compromise.

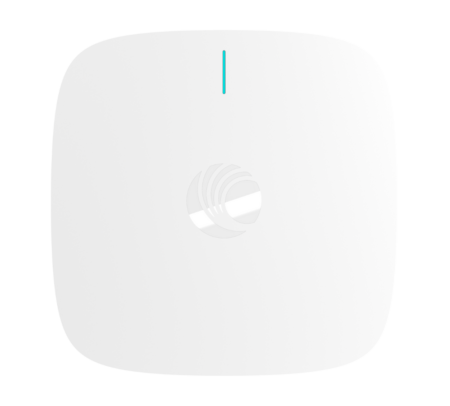

Now meet the fourth member of the Wi-Fi 7 lineup: the X7-56X. It shares the same tri-band, 4×4 performance and software-definable radio architecture as the X7-55X but is built to uniquely address requirements when precision RF control is required. For enterprise IT teams and MSPs, the X7-56X provides a simpler way to deliver targeted Wi-Fi 7 capacity in areas where traditional ceiling-mounted omni-directional APs are difficult to deploy or difficult to optimize.
The High-Density Challenge
Auditoriums, convention halls, sports arenas, transportation hubs, and similar high-density scenarios do not behave like a typical office environment. These spaces are commonly defined by hundreds or thousands of devices packed into an area, RF noise bouncing off hard surfaces, and ceilings that are either too high or physically unable to accommodate standard access points. Standard omni-directional coverage APs, even good ones, start to run out of answers in these environments.
While the X7-55X delivers strong high-density performance for typical enterprise spaces, the X7-56X is purpose-built for environments where density is so extreme, or the RF path so difficult, that Wi-Fi coverage needs to be precisely directed, not just broadcast in all directions.
A few questions worth asking if this sounds familiar:
- Are your high-density Wi-Fi spaces actually performing at an acceptable level, or are you seeing excessive AP coverage overlap and high RF noise?
- Are your 6 GHz radios sitting underused while 5 GHz is maxed out?
- Can your network handle the ongoing surge of connected devices and IoT in your densest spaces?
- Are there areas in your venue where a standard ceiling-mount AP simply doesn’t work?
Designed for Precision Coverage and Dense Client Areas

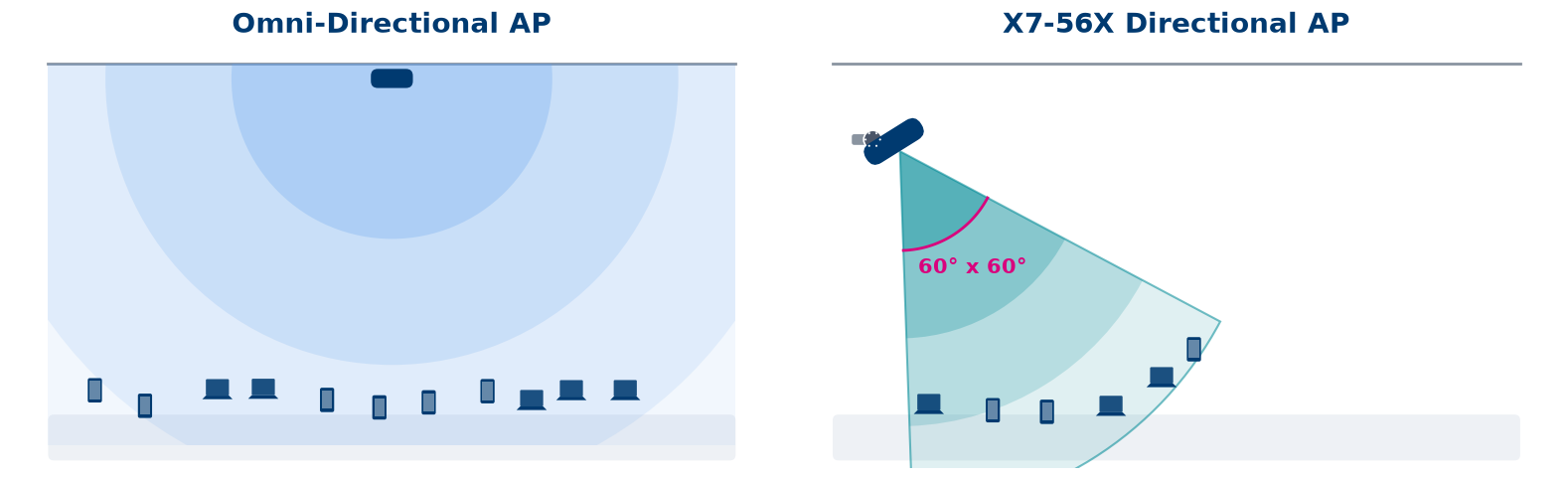

The X7-56X is built on the same proven tri-radio platform as the X7-55X, with one critical difference: a focused, high-gain directional antenna in place of an omni pattern.
- Tri-radio, tri-band design: 2.4 GHz + 5 GHz + a software-definable third radio (5 GHz or 6 GHz)
- Up to 4×4 MU-MIMO, 4 spatial streams
- 60° x 60° directional antenna for precision coverage aimed exactly where it’s needed
- Up to ~17.9 Gbps aggregate air rate across all three bands
- Up to 1,280 clients per AP
- Full Wi-Fi 7 technology: 320 MHz channels, 4K-QAM, Multi-Link Operation (MLO)
- Air Cleaner technology for high-density RF optimization
- Built-in IoT radio (BLE 5.1 or 802.15.4) with Zigbee, Matter, and Thread support
Precision Without the Complexity

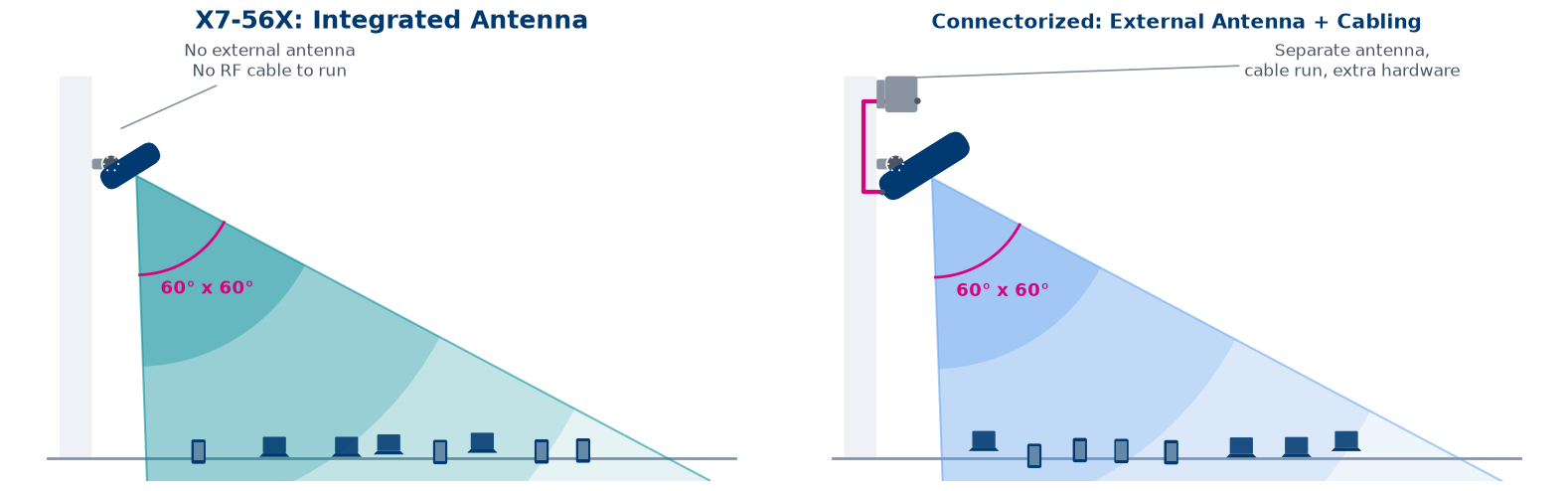

Directive coverage isn’t a new idea; it’s usually solved with a connectorized AP, external antennas, and a run of RF cabling. Connectorized approaches remain useful in some deployments, but they can introduce additional design, cabling, mounting, and maintenance complexity, turning a simple install into a project: selecting the right antenna, running cable, tuning gain, and mounting hardware that’s rarely small.
The X7-56X integrates the directional antenna into the AP itself, so there’s no external antenna to select, no RF cable to run, and no extra hardware to mount and maintain.
The X7-56X gets there differently. You get aimed, high-density coverage with a familiar X7 installation model but without the added complexity of external antennas and RF cabling.
- Multi-functional mount system included: wall, ceiling, T-bar, or electrical junction box
- Optional articulated bracket (AX-X7-DBRKT-WW): aim the AP up to ±60° with 2° precision, no additional tools required
- MarketApps Installer for a simple, traceable install, a web app with no download or install required
- AI-based Assurance in cnMaestro X to keep the deployment optimized after install
In the field, this is the difference between a foyer with a 40-foot (13m) ceiling where a standard AP can’t even be mounted, and one where an X7-56X on a wall bracket, angled down into the space, delivers the coverage the location actually needs.
Built for Where Wi-Fi Gets Hardest
Not every AP is right for every environment. The X7-56X complements the rest of the X7 family in deployments that need surgical, aimed coverage: atriums with impossible ceilings, loading dock aisles, arena bowls, and more. Everywhere else, the X7-35X, X7-53X, and X7-55X support more general-purpose Wi-Fi applications.
The X7-56X can help:
- Large public venues: Improving capacity in concourses, exhibition aisles, seating areas, and transportation hubs.
- Education: Supporting dense lecture halls, auditoriums, gyms, libraries, and performance spaces.
- Industrial and logistics: Delivering targeted coverage down warehouse aisles, loading bays, mezzanines, and logistics areas.
- Hospitality: Improving guest and event connectivity in ballrooms, atriums and lobbies, meeting rooms, and convention spaces.
These are just a few examples of the hard-to-serve spaces where directional Wi-Fi 7 coverage can make a meaningful difference.
Designed to Reduce Deployment Cost and Complexity
An integrated directional antenna avoids the added cost and potential failure points of external antennas and RF cabling. The tool-less aiming adjustment isn’t just an install-time convenience: it also makes it easy to re-tune coverage later as a venue’s layout or usage changes, without a specialist or special tools.
One Network. Unified Management.
The X7-56X is part of Cambium’s ONE Network (Wi-Fi, switching, firewalls, SD-WAN, fixed wireless, and fiber), all managed from a single cnMaestro cloud console. That means the same unified management your team already uses for the rest of the X7 family extends to the X7-56X, with no new platform to learn. cnMaestro X Assurance brings AI-based analytics that move network operations from reactive to proactive SLA management.
Key Takeaways
- Purpose-built for extremes — The X7-56X targets density and RF conditions beyond what the X7-55X's omni coverage is designed for
- Integrated directional antenna — 60° x 60° high-gain coverage with no external antenna or RF cabling to install
- Full Wi-Fi 7 performance — Up to ~17.9 Gbps aggregate air rate, 4×4 MU-MIMO, 320 MHz channels, and MLO
- Tool-less aiming — The optional articulated bracket adjusts up to ±60° with 2° precision, no specialist required
- One console — Managed alongside the rest of the X7 family and Cambium's ONE Network in cnMaestro
Closing
High-density Wi-Fi used to be an edge case. Today it is increasingly common, and standard APs are just not built to keep up. The X7-56X gives you a purpose-built answer for challenging RF spaces, without adding a new platform, a new install process, or a complex bill of materials to manage.
The X7-56X, along with its optional articulated mounting bracket, is shipping now.
Explore the X7 Series to learn how Cambium is expanding enterprise Wi-Fi 7 for mainstream, high-density, and hard-to-cover environments.
Watch the X7-56X unboxing video and visit the product page for technical details, mounting options, and deployment guidance.
