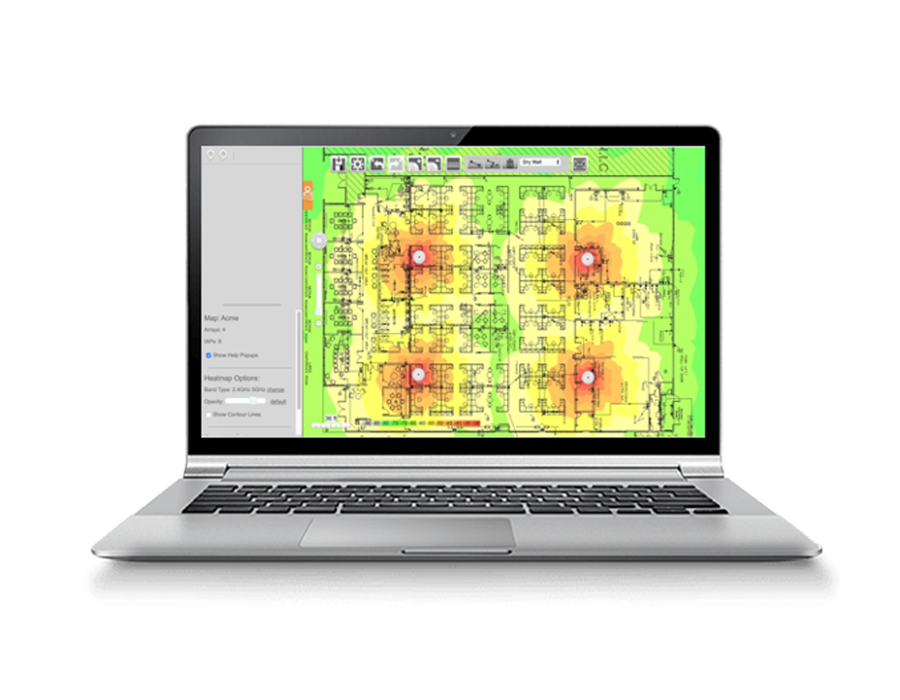

Wi-Fi Designer is a free tool that helps you design a strong Wi-Fi network for your specific needs. Upload your floor plan or draw it in the app, choose wall materials, and position access points to see how well the signal will cover your space. You can even adjust settings and see the impact. Finally, generate heat maps and a shopping list to easily set up your network.
Design an effective Wi-Fi network that meets user demand and works in your unique environment with our free Wi-Fi Design network tool. Wi-Fi Designer is an intuitive predictive heat-map tool.
- Upload your floor plan or draw it directly in the application
- Choose different wall materials to see the effect on RF coverage
- Place Cambium Networks APs on the floor plan to visualize coverage
- Change RF characteristics of APs to see the impact
- Generate and email final heat maps and bill of materials
- Watch video tutorial
Wi-Fi Designer 4.0.0
- Ability to export a Bill of Materials (BOM) for one or more maps
- New contour option displays the contour for the selected RSSI for all bands
- Ability to import maps from XMS-Enterprise 8.4.2 or later
- Improved application performance
- New User Interface
- Updated icons and color scheme
- New map tree
- Supports distinct folders and maps
- Supports right-click context menu
- Collapsible accordion side panel
- Change radio power/band settings from a single dialog
- Email maps selected from a tree either individually or by folder(s)
![](https://www.cambiumnetworks.com/wp-content/uploads/Wi-Fi-Designer-4.0.0-screen-1024x586.png)
Learn about the importance of Wi-Fi design for Wi-Fi 6E
Cambium Networks’ Wi-Fi Designer allows you to design a network that meets user demand and works in your unique environment.
