PMP 450 – The Ultimate in Point-to-Multipoint Performance
The PMP 450 platform provides ultra-high performance and cost-effective, fixed wireless broadband connectivity for serious network operators of all sizes.
In addition to a highly evolved feature set including GPS synchronization and advanced scheduling algorithms, the PMP 450 platform also features groundbreaking cnMedusa™ technology. cnMedusa provides massive Multi-User MIMO (Multiple-Input, Multiple-Output) capability in a cost-effective PMP solution. This truly leading-edge innovation utilizes not only nearly infinite beamforming patterns in both the uplink and downlink but massive MU-MIMO in each direction as well. Uplink MU-MIMO is something that no standards-based protocol supports today and is a unique feature for the fixed wireless industry. cnMedusa increases capacity per sector by allowing simultaneous data transfer to multiple subscriber modules (SM) within a sector. cnMedusa technology is available on the PMP 450m Access Points (AP) for the 5 GHz and 3 GHz bands around the globe, and it is certified for use in the new CBRS (U.S.) spectrum.
Industry’s flagship PtMP product
Ultimate in scalability & capacity
Extensive feature set including GPS Syncronization for frequency re-use
Versatile platform for wide ranging applications
#1 choice for large and growing network operators
In addition to 5 GHz and 3 GHz, the PMP 450 platform is also available in the 900 MHz, 2.4 GHz unlicensed bands as well as 4.9 GHz. Cambium Networks continues to introduce new PMP 450 hardware models including updated SMs and APs including purpose-built micropop solutions, connectorized and integrated-antenna 2×2 solutions, and point-to-point radios. Because of the software-defined nature of the PMP 450 platform (which is built on an FPGA), innovation and advancement of the platform happens nearly continuously, bringing new features, enhancements and performance with every software release.
The PMP 450 is the choice of serious operators around the globe and enables service providers to deliver higher throughput packages to more subscribers than any competing solution.
PMP 450m Access Point with cnMedusa Technology
The PMP 450m AP is one of the most scalable, highest-capacity and spectrally efficient APs in the industry. cnMedusa is a first-of-its-kind technology in a fixed wireless broadband access platform. The 450m utilizes MU-MIMO technology in a cost-effective solution. The implementation of MU-MIMO coupled with beamforming technology delivers groundbreaking spectral efficiency and outstanding performance in high-interference environments.
“What really sets the Medusa apart is that its pushing almost a Gig capacity and that’s just super spectrally efficient. It’s amazing to see how this product has flipped our industry on its head in terms of allowing us to catch up and surpass a lot of the incumbent providers out there because it does allow you to provide these massive, massive services.” – Nathan Stooke, CEO of Wisper Internet
PMP 450m Features
CNMEDUSA MASSIVE MU-MIMO
Combining Adaptive Beamforming and multiple RF chains can result in more than 4X total capacity compared to the standard 2x2 450i AP.
MULTIPLE RF CHAINS
14 x 14 Multi-user MIMO system on the 5 GHz model allows simultaneous communication to up to seven SMs. 8 x 8 Multi-user MIMO system on the 3 GHz model allows simultaneous communication to up to four SMs.
INTEGRATED 90° SECTOR ANTENNA ARRAY
Leading Edge antenna innovation brings Smart Beamforming to the 450 platform, ZERO RF cables to connect or weatherproof.
INDUSTRY-LEADING SPECTRAL EFFICIENCY
PMP 450m 5 GHz delivers >500 Mbps actual throughput in a 20 MHz channel (20+ bps/Hz, and over 40 bps/Hz when deployed in frequency re-use configurations).
To learn more about cnMedusa technology and the PMP 450m please see the white paper cnMedusa Technology Solution Paper. PMP 450m Access Points are compatible with all 5 GHz and 3 GHz subscriber modules including 450b, 450i, and legacy 450).
cnMedusa™technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying…
PMP 450 2×2 Access Points
The PMP 450 platform includes a variety of 2×2 MIMO APs ideal for applications where the scalability of the 450m (cnMedusa) is not required. Built upon advanced FPGA & SoC architecture, PMP 450 APs utilize Cambium Networks’ proprietary MAC / scheduling algorithm to enable highly efficient use of limited spectrum and maximum bandwidth allocation, supporting large numbers of subscribers per sector with minimal latency. Frequency re-use via GPS synchronization allows for efficient spectrum re-use throughout the network. PMP 450 APs, and the PMP 450 platform in general, offer a vast feature set including extensive L2 management capabilities, highly configurable channel width & spacing, and a host of other parameters.
The PMP 450i access point include ultra-wide band support for the entire 4.9-5 GHz and 3 GHz bands. The 450i also features dynamic interference filtering, and rugged metal enclosures designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments. PMP 450i Access Points in 3 GHz and 5 GHz are available in two form factors; either Integrated with 90° high performance Sector antenna or connectorized for external antenna.
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is…

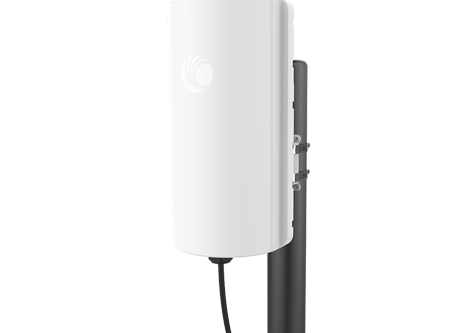

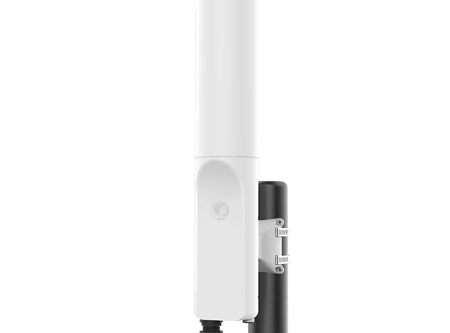

PMP 450 MicroPoP Fixed Wireless Access Points
The 450 platform adds another tool to more completely connect hard-to-reach subscribers with the affordable MicroPoP Fixed Wireless Access Point. The same purpose-built, software-defined radio technology as in other 450 platform products, this addition can help “fill in” gaps in an existing network, or extend coverage to areas that are not economically feasible with larger or traditional Access Points. Available with varying antenna options, an omnidirectional, a sector, or a connectorized version, this radio can suit the needs of many use cases in an affordable way
The Cambium Networks 450 platform adds another tool to more completely connect hard-to-reach subscribers with the affordable MicroPOP Access Point.
PMP 450 Subscriber Modules (SM)
The PMP 450 platform includes a variety of SMs suited for any application. Each of the SM models are compatible with all PMP 450 APs (450m, 450i, and 450) within their designated frequency range.

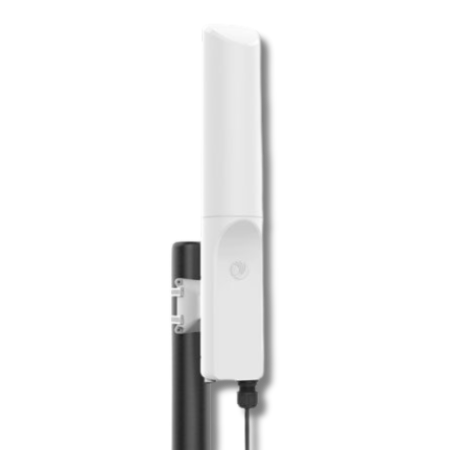

PMP 450b (5 GHz and 3 GHz)
450b SMs are the most popular choice for service providers due to their cost-effectiveness and easy-to-install form factors. 450b SMs offer wideband support, gigabit Ethernet POE and advanced processing capability. 450b SMs are available for 5 GHz and 3 GHz.*
The PMP 450b Subscriber Module supports frequencies from 4.9 – 5.925 GHz and provides 300 Mbps aggregate throughput in a…
450i SMs are the ideal choice for industrial and critical infrastructure applications. The ultra-wide band 450i features dynamic interference filtering, IP-66/67 metallic enclosure, and multifunction AUX port. 450i SMs are available for 5 GHz and 3 GHz in connectorized or integrated flat panel antenna form factors.*
The ultra-wide band 450i features dynamic interference filtering, IP-66/67 enclosure, and multifunction AUX port. It is available as Subscriber Module,…
PMP 450 SM
Available for 2.4 GHz, 3 GHz, and 900 MHz the PMP 450 SM supports tiered service models. Software defined upgrades allow throughput from 4 Mbps to 100 Mbps. Range can be extended with the use of optional offset reflectors. The 3 GHz model is also available with the integrated high-gain flat panel antenna and the 900 MHz model is connectorized.*
