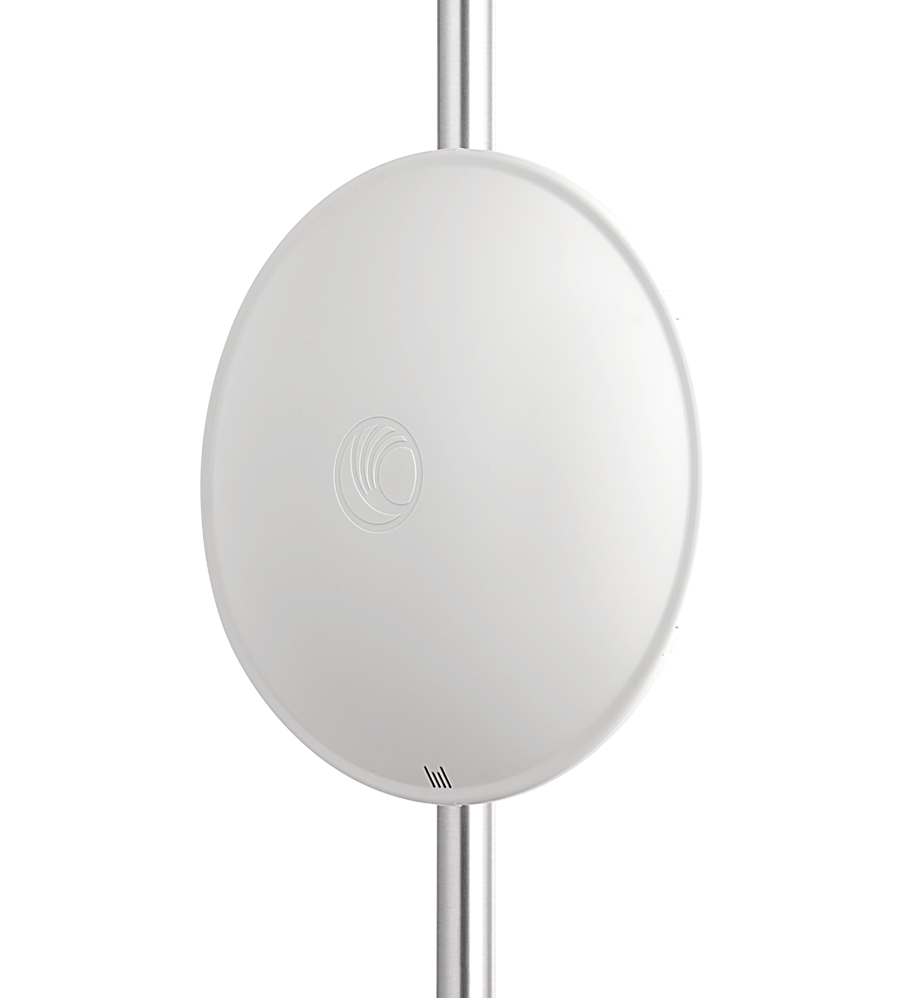

Force 200 2.4 GHz

Specifications

SPECTRUM

Channel Spacing
Configurable on 5 MHz increments
Frequency Range
2.4 GHz Model: 2402 – 2472 MHz
Channel Width
5 | 10 | 20 | 40 MHz

INTERFACE

MAC (Media Access Control) Layer
Cambium Proprietary
Physical Layer
2x2 MIMO/OFDM
Ethernet Interfaced
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used
IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management
HTTPs, SNMPv2c, SSH
VLAN
802.1Q with 802.1p priority

PERFORMANCE

ARQ
Yes
Nominal Receive Sensitivity (w/FEC) @200MHz Channel
MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel
MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range
-15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)

PHYSICAL

Surge Suppression
1 Joule Integrated
Environmental
IP55
Temperature
-30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
Weight
2.4 GHz Model: 2.8 kg (6.2 lbs)
Wind Survival
145 km/hour (90 mi/hour)
Dimensions (Dia x Depth)
47 cm x 28 cm (18.5 in x 11.2 in)
Pole Diameter Range
6.4 cm - 7.6 cm (2.5 in - 3 in)
Power Consumption
10 W Maximum, 5 W Typical
Input Voltage
10 to 30 V

SECURITY

Encryption
128-bit AES (CCMP mode)

CERTIFICATIONS

FCCID
2.4 GHz: Z8H80FT0019
Industry Canada Cert
2.4 GHz: 109W-0019
