For high interference environments.

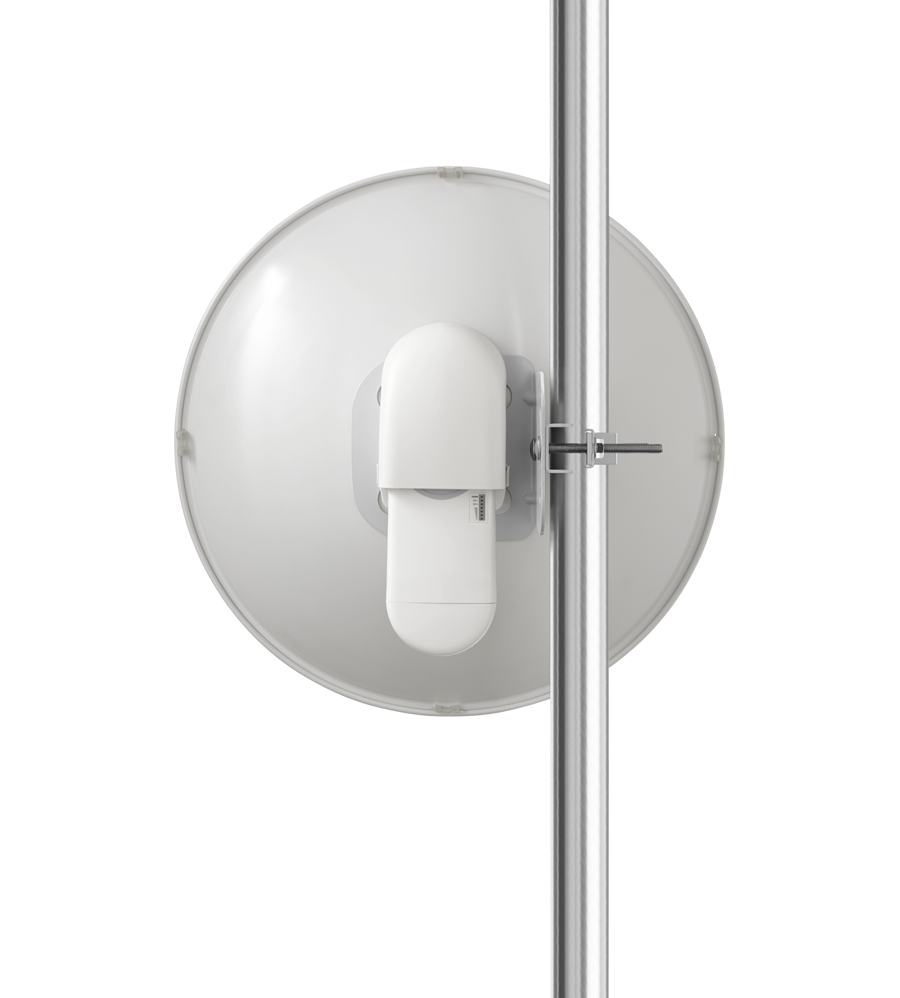

The ePMP™ Force 110 PTP high-gain integrated solution enhances range (25 dBi antenna with 30 dBm of transmit power) and improves throughput (up to 200 Mbps of real-user data). Force 110 PTP achieves 2 ms of round-trip latency and provides an 802.3af-compliant Gigabit Ethernet port. It is composed of the ePMP 1000 Connectorized Synchronized Radio and the ePMP 110A-525 Dish.

SPECTRUM

Channel Spacing

Configurable on 5 MHz increments

Frequency Range

5 GHz 5150 – 5970 MHz (exact frequencies as allowed by local regulations)

Channel Width

5, 10, 20 or 40 MHz

INTERFACE

MAC (Media Access Control) Layer

Cambium Proprietary

Physical Layer

2x2 MIMO/OFDM

Ethernet Interference

100/1000 BaseT, rate auto negotiated (802.3af compliant)

Protocols Used

IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH

Network Management

IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™

VLAN

802.1Q with 802.1p priority

PERFORMANCE

ARQ

Yes

Nominal Receive Sensitivity (w/ FEC) @ 20MHz Channel

MCSO = -93 dBm to MCS15 = -69 dBm (per branch)

Nominal Receive Sensitivity (w/ FEC) @ 40MHz Channel

MCS0 = -90 dBm to MCS15 = -66 dBm (per branch)

Modulation Levels (Adaptive)

MCS0 (BPSK) to MCS15 (64QAM 5/6)

Quality of Service

Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority

Transmit Power Range

17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)

PHYSICAL

Surge Suppression

1 Joule Integrated

Enviornmental

IP55

Temperature

-30°C to +60°C (-22°F to +140°F)

Weight

4.1 kg (9 lbs)

Wind Survival

145 km/hour (90 mi/hour)

Dimensions (Dia x Depth)

47 cm x 27 cm (18.5 in x 10.6 in)

Pole Diameter Range

5.7cm -7.6cm (2.25in - 3in)

Power Consumption

10 W Maximum, 7.5 W Typical

Input Voltage

23 to 56 V

SECURITY

Encryption

128-bit AES (CCMP mode)

CERTIFICATIONS

FCCID

5 GHz: Z8H89FT00012

Industry Canada Cert

5 GHz: 109W-00012

5 GHz: EN 302 502 v1.2.1 5 GHz: EN 301 893 v1.7.1
