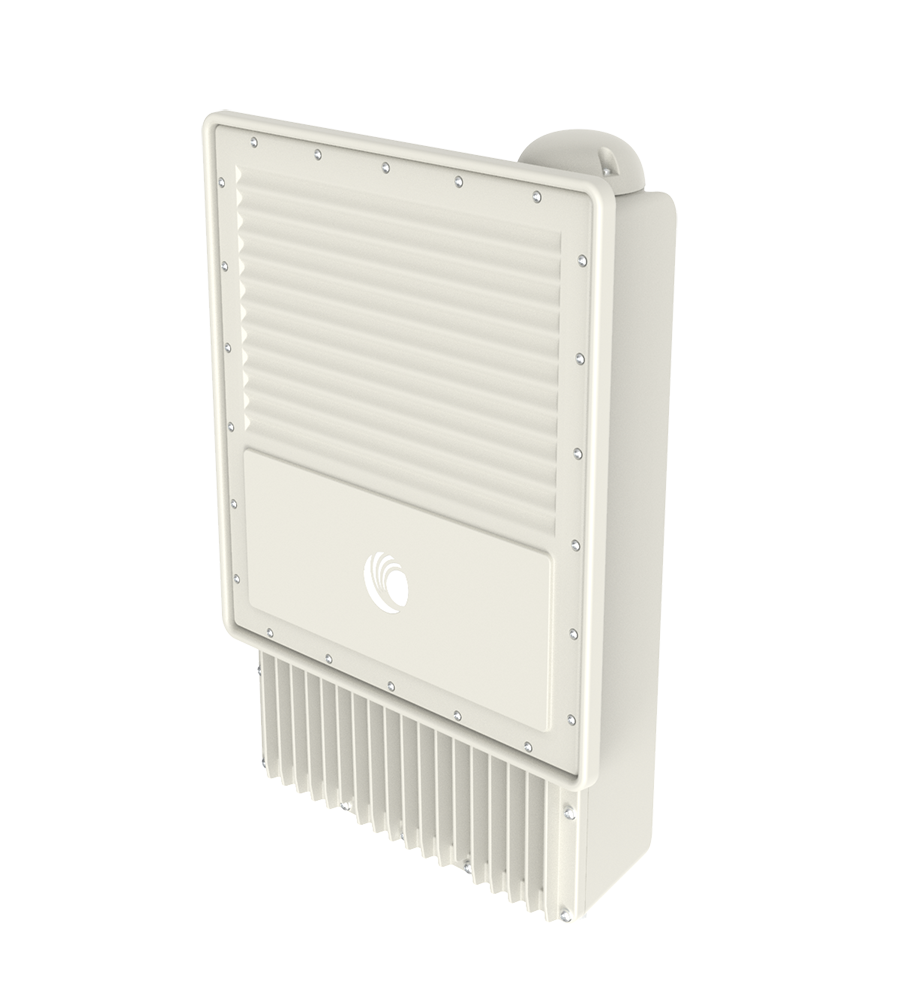

cnWave 5G Fixed Base Transceiver Station

The BTS integrates all functions of a gNB and network core in one box and is optimized for fixed wireless applications. Cambium Networks Software-Defined Radio technology enables future enhancements without requiring replacement or on-site dispatches.

Utilizing 112 MHz wide channels, cnWave 5G Fixed can provide over 3 Gbps of throughput. In addition, the system can support up to 240 subscribers per sector with a range up to 7 km.

Purpose-built for fixed wireless broadband, key features of the solution include:

  • 5G-NR protocol and frame structure – optimized for fixed wireless to maximize throughput and reduce complexity, but retain the ability to coexist with standards-based products
  • Multi-User MIMO – leveraging Cambium Networks’ industry-leading and field-proven cnMedusa™ Massive MU-MIMO technology that provides up to eight simultaneous data streams to CPEs
  • Beamforming – proven Cambium Networks technology to optimize performance and isolate noise
  • Automated provisioning – to streamline installation and provisioning

More Information:

Contact Us

BTS Features

  • 24, 26 and 28 GHz bands in a single SKU
    • n257 (26.50 – 29.50 GHz), 28 GHz, TDD​
    • n258 (24.25 – 27.50 GHz), 26 GHz, TDD​
    • n261 (27.50 – 28.35 GHz), 28 GHz US, TDD​
  • TDD only​
    • DL:UL supported TDD ratios are 4:3, 5:2 or 6:1​
    • Same channel for Uplink/Downlink, or​
    • Different channel for Uplink/Downlink (for easier deployment alongside FDD system)​
  • Support either V or H polarization (single SKU)​
    • Polarization is configurable independently for each sector
  • Support the following channel sizes​
    • 112 & 56 MHz (legacy)​
    • 100 & 50 MHz (5G allocation)​
  • Carrier aggregation​
    • Support up to 2 operating channels of the same Channel BW​
    • Channels may be non-adjacent​
    • Examples:​
      • Single 112 MHz carrier, with 8×8 MIMO per carrier, or​
      • Dual 112 MHz carrier, with 4×4 MIMO per carrier

cnWave 5G Fixed Base Transceiver Station

Specifications

SPECTRUM

Frequency Range
24.25 to 29.50 GHz
Channel Width
50**, 56, 100**, 112 MHz channels, up to 2 carriers**

INTERFACE

MAC (Media Access Control) Layer
5G NR Air Interface
Ethernet Interface
100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant), SFP support for 1 or 10 Gbps optical
Protocols Used
IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management
IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro™
VLAN
802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

PERFORMANCE

Maximum EIRP
+44 dBm
Hybrid ARQ
Yes, DL and UL
Maximum Deployment Range
Up to 5 km (3.2 miles)
Latency
1–2 ms, typical
TDD Synchronization
Embedded GPS, Sync-Over-Power or IEEE1588v2

SECURITY

Encryption
FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point)
